IGBT DC Rectifier 20V 500A 10KW Polarity Reverse Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Rectifier
IGBT DC Rectifier 20V 500A 10KW Polarity Reverse Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Rectifier
IGBT DC Rectifier 20V 500A 10KW Polarity Reverse Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Rectifier
IGBT DC Rectifier 20V 500A 10KW Polarity Reverse Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Rectifier
IGBT DC Rectifier 20V 500A 10KW Polarity Reverse Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Rectifier
IGBT DC Rectifier 20V 500A 10KW Polarity Reverse Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Rectifier
IGBT DC Rectifier 20V 500A 10KW Polarity Reverse Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Rectifier
IGBT DC Rectifier 20V 500A 10KW Polarity Reverse Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Rectifier

IGBT DC Rectifier 20V 500A 10KW Polarity Reverse Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Rectifier

FOB Reference Price: Get Latest Price
≥1 Sets
US $1800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
TANGLIN
Model Number:
TL-PR 20V/500A
Output Frequency:
20KHZ
Output Current:
0~500A
Product Name:
IGBT DC Rectifier 20V 500A 10KW Electroplating Rectifier
Color:
black
Cooling:
Forced Air Cooling
Size:
67.5*40*25cm
Application:
electroplaitng Laboratory, test, Motor & Controller Test
Protections:
Short Circuit Overtemp Overload Overvolt
Certification:
ISO9001 CE
Warranty:
1 year
Voltage Overshoot:
No overshoot, no voltage peak
MOQ:
1pcs

Quick Details

Input Voltage:
AC Input 380V 3phase
Output Voltage:
0~20V
Place of Origin:
Sichuan, China
Brand Name:
TANGLIN
Model Number:
TL-PR 20V/500A
Output Frequency:
20KHZ
Output Current:
0~500A
Product Name:
IGBT DC Rectifier 20V 500A 10KW Electroplating Rectifier
Color:
black
Cooling:
Forced Air Cooling
Size:
67.5*40*25cm
Application:
electroplaitng Laboratory, test, Motor & Controller Test
Protections:
Short Circuit Overtemp Overload Overvolt
Certification:
ISO9001 CE
Warranty:
1 year
Voltage Overshoot:
No overshoot, no voltage peak
MOQ:
1pcs
Products Description
Product Name
IGBT DC Rectifier 20V 500A 10KW Electroplating Galvanizing Plating Rectifier for Electrolysis Plating Machine Rectifier
Input voltage
AC Input 380V 3 Phase
Output DC current
0~500A continuously adjustable
Output DC voltage
0~20V continuously adjustable
Output Power
10kw
Switch
AC Switch CC/CV Switch Output Regulation ON/OFF Switch
Voltage stability
≤1%
Current stability
≤1%
Load Regulation
≤±1% FS
Cooling Mode
Forced Air Cooling & water cooling
Efficiency
≥90%
Workload
Full capacity operation, more than 1,000 meters above sea level,reduced load operation
Working condition
Ambient Temperature range -10 ℃ ~ 40 ℃,Less than 90% humidity(when ambient temperature is 20℃±5℃).

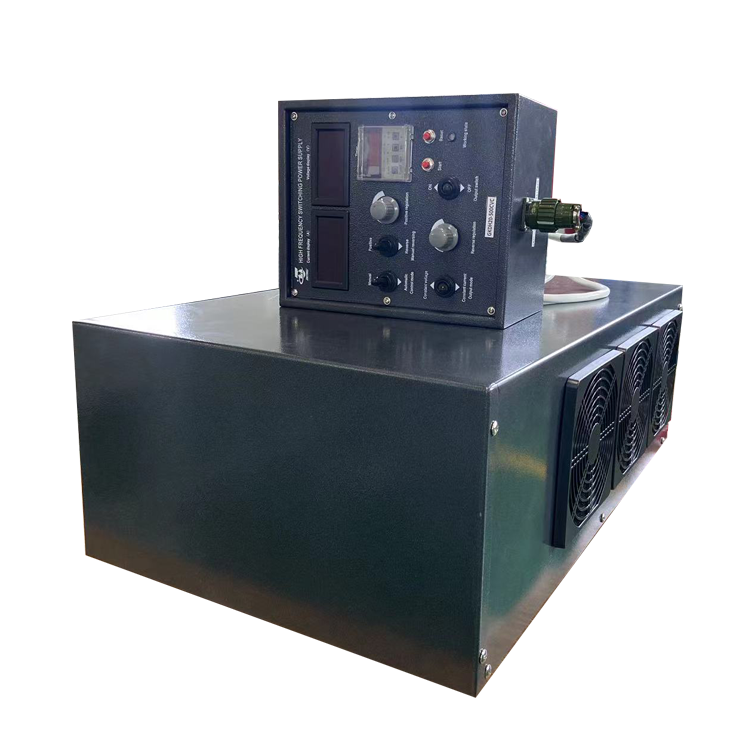

20V 500A 10KW Polarity Reverse Electroplating Galvanizing Rectifier
AC Input 380V 3phase
Remote control box
6 meter control wires
Forced air cooling
Manual & Automatic Resersing
With 4~20mA signal interface
Audible and visual alarm
Product size: 67.5*40*25cm
Net weight: 39.5kg
Support OEM&ODM
Factory Customization Production

Application

PCB and Semiconductors The technology shift from DC to pulse will have a massive impact on your productivity and profitability. New demands on PCB and Semiconductor manufacturing require precise technology. Hydrogen Production As DC power specialists, we work with you to define and implement the most efficient, reliable and economical electrical eco-system to optimise hydrogen generation, reduce the total cost of operation and the investment needed. Electrostatic Precipitators (ESPs) Industries that create air pollution in terms of particulate matter (PM), need to keep up with ever-increasing emission requirements. With our unique solutions, based on power supply upgrades, you can breathe new life into your electrostatic precipitator. General Metal Finishing Reducing your total cost of operation while meeting your output quality and uptime targets. Marine With a rectifier integrated into your ballast water management system, you are always in safe hands. The reliability and performance of our rectifiers are the product of our long maritime experience, commitment to quality, and relentless pursuit of innovation. Uninterruptible Power Systems When critical processes simply has to work and full availability is required, we have the solution for you. Our systems within uninterruptible power supply eliminates dangerous down time and secure critical functions.
