Quick Details
-
Brand Name:
-
Minghong
-
Model Number:
-
YK
-
Max. Current:
-
6A
-
Max. Working Pressure:
-
10Mpa
-
Product name:
-

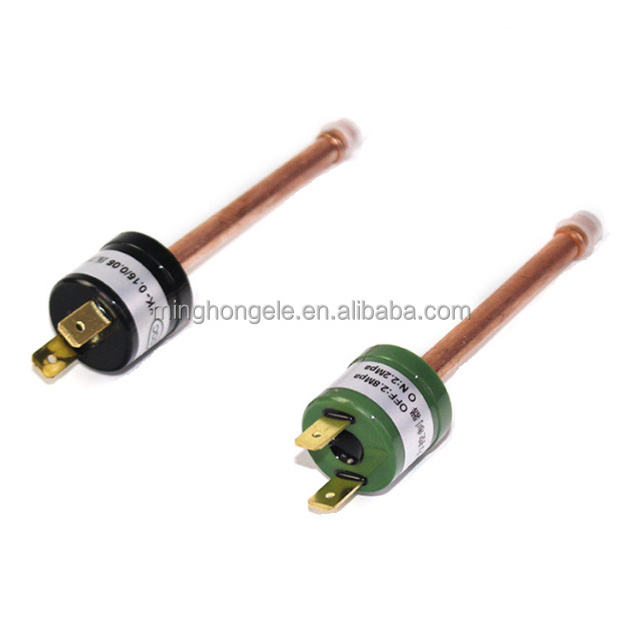

YK pressure switch
-
Type:
-
diaphragm
-
Pressure Range:
-
-0.1~+10MPA
-
Rated voltage:
-
220/240V
-
Rated current:
-
3A/6A
-
Protection rating:
-
IP54
-
Application:
-
pressure control
-
Connection:
-
nozzle tube
-
Thread:
-
1/4, 6.35mm
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Minghong
-
Model Number:
-
YK
-
Max. Current:
-
6A
-
Max. Working Pressure:
-
10Mpa
-
Product name:
-
YK pressure switch
-
Type:
-
diaphragm
-
Pressure Range:
-
-0.1~+10MPA
-
Rated voltage:
-
220/240V
-
Rated current:
-
3A/6A
-
Protection rating:
-
IP54
-
Application:
-
pressure control
-
Connection:
-
nozzle tube
-
Thread:
-
1/4, 6.35mm
-
Certification:
-
CE
Product Description
| contact form: NO (normally open) and NC (normally close) |
| pressure setting range: -0.1~+10MPA /-1bar~ +100BAR |
| rated voltage: 220V,110V |
| rated current: 3A / 6A |
| wire connection: nozzle tube, |
| install connection: 1/8, 1/4, 6.35MM, |
| max burst pressure: 32.5MPA |
| suitable medium: air, water, oil, liquid |
| working temperature: -20 ~ +80℃ |
| service llife: 100000 Times |
NC: normal closed, when air pressure up to a control level, the circuit break.
NO: normal open, when air pressure up to a control level, the circuit connect,
