Quick Details
-
Material:
-
Aluminum alloy
-
Certification:
-
CE, FCC, ROHS
-
Product Name:
-
outdoor smart lock
-
Color:
-
Silver, golden
-
Weight:
-
About 3.5kg
-
Size:
-
242*77*69mm
-
Unlock:
-
RF card, mechnical keys
-
Fit door thickness:
-
38~55mm
-
Working temperature:
-
-20°C~50°C
-
Warranty:
-
3 year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCSMARTS
-
Model Number:
-
JCEU12
-
Material:
-
Aluminum alloy
-
Certification:
-
CE, FCC, ROHS
-
Product Name:
-
outdoor smart lock
-
Color:
-
Silver, golden
-
Weight:
-
About 3.5kg
-
Size:
-
242*77*69mm
-
Unlock:
-
RF card, mechnical keys
-
Fit door thickness:
-
38~55mm
-
Working temperature:
-
-20°C~50°C
-
Warranty:
-
3 year

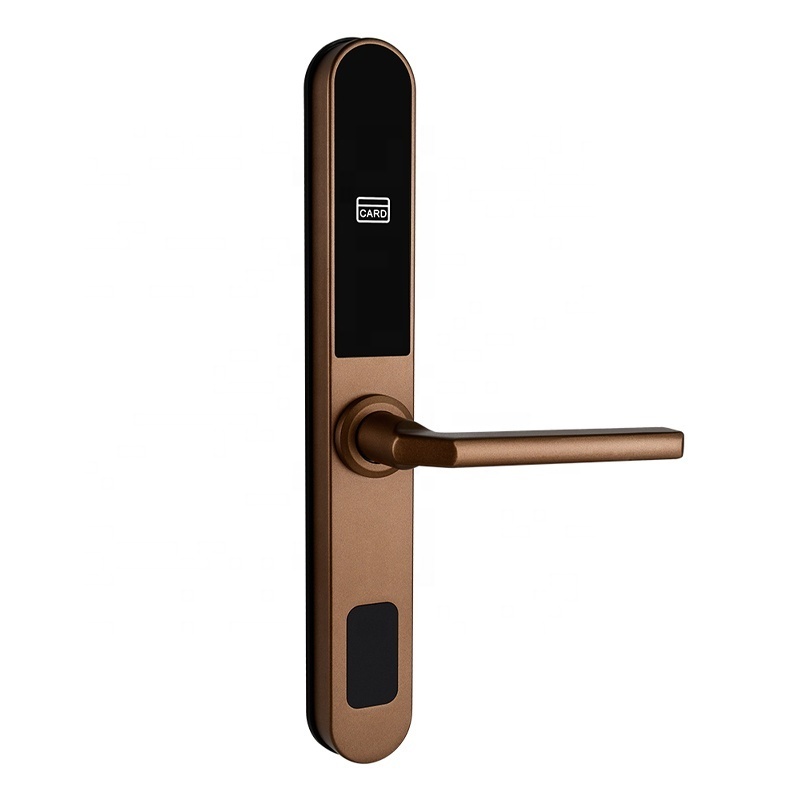

Outdoor Sliding Door Smart RFID Card Hotel Lock With 3585 Mortise
Product Description
Advantages:
1. USA standard 5-lock Tongue Structure Lock Core, hierarchical management;
2. Triple mute lock body;
3. Lock face has no artificial rivets and plastic parts
4. The board support anti-interference and error correction feature;
5. The circuit has been damp-proof and dust-proof processed before shipping;
6. The lock information will not loss when power off;
7. A clock inside the lock control the key card using time;
8, Anti-static support;
9, Low voltage warning;
10, Fit door thickness: 38-60 mm.
11, Fit door type: wooden door
2. Triple mute lock body;
3. Lock face has no artificial rivets and plastic parts
4. The board support anti-interference and error correction feature;
5. The circuit has been damp-proof and dust-proof processed before shipping;
6. The lock information will not loss when power off;
7. A clock inside the lock control the key card using time;
8, Anti-static support;
9, Low voltage warning;
10, Fit door thickness: 38-60 mm.
11, Fit door type: wooden door
Specification:
Material: Aluminum alloy
Unlock: RF card and keys
Reading card distance: ≤3cm
Working temperature: -20℃-70℃
Card type: T5577 card and ID card
Unlock record: store latest 255pcs
Application: Hotel, office, home, school, villa etc
Reading card distance: ≤3cm
Working temperature: -20℃-70℃
Card type: T5577 card and ID card
Unlock record: store latest 255pcs
Application: Hotel, office, home, school, villa etc
Lock Mortise Size:
Lock Chip Available:
-- For now, there are 4 kinds of lock chips in the market. All of them can be used on this lock.
-- You can choose the lock chip according to your needs.
-- The No.2 Elock chip is the default;
-- The No. 3 and No. 4 lock chip are for the online hotel system,
if you want to know more about them, please feel free to contact us.
-- You can choose the lock chip according to your needs.
-- The No.2 Elock chip is the default;
-- The No. 3 and No. 4 lock chip are for the online hotel system,
if you want to know more about them, please feel free to contact us.
Hotel Lock System
1, Elock Hotel Lock System:
The Elock system is the offline hotel management system, with the PC software to manage the locks and cards.
|
Basic Needs for Hotel Lock System
|
|
|
|
|
||||
|
Software
|
The software support English and Thai languages for now.
And we are delovping the Russian, Spanish, Portuguese and Vietnamese. Need more time. We can provide the Win32 Dynamic Library for you to integrate with other software. |
|
|
|
||||
|
Card Encoder
|
It is necessary for hotel lock system, which is used to issue room card;
It support 2 or more encoders work at the same time, If your Reception has 2 or more computers, this one is perfect for your project. |
|
|
|
||||
|
Handset PDA
|
This one is optional, but helpful. Suggest to take 1 for 1 hotel project;
You can set all room information on PC first, then download all the room information to the handset PDA at once, and then install one by one, easy for lock installation; Also it can Proofread the lock time, Operate check-out, read door opening records, upgrade lock firmware, Synchronize PC software information; |
|
|
|
||||
|
Door Lock
|
Please choose the door lock according to your door type and contact us to double confirm the installtion details;
|
|
|
|
||||
|
RF Card
|
The card is necessary, which is not included in the lock standard packing list.
The card can be T5557 card or M1 card; The default is T5557 card; The default card is white card; If you need printing images/ logo/ hotel information on card, no problem!!! |
|
|
|
||||
|
Optional Needs for Hotel Lock System
|
|
|
|
|
||||
|
Energy Saving Switch
|
It is optional, but helpful to save power.
When guest insert the room card, then the room will get electricity. |
|
|
|
||||
|
Public Door Access Reader
|
It is optional;
With the public door access reader, the guests room card can unlock the gate public door; |
|
|
|
||||
|
Elevator controller
|
It is optional, for hotel security, some hotels will use it;
The guests need to swipe the room card to active the elevator, without the card, the elevator will not active; |
|
|
|
||||
|
Other features
|
If you want one card with more features, like shopping card, dining card, bath card, please contact us.
|
|
|
|
||||
2, TThotel RFID Card Bluetooth Online System
The TThotel system is the web-management system. All lock information and guests information are stored at cloud. Need to keep the computer online all the time.
3, Online Hotel Lock System
All information are saved in the local server.
