Quick Details
-
Model Number:
-
TB-37
-
Max. Current:
-
15A
-
Battery life:
-
3 years (Lithium battery)
-
Rated Voltage:
-
AC 110-230V
-
Frequency:
-
50/60 Hz
-
Switch Capacity:
-
AC 250V 15A
-
Installation type:
-
Panel mounting
-
Time accuracy:
-
≤±2S/day (25℃)
-
Program:
-
Daily program
-
Set-up times:
-
96Times
-
Dimension:
-
72*72*53mm
-
Ambient Temperature:
-
-10℃~+50℃
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Elsine
-
Model Number:
-
TB-37
-
Max. Current:
-
15A
-
Battery life:
-
3 years (Lithium battery)
-
Rated Voltage:
-
AC 110-230V
-
Frequency:
-
50/60 Hz
-
Switch Capacity:
-
AC 250V 15A
-
Installation type:
-
Panel mounting
-
Time accuracy:
-
≤±2S/day (25℃)
-
Program:
-
Daily program
-
Set-up times:
-
96Times
-
Dimension:
-
72*72*53mm
-
Ambient Temperature:
-
-10℃~+50℃
-
Certification:
-
CE

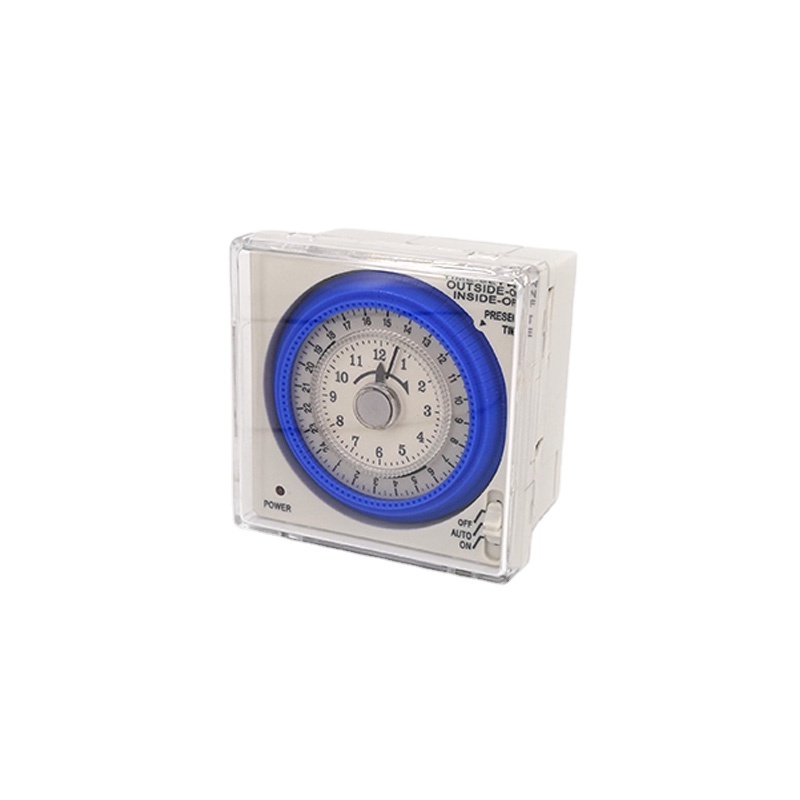

Super timer switch TB-37 daily program mechanical programmable timer electric delay timer
TB3 7 Mechanical Time Switch is suit for water heater, Water dispensers, Street lamp, Staircase lamp, Advertising lamp boxes, Breed aquatics, Irrigate, Office power auto control, in anywhere need time control in home or industrial, etc.
It ’ s easy to operate, and widely used in controlling system, such as mechanical equipments, advertisements lamp box, breeding, irrigation,Lighting, water heater,agriculture facilities, broadcasting equipment, home appliance, etc.
BASIC FEATURES
-
With battery
-
96 switching segments
-
Quartz controlled
-
Shortest switching time: 15 minutes
TECHNICAL DATA
|
Rated voltage |
110VAC, 220VAC |
||
|
Voltage tolerance |
85-120VAC , 170-240VA |
||
|
Frequency |
50/60HZ(common use) |
||
|
Power consumption |
1.5W |
||
|
Drive method |
Quartz controlled current frequency |
||
|
Cycle |
24 hours |
||
|
L oad |
Circuit |
Separate circuit (voltage is not applied to the load circuit) |
|
|
Switch construction |
SPST |
||
|
Manual ON/OFF |
ON/AUTO/OFF switch |
||
|
Capacity |
Resistive load |
15A |
|
|
Incandescent lamp |
10A |
||
|
Inductive(cos0=0.7) |
12A |
||
|
Motor(cos0=0.7) |
110VAC 7500W, 220VAC 1500W |
||
|
S etting |
Present time setting |
Turn the minute control knob in the center clock |
|
|
ON/OFF program setting |
15 Minutes |
||
|
Minimum unit |
15 Minutes |
||
|
Minimum interval |
15 Minutes |
||
|
No.of ON/OFF operations |
96 operations |
||
|
Working reserve time |
100 hours |
||
|
Ambient temperature |
-10℃~+50℃ |
||
|
Ambient humidity |
Max.85% |
||
|
W eight |
190g |
||
PARTS IDENTIFICATION
INSTALLATION METHOD
DIMENSIONS SIZE
STAND WORKSHOP
Q 1. What's the payment term?
A. We accept T/T, L/C, Western Union, Cash
Q 2. What's the delivery time ?
A. Usually it would take about 25 days for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
Q 4. What kind of product quality your factory offer?
A. We offer most competitive prices with best quality, copper coil with silver contact.
Q 5. Do you accept OEM and ODM business?
A. We do,for OEM service please send us your authorization, also your quantity should large enough.
Q 6. Could you offer certificate of origin?
A. We can prepare relative documents to foreign affairs office or other office to apply the certificate.
Q7. What kind of certificate you have ?
A. Our company already achieve ISO, and for products, we have CE, SEMKO,CB, BSI, GS, TUV, VDE.
