Inkbird ITC-310T solar water heater temperature controller thermostat switch

Inkbird ITC-310T solar water heater temperature controller thermostat switch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $40

≥100 Pieces

US $35

≥1000 Pieces

US $30

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: ITC-310T

Product name:: solar water heater temperature controller

Type:: HVAC Systems

Certificate:: CE FCC ROHS

Power supply:: 50/60Hz

Feature:: Programmable

Function:: Temperature Monitor

Resolution:: 0.1C/0.1F

Output:: Relay Contacts

Weight:: 0.45

Quick Details

Warranty:: 1 years, 1Year

Place of Origin:: Guangdong, China

Brand Name:: Inkbird

Model Number:: ITC-310T

Product name:: solar water heater temperature controller

Type:: HVAC Systems

Certificate:: CE FCC ROHS

Power supply:: 50/60Hz

Feature:: Programmable

Function:: Temperature Monitor

Resolution:: 0.1C/0.1F

Output:: Relay Contacts

Weight:: 0.45

Product Description

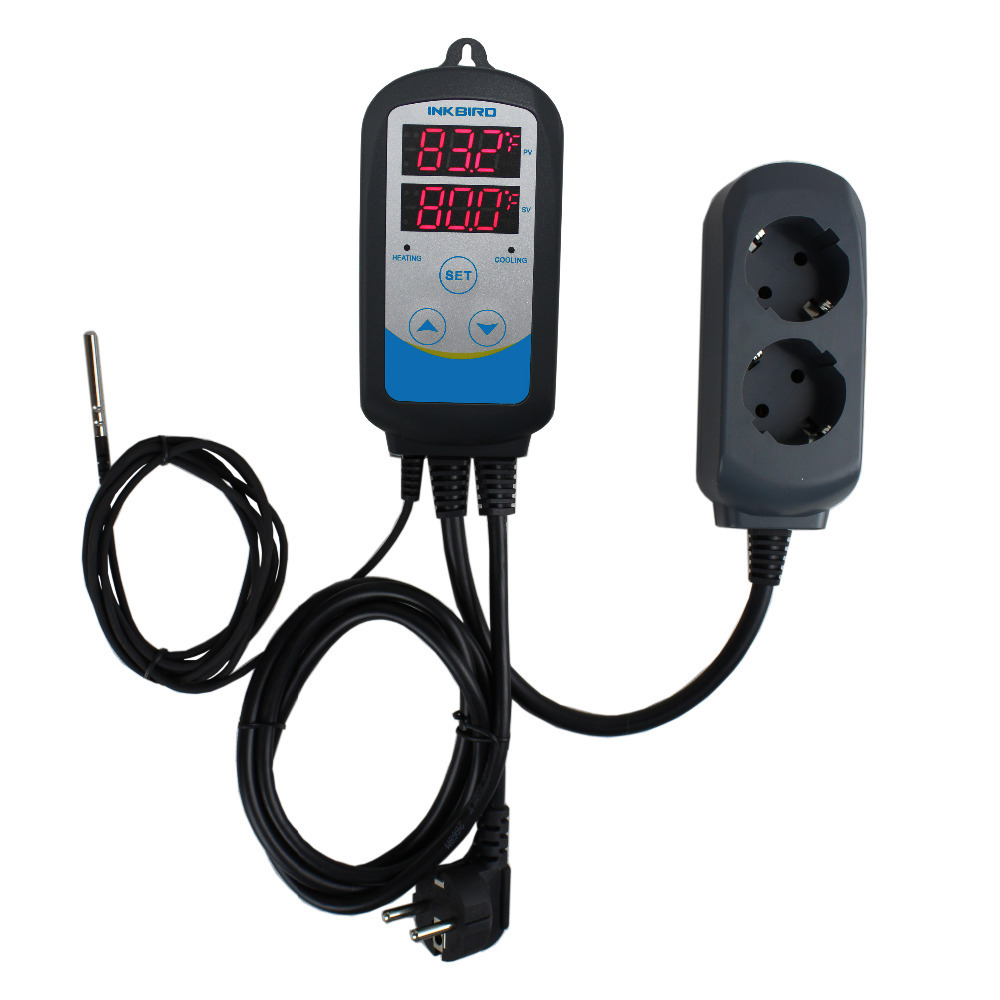

What is ITC-310T?

ITC-310T temperature controller is dual-relay, programmable outlet thermostat, which can auto-execute to control 6 periods times with different temperatures based on its timer function.

This product has Plug and Play design with dual relay, be able to connect with refrigeration and heating equipment easily to realize ideal temperature control. It’s equipped with dual LED display, and offers display options of Centigrade and Fahrenheit, enabling more humanized temperature control. With large output power 1,200W (110V) /2,200W (220V), it’s suitable for most applications.

ITC-310T is designed with compressor delay protection for refrigeration, high and low temperature alarm, and sensor fault alarm, which makes the temperature controller more safe and reliable. Functions such as temperature calibration, separately set differential for refrigeration and heating, enable more accurate temperature control.

Main Featrures

* Plug and play design, easy to use;

* Programmable, 6 temperatures in 6 periods of time;
* Dual relay output, be able to connect with refrigeration and heating equipment at the same time;
* Support reading with Centigrade or Fahrenheit unit;
* Maximum output load: 1200W(110V) / 2200W(220V);
* Dual display window, be able to display measured temperature and set temperature at the same time;
* Temperature calibration;
* Compressor delay protection for refrigeration control;
* High and low temperature alarms are available;
* Over-temperature and sensor fault alarm;
* Heating/cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.

Specification

Temperature Control Range : -50~120 °C / -58~248 ° F	Temperature Resolution: 0.1 ° C / 0.1° F
Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-58~ 158° F)	Temperature Control Mode :On/Off Control, Heating and Cooling
Input Power: 100 ~240VAC, 50Hz/60Hz	Temperature Control Output: Max. 10A, 100V ~240V AC
Buzzer Alarm: High and Low Temperature Alarm	Sensor Type: NTC sensor (Including)
Sensor Length: 2m / 6.56ft	Input Power Cable Length: 1.5m (5ft)
Output Power Cable Length: 30cm (1ft)	Dimension Body: 140x68x33mm (5.5x2.7x1.3inch)
Socket: 85x42x24mm(3.3x1.7x1inch)	Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F
Storage Temperature: -20~ 60 ° C / -4~ 140 ° F	Humidity 20~85% (No Condensate)
Warranty: 1 Year

Applications

The ITC-310T is mainly used to control temperature during fermentation process of beer and wine brewing, also widely used in home brewing, aquarium, pet breeding, hatching, barbecue, boiler temperature control, geothermal temperature control, heating pump constant temperature cycle, strain culture fermentation, seed sprouting, electric heating, electric oven, over-temperature protection and automatic temperature control system of all kinds of electrical equipment, etc.

Package Content

*　1x ITC-310T temperature controller;
*　1x Manual

Note: This listing sensor's probe dimension is 50mm x 6mm. If you want 12" probe sensor, you can search on Amazon and buy one by ASIN: B01A6DIPFM or ASIN: B01A51OLR6.
