ENERPAC same FSM-series 14T Split Type Hydraulic Flange Spreaders and mechanical wedge spreaders

ENERPAC same FSM-series 14T Split Type Hydraulic Flange Spreaders and mechanical wedge spreaders

FOB Reference Price: Get Latest Price

≥1 Sets

US $950

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Tip Thickness:: 6mm

Type:: Integrated or split

Pressure:: 700bar

Warranty:: 12months

Material:: Steel Material

Packing:: Wooden Case Package

Weight:: 20kg

Quick Details

Product name:: Split Type Hydraulic Flange Spreaders

Max seperation force:: 14ton

Max seperatd distance:: 65mm

Tip Thickness:: 6mm

Type:: Integrated or split

Pressure:: 700bar

Warranty:: 12months

Material:: Steel Material

Packing:: Wooden Case Package

Weight:: 20kg

Products Description

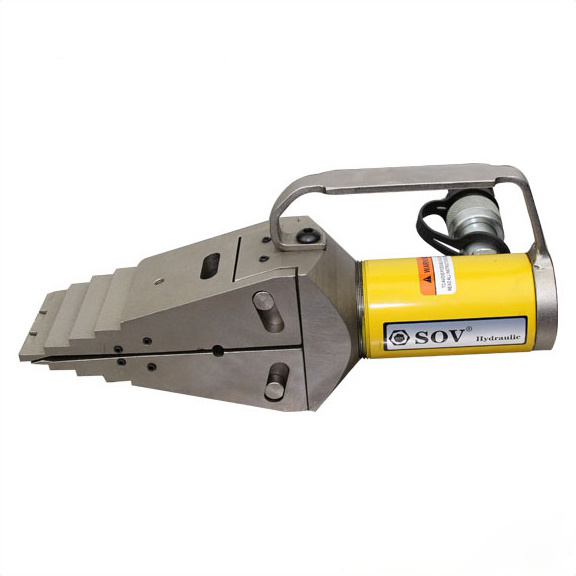

Split Type Hydraulic Flange Spreaders

The split type hydraulic flange spreaders widely apply to petrochemical, metallurgical, electric power, paper mills and other industries, which are the most secure and ideal special hydraulic tools for liquid, gas transmission pipeline maintenance The design of the first step with interlocking, makes flange spreaders' work safer and simpler.

Features

* Maximum spread can reach 65mm.

* The stepped blocks radius is 150mm, which can effectively get close to flange, so that each step can bear maximum load.

* The stepped blocks with forged alloy steel material, have longer life.

* Lightweight reinforced plastic steel handle design, convenient to carry.

* Unique interlocking structure, makes the spreader close to flange and avoid over spread when it is opende; and the hydraulic cylinder is automatic return when it is closed.

Details Images

PRODUCT SPECIFICATIONS

Item No	Max. Spreading Force (T)	Working Pressure (MPa)	Tip Thickness (MM)	Max Spreading Space (MM)
SOV-FSM-14T	14	70	6	65
