Quick Details
-
Product Name:
-
ZM410 UAV
-
Wheelbase:
-
1495mm
-
Spray width:
-
4 ~ 6m(depending on different crops)
-
Medicine box capacity:
-
10.5L
-
Work efficiency:
-
80acres / hour
-
Maximum effective takeoff weight:
-
26kg
-
Hover time:
-
18min (no load)
-
Working height:
-
1.5m ~ 3.5m
-
Maximum flight speed:
-
10M/s
-
Obstacle avoidance range:
-
2 ~ 20m
Quick Details
-
Weight (KG):
-
12
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Product Name:
-
ZM410 UAV
-
Wheelbase:
-
1495mm
-
Spray width:
-
4 ~ 6m(depending on different crops)
-
Medicine box capacity:
-
10.5L
-
Work efficiency:
-
80acres / hour
-
Maximum effective takeoff weight:
-
26kg
-
Hover time:
-
18min (no load)
-
Working height:
-
1.5m ~ 3.5m
-
Maximum flight speed:
-
10M/s
-
Obstacle avoidance range:
-
2 ~ 20m
Products Description
Introduction Of Driverless Pharmaceutical Sprayer Automatic Agricultural Flying Sprayer Drone Agriculture Spray With Camera Price

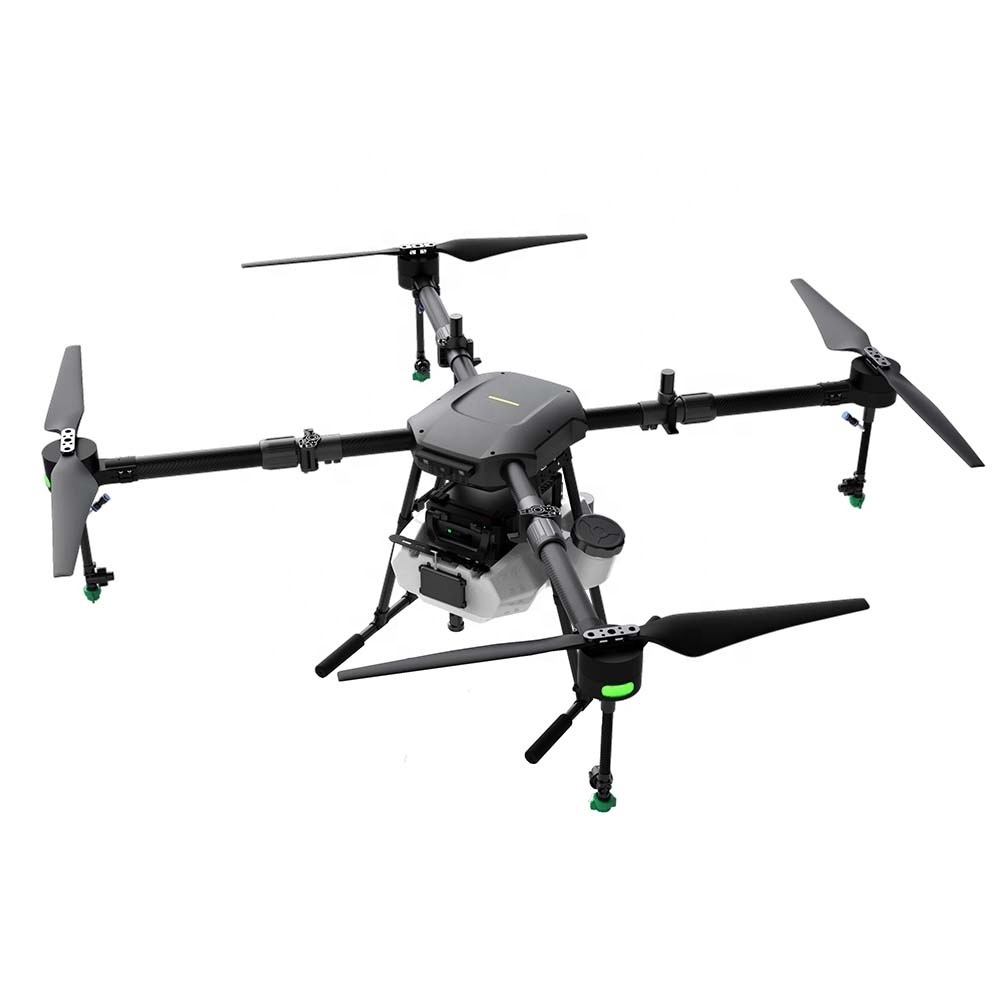

ZM410 plant protection drone introduction: It is equipped with plant protection flight control and agricultural intelligent data processing platform, as well as dual pump accurate metering spray system, combined with FPV, obstacle avoidance and other auxiliary operating systems, can achieve accurate plant protection operations, making plant protection operations simple and safe. Based on the second-generation flight control technology architecture, the new TiA series flight control system is safe and reliable, optimized for the plant protection industry, improves work efficiency, and realizes intelligent operation of drone plant protection.zmwm17
Product Paramenters
Parameters Of Driverless Pharmaceutical Sprayer Automatic Agricultural Flying Sprayer Drone Agriculture Spray With Camera Price
ZM410 plant protection drone technical parameters:
Wheelbase 1495mm (four axes)
Dimensions Expand: 1152*1152*630mm
Folding: 666.4*666.4*630mm
Spray width 4 ~ 6m (depending on different crops)
Medicine box capacity 10.5L
Operating efficiency 80 acres / hour
Machine weight 11.6kg (without battery)
Maximum effective takeoff weight 26k
Power battery 12S 14000mAh
Nozzle type High pressure fan nozzle
Atomized particles 130~250 μm (XR11001VS)
Flight parameter
Hover time 18min (no load)
10min (full load)
Working height 1.5m ~ 3.5m
Large flight angle 25° (attitude mode)
Large flight speed 10m/s (GPS mode)
Horizontal positioning accuracy Horizontal ± 1.0m Vertical ± 0.5m
Level ± 10cm Vertical ±10cm (using RTK)
Vertical ±0.1m (with radar enabled)
Imitation ground radar ranging accuracy 0.02m
Setting range 1 ~ 10m
Obstacle avoidance range 2 ~ 20m
