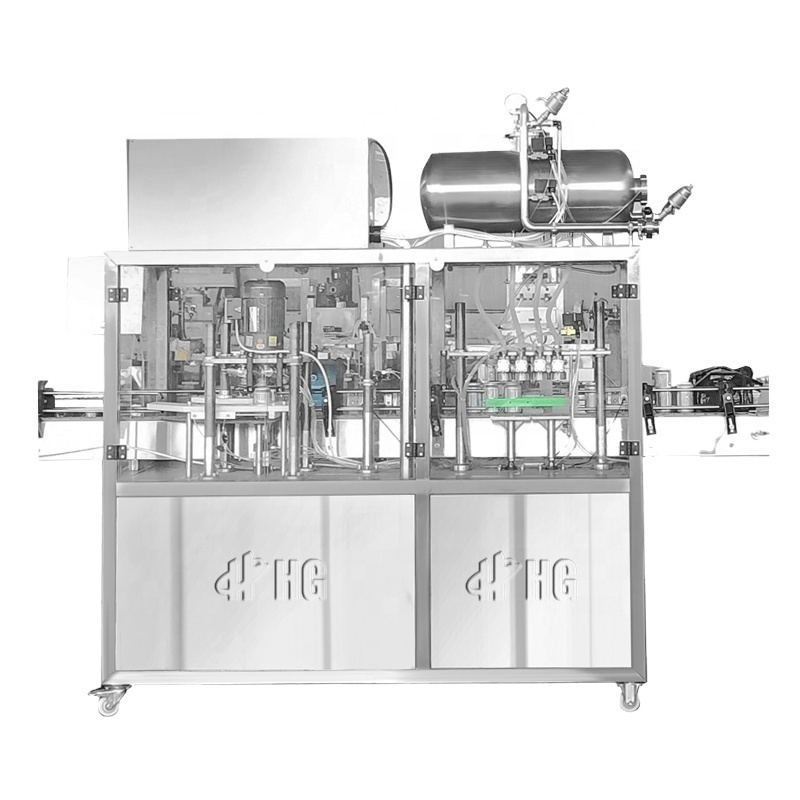

12-1 Fully Automatic Can Filling Machine
This 12-1 type fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±6mm
-
Voltage:
-
Customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Dimension(L*W*H):
-
3400*1500*2100mm
-
Weight:
-
800 KG
-
Model:
-
HG4-1
-
Filling nozzle:
-
4
-
Sealing nozzle:
-
1
-
Filling capacity:
-
500-700 CPH
-
Motor:
-
0.55kw
-
Maximum filling pressure:
-
0.3Mpa
-
Filling temperature:
-
<4°C
-
Compressed Air consumption:
-
0.1m3/min(0.4~0.6Mpa)
-
CO2 consumption:
-
160g/100L
-
Can height:
-
105~240mm
Quick Details
-
Machinery Capacity:
-
700CPH
-
Packaging Material:
-
Metal
-
Filling Material:
-
Beer, Milk, Water, Juice
-
Filling Accuracy:
-
±6mm
-
Voltage:
-
Customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Dimension(L*W*H):
-
3400*1500*2100mm
-
Weight:
-
800 KG
-
Model:
-
HG4-1
-
Filling nozzle:
-
4
-
Sealing nozzle:
-
1
-
Filling capacity:
-
500-700 CPH
-
Motor:
-
0.55kw
-
Maximum filling pressure:
-
0.3Mpa
-
Filling temperature:
-
<4°C
-
Compressed Air consumption:
-
0.1m3/min(0.4~0.6Mpa)
-
CO2 consumption:
-
160g/100L
-
Can height:
-
105~240mm
Automatic Craft Beer Aluminum Can Filling Sealing Machine Beer Canning Filling Machine Filling Machine
|
Model
|
HG4-1
|
|
Filling nozzle
|
4
|
|
Sealing nozzle
|
1
|
|
Filling capacity
|
500-700 CPH
|
|
Motor
|
0.55kw
|
|
Maximum filling pressure
|
0.3Mpa
|
|
Filling temperature
|
<4°C
|
|
Compressed Air consumption
|
0.1m3/min(0.4～0.6Mpa)
|
|
CO2 consumption
|
160g/100L
|
|
Can neck
|
Φ52～Φ90mm
|
|
Can height
|
105～240mm
|
|
Machine size
|
1800*1200*2200mm
|
|
Weight
|
450KG
|
Fully Automatic 4-1 Canning Machine
This 4-1 type fully automatic canning machine is special designed for medium capacity brewery/brew pubs. It’s easy operating withhigh efficiency. The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.
Automatic canning machine is special designed for medium capacity brewery/brew pubs. It's easy operating with high efficiency.The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.
4-1 Semi-Automatic Can Filling Machine
This 4-1 type semi automatic canning machine is special designed for medium capacity brewery/brew pubs. It’s easy operating with high efficiency. The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.
This 4-1 type semi automatic canning machine is special designed for medium capacity brewery/brew pubs. It’s easy operating with high efficiency. The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.
12-1 Fully Automatic Can Filling Machine
20-4 Fully Automatic Can Filling Machine
This 20-4 type fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision in liquid level and it only starts filling when there is a can, otherwise it will not fill.working is reliable.
|
Item
|
Production capacity
|
Filling method
|
Material
|
Dimensions
|
|
HG-GZ-4-1
|
100-300CPH
|
Isobaric filling
|
SUS304
|
1700*750*2200mm
|
|
HG-GZ-4-1
|
500-700CPH
|
Isobaric filling
|
SUS304
|
1800*1200*2200mm
|
|
HG-GZ-12-1
|
1500-2000CPH
|
Isobaric filling
|
SUS304
|
2150*1300*1900mm
|
|
HG-GZ-20-4
|
6000CPH
|
Isobaric filling
|
SUS304
|
2200*1750*1900mm
|
1.Q:Does your company have foreign installation experience?
A:Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.
2.Q:Do you have a professional engineer or after-sales team in our country?
A:Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.
3.Q:How can you guarantee the delivery date of the equipment after we place the order?
A:The delivery time can be ensured through Alibaba Credit Insurance orders.
4.Q:What payment methods are supported?
A:T/T, L/C, Credit Card, VISA, Apple device, Western Union.
5.Q: How long the warranty will be?
A:3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries. 1 Year warranty for filling machine.
6.Q:How about the installation and training?
A:We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa,
A:Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.
2.Q:Do you have a professional engineer or after-sales team in our country?
A:Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.
3.Q:How can you guarantee the delivery date of the equipment after we place the order?
A:The delivery time can be ensured through Alibaba Credit Insurance orders.
4.Q:What payment methods are supported?
A:T/T, L/C, Credit Card, VISA, Apple device, Western Union.
5.Q: How long the warranty will be?
A:3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries. 1 Year warranty for filling machine.
6.Q:How about the installation and training?
A:We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa,
accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
7.Q:Can I be your company's sales agent?
A:Yes, it’s our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.
7.Q:Can I be your company's sales agent?
A:Yes, it’s our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.
