Quick Details
-
Voltage:
-
380V
-
Power:
-
28kw-80kw
-
Dimension(L*W*H):
-
Length6000mm* width2500mm *height2700mm
-
Weight (KG):
-
5000
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Capacity:
-
600T-2000T
-
Function:
-
Aluminum profile extrusion
-
Profile size:
-
90-203mm
-
Extrusion force:
-
650T- 2039T
-
Shearing force:
-
28T- 70T
-
Extrusion die size:
-
OD=200-400
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Machine Type:
-
Extruding Machine
-
Brand Name:
-
BM
-
Voltage:
-
380V
-
Power:
-
28kw-80kw
-
Dimension(L*W*H):
-
Length6000mm* width2500mm *height2700mm
-
Weight (KG):
-
5000
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Capacity:
-
600T-2000T
-
Function:
-
Aluminum profile extrusion
-
Profile size:
-
90-203mm
-
Extrusion force:
-
650T- 2039T
-
Shearing force:
-
28T- 70T
-
Extrusion die size:
-
OD=200-400

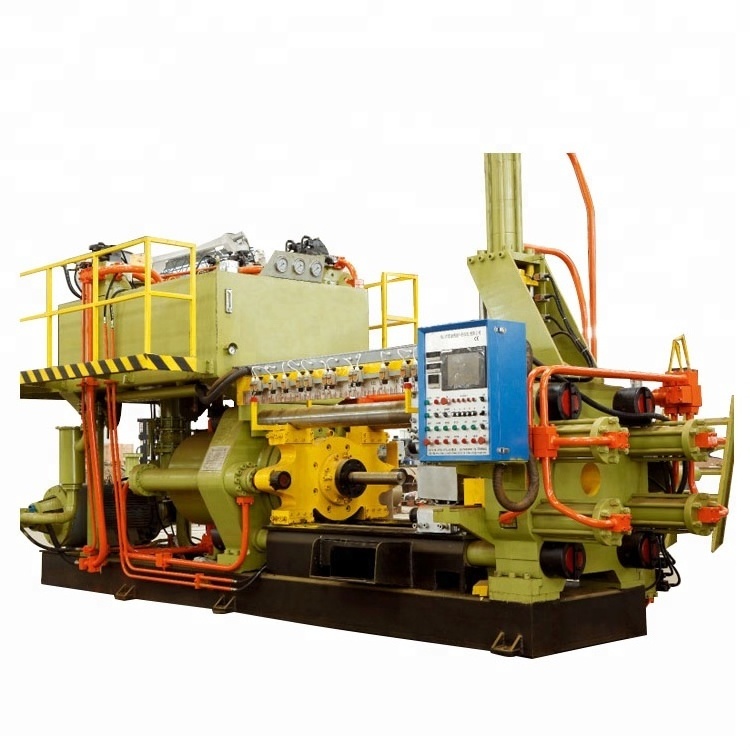

Aluminum Profile Extruder Extrusion Press Extruding Machine
Product Description
| Product information |
Extrusion capacity
| Parameter | Minimum | Maximum |
| Diameter of main cylinder plunger | 580 mm | 950 mm |
| Diameter of side cylinder plunger | 140 mm*2 | 220 mm*160 mm |
| Diameter of container plunger | 160 mm*4 | 180 mm*4 |
| Diameter of shear plunger | 140 mm | 200 mm |
| Total extrusion force | 648.5 ton | 2039 ton |
| Main cylinder extrusion | 580.9 ton | 1842 ton |
| Side cylinder extrusion | 67.6 ton | 197 ton |
| Container lock-up | 36 ton | 80 ton |
| Shear | 24 ton | 70 ton |
Theory speed
| Main cylinder fast forwarding speed | 315 mm/sec | 125 mm/sec |
| Main cylinder fast draw-back speed | 200 mm/sec | 275 mm/sec |
| Extrusion speed | 0-12 mm/sec | 0-17 mm/sec |
| Container lock-up | 200 mm/sec | 300 mm/sec |
| Container open | 180 mm/sec | 169 mm/sec |
| Shear up | 350 mm/sec | 350 mm/sec |
| Shear down | 300 mm/sec | 600 mm/sec |
