* 8Gigabit PoE Ports + 2 Gigabit SFP Port + 1 Console port
* Support：3、IEEE802.3u，IEEE802.3x，IEEE802.3z / ab，IEEE802.1Q，IEEE802.1p，IEEE802.1d/w
* PoE Power Management, PoE Watchdog based on data stream detection.
* Support 3af（15.4w）和IEEE802.3at（30W）.
* Support STP（1D）, RSTP（802.1w），MSTP（802.1s），ERPS.
* Support SNMP v1/v2/v3.
* SupportIGMP Snooping , Static multicast filtering and MLD Snooping.
* Support 1xport and AAA Certification，Enhance network security.
* Support WEB, Telnet，CLI,SSHmanagement.
* IP40protection, rugged high-strength metal case，DIN35 Rail mounting
* EMCgrade 4 design，-40 to 75℃ working temperature.
* Support Redundant power supply access, support anti-reverse connection.
* Surge Protection: General 6KV, Differential 2KV; ESD 15KV(Air), 8KV (Contact)
* Support EMC EN55032standard.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YCX
-
Model Number:
-
YC-SW08G82S6
-
Place of Origin:
-
Guangdong, China
-
POE Power Output:
-
DC 48-55V
-
PoE Compatibility:
-
IEEE 802.3af / at adaptive
-
Input Voltage:
-
DC 48-55V
-
Type of input:
-
4 PIN Industrial Terminal
-
Protect grade:
-
IP40
-
Installation:
-
DIN Rail
-
Product weight:
-
0.8 KG
-
Operating temperature:
-
-40~75℃
-
Storage temperature:
-
-40~85℃
-
Warranty:
-
3years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
20GB
-
Brand Name:
-
YCX
-
Model Number:
-
YC-SW08G82S6
-
Place of Origin:
-
Guangdong, China
-
POE Power Output:
-
DC 48-55V
-
PoE Compatibility:
-
IEEE 802.3af / at adaptive
-
Input Voltage:
-
DC 48-55V
-
Type of input:
-
4 PIN Industrial Terminal
-
Protect grade:
-
IP40
-
Installation:
-
DIN Rail
-
Product weight:
-
0.8 KG
-
Operating temperature:
-
-40~75℃
-
Storage temperature:
-
-40~85℃
-
Warranty:
-
3years
Product Description

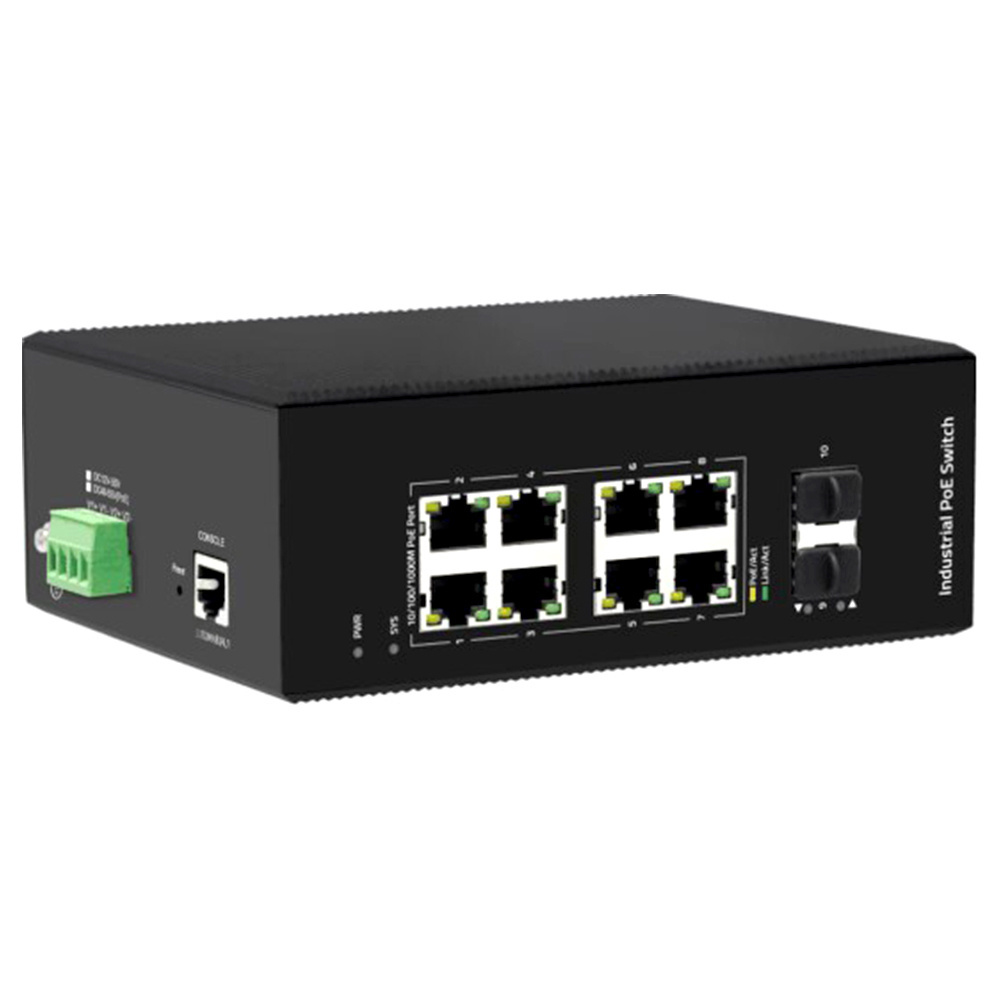

10 Ports Gigabit Managed Industrial PoE Switch
Specification
|
Product Name
|
10 Ports Gigabit Managed Industrial PoE Switch
|
|
||
|
Product Model
|
ZX600-AFGM-82S
|
|
||
|
Port Definition
|
8 Gigabit PoE Ports + 2 Gigabit SFP Port + 1 Console port
|
|
||
|
Network Protocols
|
IEEE802.3
IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.1d IEEE802.1w |
|
||
|
POE Parameters |
POE Standard: IEEE 802.3af / IEEE 802.3at
|
|
||
|
|
Single PoE Port Power Output:
Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at) |
|
||
|
|
PoE Compatibility: IEEE 802.3af / at adaptive
|
|
||
|
|
POE Power Output: DC 48-55V
|
|
||
|
|
POE Power Pin: 1/2- ; 3/6+
|
|
||
|
Network Media
|
10BASE-T: Cat3,4,5 UTP(≤100 M)
100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) |
|
||
|
Fiber Media
|
Multi-mode：850nm，1310nm Transmission Distance: 550m/2Km
Single-mod：1310nm，1550nm Transmission Distance: 20/40/60/80/100/120Km |
|
||
|
LED Indicator |
PWR
|
Lighting：Powered
Un-Light：No Power |
||
|
|
SYS
|
Lighting：System is operating normally
Un-Light：System is not running |
||
|
|
Yellow light
|
Lighting：PoE Powered
Un-Light：No PoE Powered Flashing：Port and device mismatch |
||
|
|
Green light
|
Slow Flashing：10/100/1000 Link normally
Un-Light：Link disconnect Flashing：Link data transmission |
||
|
|
G9-G10
|
Lighting：Fiber Connection is Normal
Un-Light：Disconnect Flashing：Link data transmission |
||
|
Power Supply
|
Input Voltage: DC48～55V
Type of input: 4 PIN Industrial Terminal（block V1+V1- V2+ V2-） |
|
||
|
Physical structure
|
Protect grade： IP40
Installation：DIN Rail Product weight： 0.8 KG Package weight: 1.1 KG（Without power） Product Dimensions (L×W×H): 165mm×130mm×65mm Package Dimensions (L×W×H): 242mm×207mm×86mm Standard packing (L×W×H): 445mm×445mm×510mm Standard packing quantity : 20(PCS) |
|
||
|
Working Environment
|
Operating temperature: -40～75℃
Storage temperature: -40～85℃ Humidity: 5%~95 % ( No condensation) |
|
||
|
Industry Standard
|
EMI: FCC Part 15, CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
|
||
|
Certification
|
CE ，FCC，ROHS
|
|
||
|
MTBF
|
100,000 hours
|
|
||
|
Packing list
|
1. Industrial grade switch: 1 Set
2. Instruction manual: 1 PCS 3. Certificate, warranty card: 1 PCS 4. Serial cable：1PCS |
|
||
|
Warranty
|
5 years
|
|
||
|
Hardware Parameters
|
|
|
||
|
Bandwidth
|
20Gbps
|
|
||
|
Packet Forwarding Rate
|
14.88Mpps
|
|
||
|
RAM
|
128MB
|
|
||
|
Flash
|
16MB
|
|
||
|
Packet Buffer Memory
|
4M
|
|
||
|
Jumbo frame
|
9.6Kbytes
|
|
||
|
VLANs
|
4096
|
|
||
|
MAC
|
8K
|
|
||
|
Forwarding Mode
|
Store-And-Forward
|
|
||
|
Power Supply
|
POE ,12 VDC ± 10%
|
|
||
|
Power Consumption
|
< 8 W
|
|
||
|
Operating Temp.
|
-30℃-(+60)℃, 10%-90%RH
|
|
||
|
L3 Function
|
|
|
|
IPv4
|
IPv4 VLAN Interface
|
|
|
|
IPv4 Static Routes
|
|
|
|
ARP
|
|
|
L2 Function
|
|
|
|
Port
|
Port Switch
|
|
|
|
Port Description
|
|
|
|
Port Speed
|
|
|
|
Port Duplex
|
|
|
|
Port Flow Control
|
|
|
|
Jumbo, Up to 9600bytes
|
|
|
|
EEE
|
|
|
|
Fiber Module(DDM)
|
|
|
Link Aggregation
|
Supports load balance policy; Base on SMAC/DMAC/IP and TCP/UDP port number
|
|
|
|
Static and Dynamic Group
|
|
|
|
Supports LACP
|
|
|
Storm Control
|
Boardcast
|
|
|
|
Unknown Multicast
|
|
|
|
Unknown Unicast
|
|
|
Port Mirroring
|
One to one monitor
|
|
|
|
Many to one monitor
|
|
|
|
Ingress/Egress/Both
|
|
|
Port Security
|
MAC Address Constraints
|
|
|
|
Action：Trap/Shutdown
|
|
|
Port Isolation
|
|
|
|
Port Rate-limit
|
|
|
|
Loopback Detection
|
|
|
|
VLAN
|
Access/Trunk/Hybrid
|
|
|
|
VLAN Tunnel （Q-in-Q Tunnel）
|
|
|
|
Congurable VID from 1 - 4094;Max. 4K static VLAN groups
|
|
|
|
GVRP
|
|
|
MAC Address
|
Dynamic Address
|
|
|
|
Static Address
|
|
|
Spnning Tree Protocol
|
STP/RSTP/MSTP
|
|
|
|
BPDU Filter
|
|
|
|
BPDU Guard
|
|
|
|
Edge Port
|
|
|
ERPS
|
Major and sub ring
|
|
|
|
up to 16 rings
|
|
|
LLDP
|
|
|
|
Multicast
|
IGMP Snnoping
|
|
|
|
IGMP V1/V2/V3
|
|
|
|
Router Port
|
|
|
|
Static IGMP group address
|
|
|
|
IGMP groups filtering
|
|
|
|
Querier
|
|
|
|
MLD Snooping
|
|
|
QoS
|
Traffic classification based, Strict priority and SP+WRR
|
|
|
|
Port Priority
|
|
|
|
802.1P Priority
|
|
|
|
IP DSCP Priority
|
|
|
|
Supports up to 8 queues per port
|
|
|
|
Port Shaping
|
|
|
PoE
|
|
|
|
PoE Configuration
|
PoE Temperature
|
|
|
|
PoE Type/Level/Power/Current
|
|
|
|
PoE Switch
|
|
|
|
PoE Watchdog
|
|
|
|
Total PoE power budget control
|
|
|
|
PoE power management
|
|
|
|
PoE port priority
|
|
|
|
Per PoE port power limit
|
|
|
PoE Schedule
|
|
|
|
PoE Port Timer Reboot
|
|
|
|
Services
|
|
|
|
DHCP
|
DHCP Server
|
|
|
|
IP Pool
|
|
|
|
Static Binding
|
|
|
|
DHCP Relay
|
|
|
Access Protocol
|
HTTP
|
|
|
|
Telnet
|
|
|
|
SSH
|
|
|
|
Manager ACL
|
|
|
Security
|
|
|
|
AAA
|
RADIUS
|
|
|
|
TACACS+
|
|
|
|
802.1X
|
|
|
|
Base on port/MAC authentication
|
|
|
DHCP Snooping
|
|
|
|
IP Source Guard
|
|
|
|
Dynamic ARP Inspection
|
|
|
|
ACL
|
Port ACL
|
|
|
|
MAC ACL
|
|
|
|
IPv4 ACL
|
|
|
|
IPv6 ACL
|
|
|
Permission level management
|
|
|
|
Diagnostics
|
|
|
|
Syslog
|
Logging Message
|
|
|
|
Remote Server
|
|
|
Ping
|
|
|
|
Traceroute
|
|
|
|
Cable Diagnositics
|
|
|
|
Managemnet
|
|
|
|
Manager Access
|
Console
|
|
|
|
HTTP
|
|
|
|
Telnet
|
|
|
|
SSHv2
|
|
|
|
SNMP
|
|
|
Manager IP
|
Static Address
|
|
|
|
DHCP Client
|
|
|
|
Supports IPv4 and IPv6 address
|
|
|
|
DNS
|
|
|
Time Synchronization
|
SNTP
|
|
|
|
Manual Time
|
|
|
SNMP
|
V1/V2C/V3
|
|
|
|
Community
|
|
|
|
V3 User
|
|
|
|
Group
|
|
|
|
Trap Host
|
|
|
SNMP MIB
|
RFC 1213 MIB-II
|
|
|
|
RFC 1493 Bridge MIB
|
|
|
|
RFC 1643 Ethernet MIB
|
|
|
|
RFC 2863 Interface MIB
|
|
|
|
Private MIB
|
|
|
User
|
Congurable user privilege level from 0 - 15;
|
|
|
Firmware
|
Double Image; Swap between Active and Alternate firmware image.
|
|
|
|
Firmware update
|
|
|
Configuration
|
Upload and download
|
|
|
Save
|
|
|
|
Restart
|
|
|
|
Factory Defaults
|
|
|
|
Standards Compliance
|
|
|
|
IEEE 802.3x flow control and back pressure
|
|
|
|
IEEE 802.3ad port trunk with LACP
|
|
|
|
IEEE 802.1D Spanning Tree Protocol
|
|
|
|
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
|
|
IEEE 802.1s Multiple Spanning Tree Protocol
|
|
|
|
IEEE 802.1p Class of Service
|
|
|
|
IEEE 802.1Q VLAN tagging
|
|
|
|
IEEE 802.1x Port Authentication Network Control
|
|
|
|
IEEE 802.1ab LLDP
|
|
|
|
IEEE 802.3af Power over Ethernet
|
|
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
|
|
RFC 768 UDP
|
|
|
|
RFC 793 TFTP
|
|
|
|
RFC 791 IP
|
|
|
|
RFC 792 ICMP
|
|
|
|
RFC 2068 HTTP
|
|
|
|
RFC 1112 IGMP v1
|
|
|
|
RFC 2236 IGMP v2
|
|
|
|
RFC 3376 IGMP v3
|
|
|
|
RFC 2710 MLD v1
|
|
|
|
FRC 3810 MLD v2
|
|
|
|
ITU-T G.8032 ERPS Ring
|
|
|
Packing & Delivery
Neutral Packing ， OEM welcomed
