- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
30 Years Warranty
-
Brand Name:
-
Longi
-
Model Number:
-

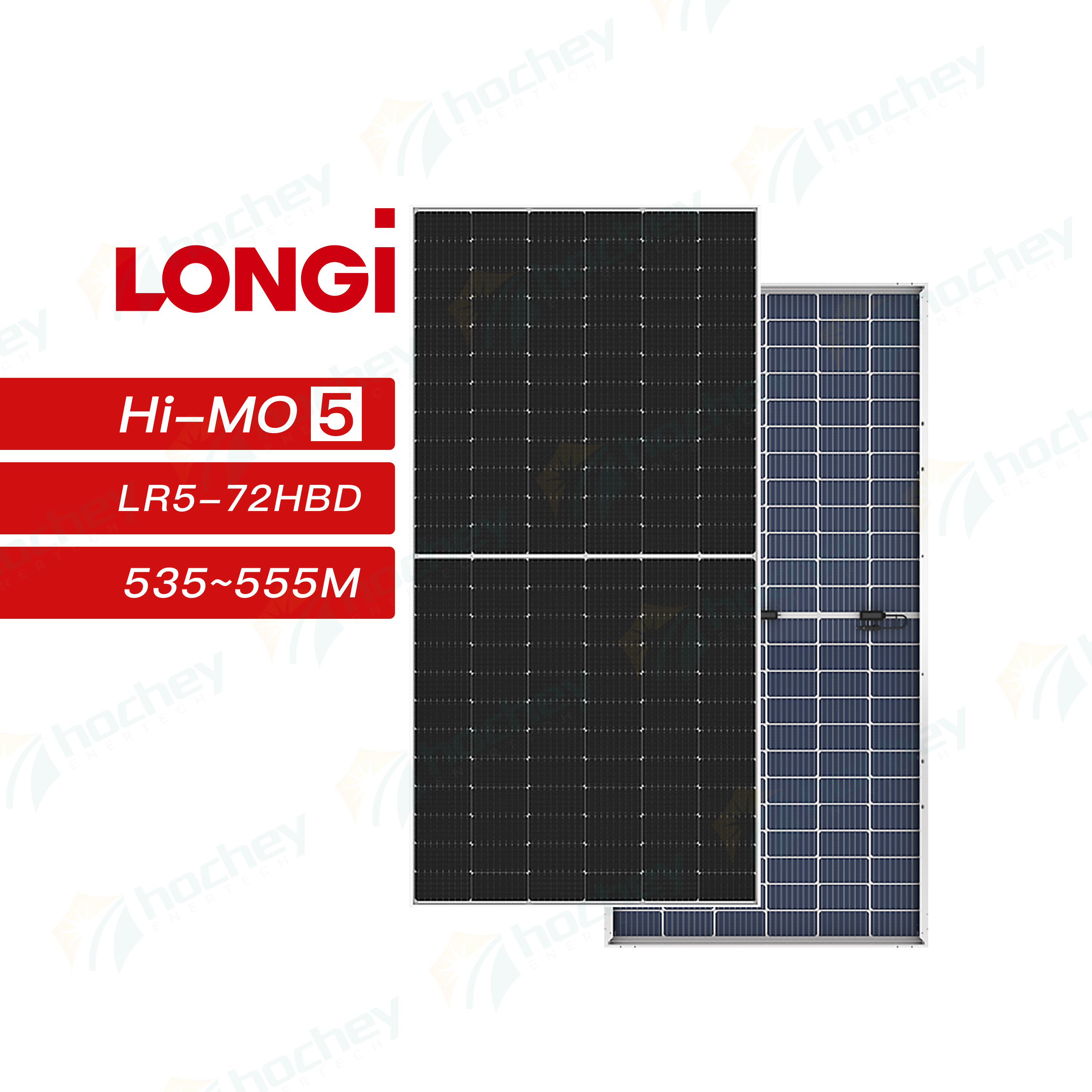

LR5 72HPH 535-555M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Color:
-
Normal
-
Frame:
-
Anodized Aluminium Alloy
-
Material:
-
Silicon
-
Junction Box:
-
IP68 Rated
-
Certificate:
-
TUV CE, TUV/CE
-
Application:
-
Solar System
-
Working Life:
-
More than 25 years
-
Work Time:
-
24 Hours
-
Cable:
-
4mm2
-
Weight:
-
29kg
Quick Details
-
Cell size:
-
182mmx91mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
22%
-
Warranty:
-
30 Years Warranty
-
Brand Name:
-
Longi
-
Model Number:
-
LR5 72HPH 535-555M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Color:
-
Normal
-
Frame:
-
Anodized Aluminium Alloy
-
Material:
-
Silicon
-
Junction Box:
-
IP68 Rated
-
Certificate:
-
TUV CE, TUV/CE
-
Application:
-
Solar System
-
Working Life:
-
More than 25 years
-
Work Time:
-
24 Hours
-
Cable:
-
4mm2
-
Weight:
-
29kg
Quick Data
|
Module Type
|
LR5-72HBD 535M
|
LR5-72HBD 540M
|
LR5-72HBD 545M
|
LR5-72HBD 550M
|
|||
|
Module Efficiency
|
20.7%
|
20.9%
|
21.1%
|
21.3%
|
|||
|
Voltage Max Power
|
41.5V
|
41.65V
|
41.8V
|
41.95V
|
|||
|
Open Circuit Voltage
|
49.35V
|
49.5V
|
49.65V
|
49.8V
|
|||
|
Current Max Power
|
12.9A
|
12.97A
|
13.04A
|
13.12A
|
|||
|
Short Circuit Current
|
13.78A
|
13.85A
|
13.92A
|
13.99A
|
|||
|
Backside Increase
|
5%-25%
|
|
|
|
|||
|
Cell Type
|
P Type
|
|
|
|
|||
|
Dimension
|
2278*1134*35mm
|
|
|
|
|||
|
Weight
|
32.6kg
|
|
|
|
|||
|
Junction Box
|
IP68, three diodes
|
|
|
|
|||
|
Glass
|
Dual Glass
|
|
|
|
|||
|
Frame
|
Anodized Aluminum Alloy
|
|
|
|
|||
Longi Technology
Advantages of Bifacial Tochnology
1.
Low operating temperature, reduce power loss.
The temperature will affect the open circuit voltage, short circuit current, peak power and other parameters of the solar crystalline silicon cell. When the temperature increases by 1℃, the peak power loss is 0.35% ~ 0.45%. The back of the double-sided battery is a highly transparent SiNx material, infrared light can penetrate the battery, not absorbed by the battery, and the temperature under normal operation is 5~9 ° C lower than that of conventional components, reducing power loss.
2.
Can be installed vertically, the application range is extended.
At the ideal installation Angle, height from the ground and ground reflectivity, the double-sided power generation module can make full use of the reflected and scattered light in the environment to generate electricity. Therefore, in addition to the traditional installation method, the double-sided power generation module can also be vertically installed, suitable for fences, solar curtain walls, highway sound walls, daylighting agricultural greenhouses and other occasions.
3.
Power generation gain 5%~30%.
The performance of double-sided power station system is mainly affected by system design and installation environment. Under the condition of the same nominal peak power and installation location, the power generation gain of double-sided power generation module is 15%~20%; The gain can reach 30% after increasing the component height and ground albedo; Gains of more than 50% can even be achieved with inclined single-axis or tracking devices.
Longi Factory
Anhui Production Facilities
The Anhui production facilities consist of two plants: Chuzhou module plant and Hefei cell plant.
Kuching Production Facilities
The Kuching production facilities consist of seven plants: Kuching ingot plant, Kuching shaping plant, Kuching wafer plant,
Kuching Cell Plant 1-4, and Kuching module plant.
Kuching Cell Plant 1-4, and Kuching module plant.
In May 2022, Forbes released its 2022 Global 2000 List, in which LONGi rose to the 724th place in the rank.
Solar for Solar
LONGi supports the "Solar for Solar" business model. While creating low-cost clean energy products for the world, the company uses clean energy and green manufacturing practices in its operations whenever possible.
Since 2015, LONGi has located its operations in Yunnan, China, and Kuching, Malaysia, to utilize the abundant local hydropower resources to provide clean energy for its facilities. LONGi plans to integrate solar power plants with pumped storage in areas that feature significant elevation differences and abundant sunlight, creating an industrial model for using solar.
