Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lan Hang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Based on model of the machine
-
Power (kW):
-
360
-
Weight:
-
36000 KG
-
Roll specification:
-
560*1730mm
-
Layout of the roll:
-
The pour type
-
Roll speed:
-
5-50m/min
-
Final product thickness:
-
0.05-1mm
-
Final product with:
-
1500mm
-
After-sales Service Provided:
-
Engineers
-
Name:
-
Calender Machine
-
Marketing Type:
-
Ordinary Product
-
Raw material:
-
PVC Powder
-
Usage:
-
Plastic sheeting
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
22:1
-
Screw Speed (rpm):
-
75 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lan Hang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Based on model of the machine
-
Power (kW):
-
360
-
Weight:
-
36000 KG
-
Roll specification:
-
560*1730mm
-
Layout of the roll:
-
The pour type
-
Roll speed:
-
5-50m/min
-
Final product thickness:
-
0.05-1mm
-
Final product with:
-
1500mm
-
After-sales Service Provided:
-
Engineers
-
Name:
-
Calender Machine
-
Marketing Type:
-
Ordinary Product
-
Raw material:
-
PVC Powder
-
Usage:
-
Plastic sheeting

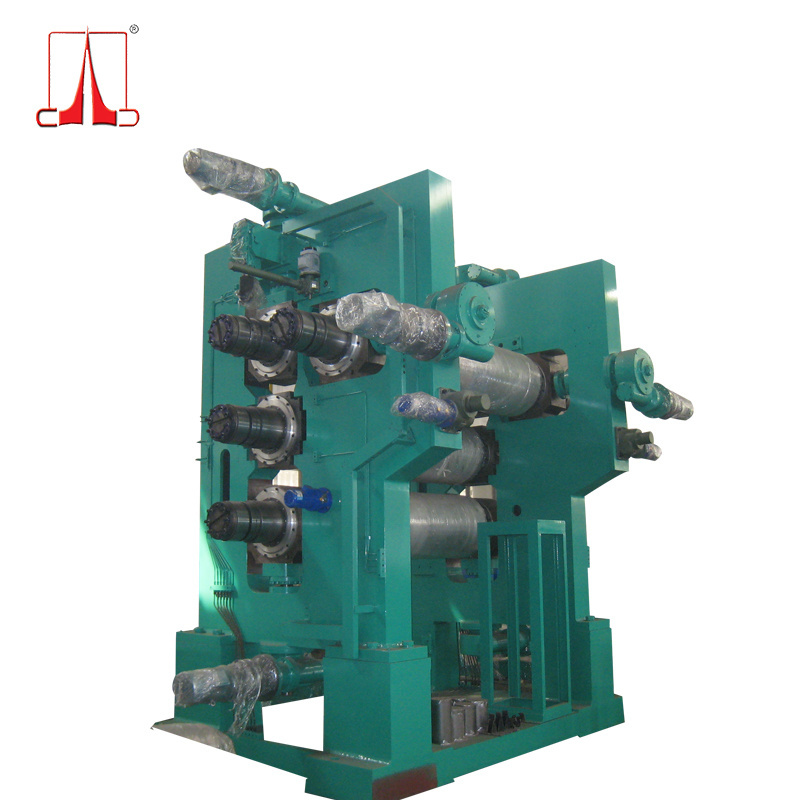

pvc sheet making machine
Application:
Mainly used for film , rigid sheet calendering,pvc.
Main technical parameter:
| Project / Model | SY610x1900 | SY610x2030 | SY660x2500 | SY710x2800 |
| Roll specification (mm) | 610x1900 | 610x2030 | 660x2500 | 710x2800 |
| Layout of the roll | The pour L type | |||
| Roll speed (m/min) | 40-100 | 40-100 | 50-120 | 50-120 |
| Final product thickness (mm) | 0.08-1 | 0.08-1 | 0.08-1 | 0.08-1 |
| Rolled products Width (mm) | 1500 | 1600 | 2100 | 2300 |
| Main motor power (kw) |
200kw
(45kw 2 sets 55kw 2 sets) |
260kw
(55kw2sets 75kw 2sets) |
330kw (75kw 2sets 90kw 2sets) | 400kw (90kw 2 sets 110kw 2 sets) |
