Quick Details
-
Applicable Models:
-
Most of the cars
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAUNCH
-
Model Number:
-
IMMO PLUS
-
Warranty:
-
12 Months, 1 Year Warranty
-
Product Name:
-
LAUNCH X431 IMMO PLUS
-
Keywords:
-
KEY PROGRAMMING
-
Update:
-
2 Years Update Online
-
Brand:
-
LAUNCH
-
MOQ:
-
1set
-
Function 1:
-
ADVANCED IMMO & KEY PROGRAMMING
-
Function 2:
-
All System Diagnostics
-
Function 3:
-
All Special Functions, EPB, DPF, SAS, etc
-
Language:
-
Multi-language
Quick Details
-
Car Fitment:
-
BMW (BRILLIANCE)
-
Voltage:
-
standard
-
Power:
-
standard
-
Applicable Models:
-
Most of the cars
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAUNCH
-
Model Number:
-
IMMO PLUS
-
Warranty:
-
12 Months, 1 Year Warranty
-
Product Name:
-
LAUNCH X431 IMMO PLUS
-
Keywords:
-
KEY PROGRAMMING
-
Update:
-
2 Years Update Online
-
Brand:
-
LAUNCH
-
MOQ:
-
1set
-
Function 1:
-
ADVANCED IMMO & KEY PROGRAMMING
-
Function 2:
-
All System Diagnostics
-
Function 3:
-
All Special Functions, EPB, DPF, SAS, etc
-
Language:
-
Multi-language
Products Description

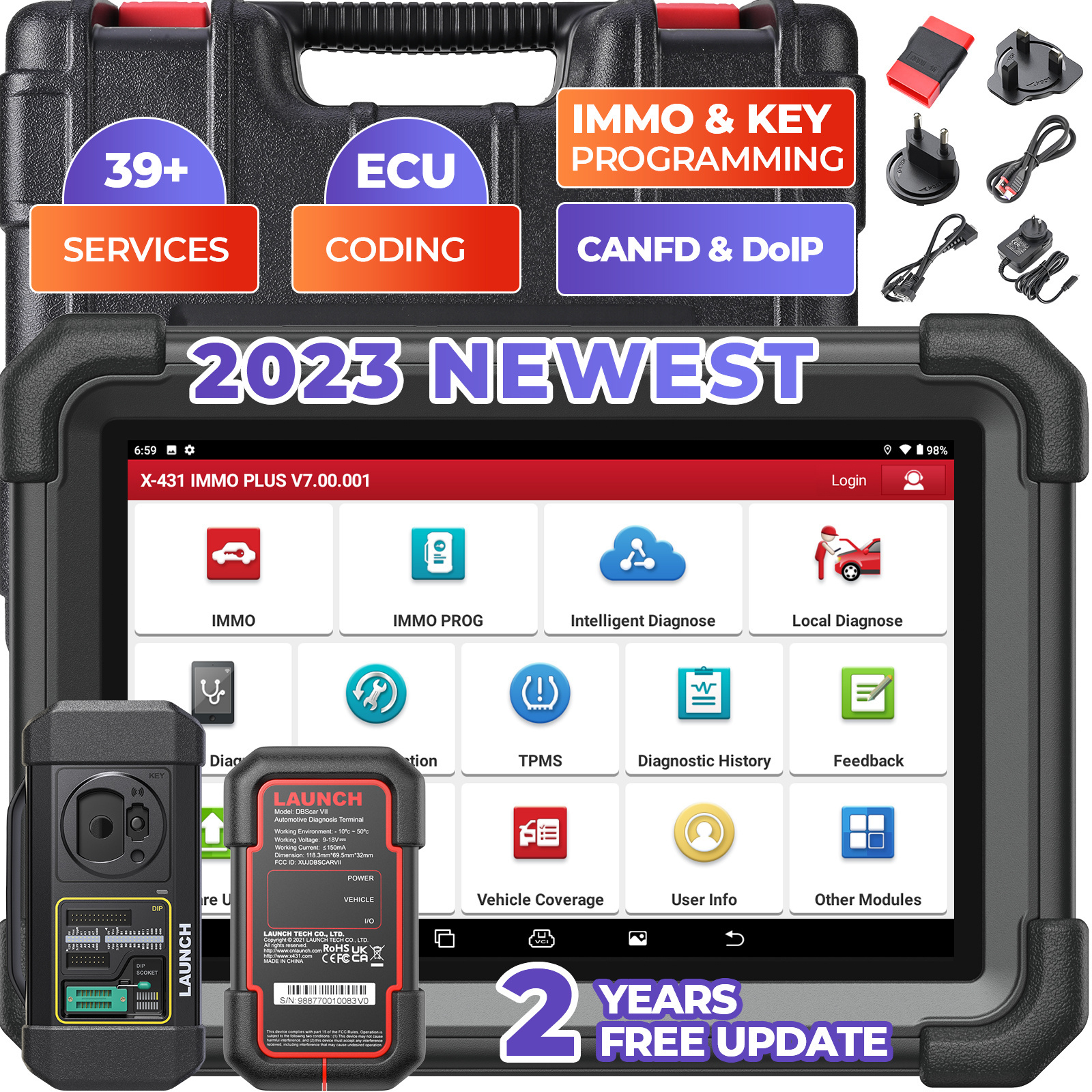

Launch X-431 IMMO PLUS is the most advanced and the unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 8-inch touchscreen tablet. It is equipped with X-PROG3 key programming device to provide complete coverage of IMMO and programming functions. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market
|
X-431 IMMO PLUS Host Specifications
|
|
|
|
Name
|
Parameter
|
|
|
Processor
|
2.0GHz 4-core
|
|
|
Operating system
|
Android 10.0
|
|
|
Memory
|
4GB
|
|
|
Storage
|
64GB
|
|
|
Battery
|
47880mWh(7.6V,6300mAh)
|
|
|
Display
|
8-inch, 1280*800
|
|
|
Camera
|
Rear 8MP
|
|
|
WIFI
|
2.4GHz/5GHz (dual frequency)
|
|
|
Interface
|
TYPE A *1 &TYPE C*1
|
|
|
Operating temperature
|
0~50℃
|
|
|
Size
|
234*166*39.5(mm)
|
|
|
X-PROG 3 Anti-theft Matching Tool Specifications
|
|
DBScar VII VCI Connector Specifications
|
|
||
|
Name
|
Description
|
Item
|
Parameter
|
||
|
Vehicle key slot
|
Used to place the vehicle key to perform key matching function
|
Operating voltage
|
DC 9~18V
|
||
|
DB26
|
Used to connect anti-theft cables, such as the data acquisition cable of 4th
generation instrument keys all lost, etc. |
Communication method
|
Bluetooth
|
||
|
Infrared slot for Benz key
|
Used to place the Mercedes-Benz infrared key to perform the key matching
function |
Operating temperature
|
-10~50℃
|
||
|
Vehicle key chip hole
|
Used to place the key chip to perform the key matching function
|
Size
|
118.3*69.5* 32 (mm)
|
||
|
Status indicator
|
Power supply indicator lamp
|
Power indicator
|
When the VCI diagnostic connector is connected to vehicle OBD II diagnostic socket,
the indicator lamp will turn red. |
||
|
DIY slot
|
Used to connect the anti-theft ECU pin through the cable to read and write data
|
Vehicle indicator
|
The indicator lamp flashes in green when the VCI diagnostic connector is communicat-ing with vehicle ECU.
|
||
|
Locker
|
Install the chip burn-in socket to complete the EEPROM or MCU data
reading and writing operations |
IO indicator
|
1. When the VCI diagnostic connector communicates with the diagnostic host via Blue-tooth, the indicator lamp is blue, and flashes
in blue during communication. 2. When the VCI diagnostic connector communicates with the diagnostic host via USB, the indicator lamp is red and flashes in red during communication. |
||
|
DC12V power supply
|
Connect DC12 power supply
|
|
|
||
|
DB15
|
Connect the main harness
|
|
|
||
