Quick Details
-
Model:
-
KLVM-130
-
Type:
-
Vertical
-
Energy supply:
-
Motor
-
Voltage:
-
220V/380V
-
Power:
-
7.5 KW/15 KW
-
Dimension:
-
1500*1500*1100 mm
-
Capacity:
-
130 kg/h
-
Weight:
-
410 kg
-
Keyword:
-
Melting Compactor
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
410
-
Product name:
-
Machine Waste Recycling Crusher Plastic Machine
-
Model:
-
KLVM-130
-
Type:
-
Vertical
-
Energy supply:
-
Motor
-
Voltage:
-
220V/380V
-
Power:
-
7.5 KW/15 KW
-
Dimension:
-
1500*1500*1100 mm
-
Capacity:
-
130 kg/h
-
Weight:
-
410 kg
-
Keyword:
-
Melting Compactor
Product Descripition
Efficient energy

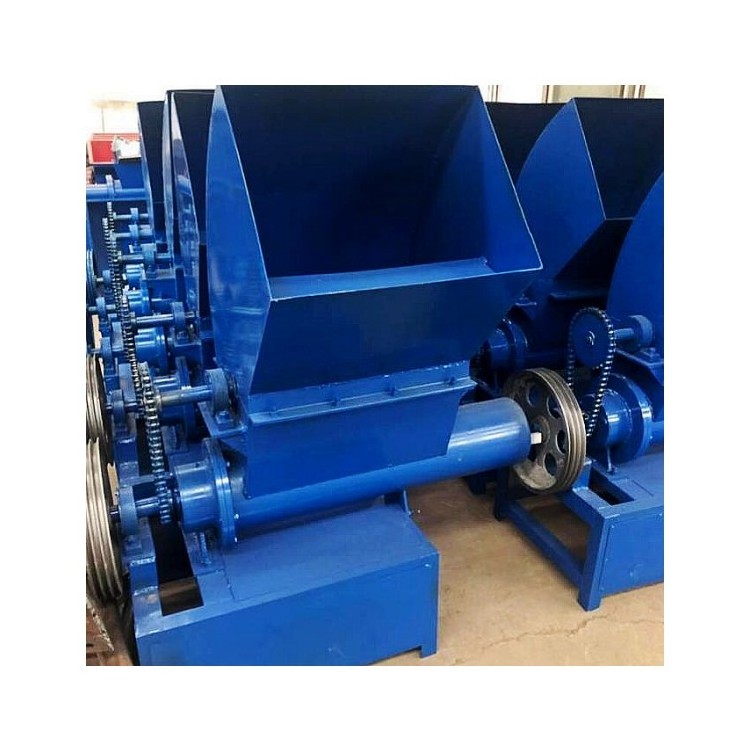

EPS melting machine
Foam smashing and swelling unit is also a foam making machine. Foaming swelling unit and foaming swelling unit are combined by foam shredder and foam making machine.The function of the foam crusher is to crush waste foam, which can crush white pollution garbage such as foam snack boxes, cake boxes, foam packaging materials, thermal insulation materials and foam materials, and omentum.
The foam maker is the waste foam particles crushed by the foam crusher are heated and plasticized by the screw, and squeezed into a tuft, which is convenient for transportation and sales.
The foam maker is the waste foam particles crushed by the foam crusher are heated and plasticized by the screw, and squeezed into a tuft, which is convenient for transportation and sales.
The double-shaft crushing knife is used in the foam box hot-melt machine, which can effectively crush the foamed polystyrene
material into smaller pieces and enter the screen. The materials that cannot enter the screen are further crushed, fall into the screen, and then enter the main machine through high-speed rotation of the screw to transport the crushed materials to the conical cylinder and the circular cylinder, and the mica heater heats the material to melt, and then continues to transport the molten material. When the square die is formed, the material begins to cool down, and the square recycled object is extruded from the die. According to the required length, it is automatically cut by the cutting machine to complete the production process.
Product Display
Specification
|
Vertical Type
|
|
|
||
|
Model
|
KLVM-130
|
KLVD-130
|
||
|
Type
|
Motor
|
Diesel
|
||
|
Voltage
|
220V/380V
|
/
|
||
|
Power
|
7.5kw/15kw
|
/
|
||
|
Dimension
|
1500*1500*1100mm
|
1700*1600*1200mm
|
||
|
Capacity
|
130kg/h
|
130kg/h
|
||
|
Weight
|
410kg
|
580kg
|
||
|
We have many models, please send me inquiry or add my
WhatsApp (+0086 15036175334)
and I will recommend the most suitable machine
for you~
|
|
|
||
|
Horizontal Type
|
|
|
||
|
Model
|
KLHM-150
|
KLHD-150
|
||
|
Type
|
Motor
|
Diesel
|
||
|
Voltage
|
220V/380V
|
/
|
||
|
Power
|
18.5kw
|
/
|
||
|
Dimension
|
1500*1700*1400mm
|
1600*1800*1500mm
|
||
|
Capacity
|
150kg/h
|
150kg/h
|
||
|
Weight
|
650kg
|
700kg
|
||
|
We have many models, please send me inquiry or add my
WhatsApp (+0086 15036175334)
and I will recommend the most suitable machine
for you~
|
|
|
||
We have many other models of machines, please feel free to contact me.
Detailed Images
The main engine of the foam briquetting machine is an extruder, which consists of an extrusion system, a transmission system and a heating system.
Extrusion system The extrusion system includes a screw, a barrel, a hopper, and a head. The plastic is plasticized into a uniform melt through the extrusion system, and under the pressure established in the process, the screw is continuously extruded by the head.
(1) Screw: It is the main component of the extruder, which is directly related to the application range and productivity of the extruder. It is made of high-strength and corrosion-resistant alloy steel.
(2) Barrel: It is a metal cylinder, which is generally made of steel pipes with heat resistance, high compressive strength, strong wear resistance and corrosion resistance. The barrel cooperates with the screw to realize the pulverization, softening, melting, plasticizing, exhausting and compacting of the plastic, and continuously and uniformly convey the rubber material to the molding system. Generally, the length of the barrel is 15 to 30 times its diameter, so that the plasticized foam can be fully heated and fully plasticized as a principle.
(3) Hopper: The bottom of the hopper is equipped with a cutting device to adjust and cut off the material flow, and the side of the hopper is equipped with a sight hole and a calibration metering device.
Product Application
Scope of application of the
EPS melting machine
:
The scope of application of the
EPS melting
machine includes the crushing of EPS, XPS, EPP, EPE, PU and other materials, and is widely used in waste foam scraps, packaging foam, disposable lunch boxes, polyurethane insulation boards, extruded plastic boards, lost foam and rock wool Board, foam box, heat insulation board, KT board, heating materials and other recycling industries.
