The whole component has new functions and characteristics, reduces the cost, and can realize one click installation.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Spider
-
Certification:
-
Reach
-
Custom Order:
-
OEM, ODM, OBM
-
Pressure:
-
High Pressure
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Black
-
Water Entry Pressure:
-
-120mbar(>1M)
-
Temperature Resistance::
-
-40℃ ~ +120℃
-
Certificate::
-
ISO9001
-
IP Rate:
-
IP65/ IP66/IP67/ IP68/ IP69
-
Oil Rate:
-
6
Quick Details
-
Port Size:
-
Standard
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
BD TKPC-100-17780
-
Brand Name:
-
Spider
-
Certification:
-
Reach
-
Custom Order:
-
OEM, ODM, OBM
-
Pressure:
-
High Pressure
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Black
-
Water Entry Pressure:
-
-120mbar(>1M)
-
Temperature Resistance::
-
-40℃ ~ +120℃
-
Certificate::
-
ISO9001
-
IP Rate:
-
IP65/ IP66/IP67/ IP68/ IP69
-
Oil Rate:
-
6
FEATURES AT A GLANCE
LED Lights Waterproof IP 68 Breathable Snap in Auto Air Vent
|
Product Name
|
Eptfe Vent;100% eptfe;plug-in vents;air vent;air vent cover;automatic air vent valve;air vent breather for led lights;car air vent;automatic air vent
;air vent plug;snap in vent;light in vent;plug-in vents |
|
Airflow:
|
0.3l/min
|
|
IP Rate:
|
IP68
|
|
Vent Membrane Material:
|
ePTFE
|
|
Vent Membrane Features:
|
Waterproof,Dustproof,Breathable
|
|
WEP:
|
49Kpa
|
|
Temperature:
|
-40℃~+150℃
|
|
Material:
|
TPE
|
|
Oil Rate
|
6
|
|
SIZES
|
φ7.8;φ12;φ14;φ16:Custom Size
|
|
Application
|
Foglight,Headlight,Tail light
|
|
Breathable Membrance
|
2300ml/min/cm² (Differential Pressure=70 mbar)
|
|
Breathable Membrance Material
|
ePTFE,PET
|
|
Canning Material
|
PP
|
|
Inner Material
|
TPE
|
|
OEM,ODM Service
|
Available
|
|
Product Parameters
|
|
|
|
|||
Snap in Vent
Customization:
SPIDER Tech’s protective vents can be customized to match your products in spec., color, property and we can provide you with specific solutions. For more information, please contact us freely.
Don't hesitate to contact us at anytime, no matter inquiry, TM message, via email or skype. If we are online,we will reply you at once. Even if sometime we are not online because of time difference, we promise you will be replied within 8 hours.
Design
CUSTOMIZED
SST-Porous @ BD T series vent caps can be customized in different inner hole installation aperture, different types of thermoplastelastomer, different Pp outer cover color, different air permeability and different IP ratep.Mainly depends on different ePTFE membrane type.
|

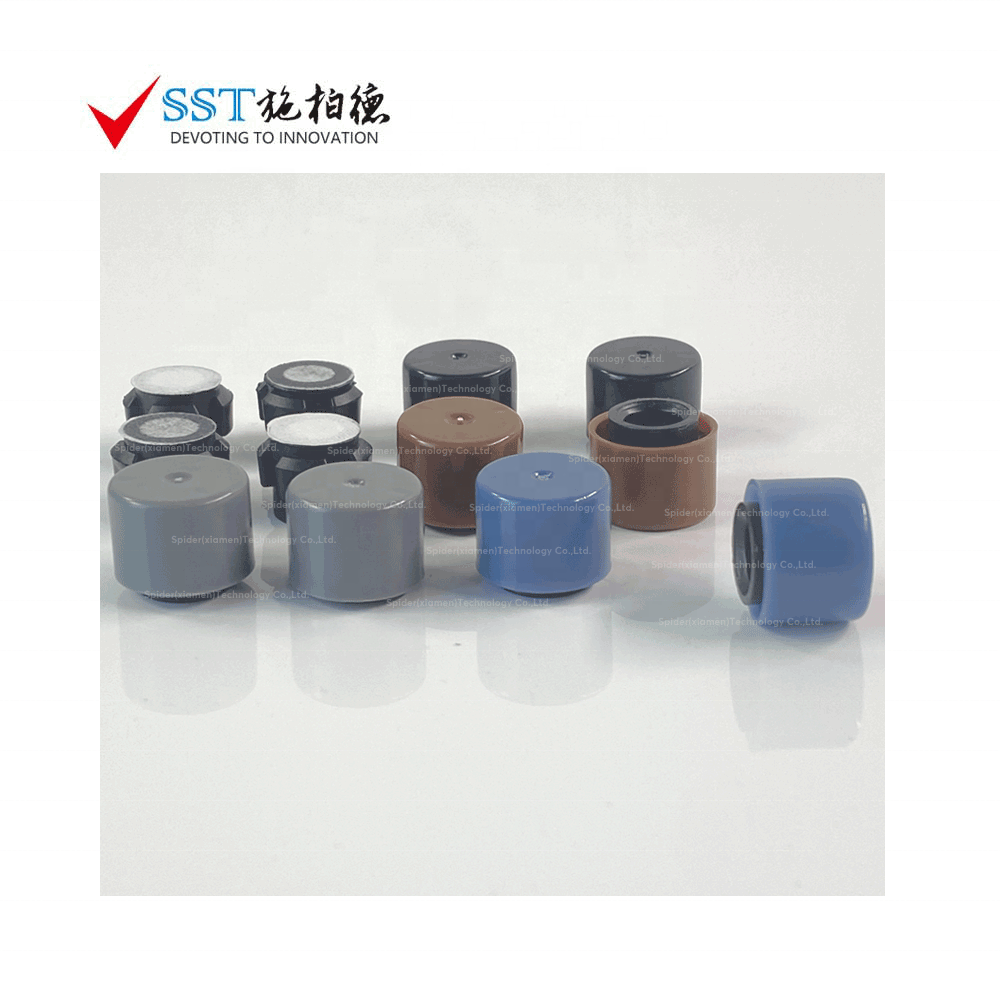

Breathable cap (cover) product description
|
|
|
|
Dimensions
|
6.8mm: 78mm;9.5mm; 12.5mm (Thermoplastic elastomer internal diameter)
|
|
|
Color
|
Black.;Blue.;Gray;Brown
|
|
Installation Instructions
How to install waterproof breathable automotive vent cap:
- choose the correct waterproof and breathable vent cap size according to the outside diameter of the lamp socket.
- do not allow too long vent holes for lamps and lanterns to prevent waterproof and breathable membranes from puncture holes.
The inner core of waterproof and breathable cap aligns the air hole of the lamp, and the external cover is properly pressed.
- waterproof breathable vent cap core is inserted into the vent to ensure that it is not too loose or too tight.
- choose the correct waterproof and breathable vent cap size according to the outside diameter of the lamp socket.
- do not allow too long vent holes for lamps and lanterns to prevent waterproof and breathable membranes from puncture holes.
The inner core of waterproof and breathable cap aligns the air hole of the lamp, and the external cover is properly pressed.
- waterproof breathable vent cap core is inserted into the vent to ensure that it is not too loose or too tight.
Use advantage
1. After 30 minutes of lighting, the humidity of unused waterproof breathable cap is 98%, and that of used waterproof breathable
cap is 82%.
2. After turning out the light, after 35 minutes, the humidity of the non-used waterproof breathable cap dropped to 37%, and the
humidity of the use of the innovative waterproof breathable cap dropped to 23%.
cap is 82%.
2. After turning out the light, after 35 minutes, the humidity of the non-used waterproof breathable cap dropped to 37%, and the
humidity of the use of the innovative waterproof breathable cap dropped to 23%.
Application Case
Application:
Head lights, rear lights, fog lights, taillights, turn signal lights
