Quick Details
-
Diameter:
-
12mm
-
Operation Type:
-
Momentary
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp Color:
-
Red Green Yellow Blue White Orange Purple Pink
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP67 IK10
-
Shell Metal:
-
Stainless Steel/Copper
-
Max Voltage:
-
250VAC
-
Head shape:
-
Flat Head/High Head
-
Product name:
-
12MM waterproof momentary metal push button switch
Quick Details
-
Protection Level:
-
IP67 IK10
-
Max. Current:
-
10A
-
Max. Voltage:
-
250V
-
Diameter:
-
12mm
-
Operation Type:
-
Momentary
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp Color:
-
Red Green Yellow Blue White Orange Purple Pink
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP67 IK10
-
Shell Metal:
-
Stainless Steel/Copper
-
Max Voltage:
-
250VAC
-
Head shape:
-
Flat Head/High Head
-
Product name:
-
12MM waterproof momentary metal push button switch
Product Description

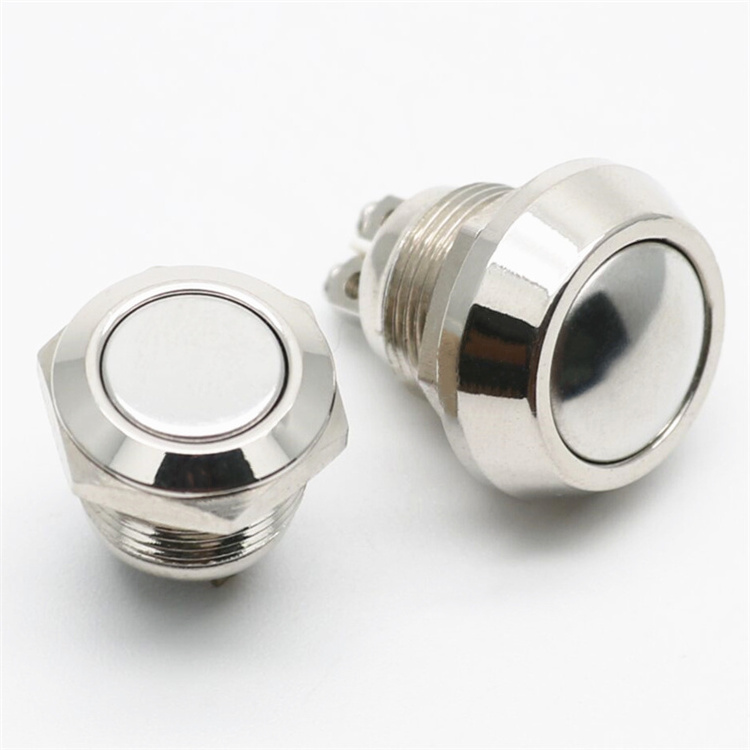

HF hot sell 12mm Momentary Start Horn Button Stainless Steel Metal Push button switch
| The Product Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.8mm,Total:3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤11mm or customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel/ copper plated/ aluminum oxide |
| Electrical Life |
100000 cycles |
Base material |
PA66 |
| Mechanical Life |
Latching-200,000 cycles Momentary-800,000 cycles |
Transmissive cover |
PC |
| Protection Level | IK10 | Pins Contact | Copper palted sliver |
| Waterproof Level | IP67 | Spring | Steel wire |
| Led Lamp Parameters | |
| Project | Parameter |
| Led Symbol |
Ring/Power Symbol/Dot/Ring+Power Symbol/Customized
|
| Led Color | Red , Green , Blue , Yellow , Orange , White , Purple , Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
