Quick Details
-
Cooling/Heating:
-
Cooling/Heating
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEGIM
-
Model Number:
-
LMVRF-01
-
COP:
-
> 21
-
Voltage (V):
-
220
-
Recommended Room Size（square feet）:
-
1000
-
Refrigerant:
-
R32
-
Power supply:
-
220-240V/1Ph/50Hz/60Hz
-
Compressor:
-
Rotary Compressor
-
Compressor name:
-
GMCC
-
Applicable temperature range:
-
-20~52
-
High Temp Resistance PCB:
-
Fireproof
-
Function:
-
Cooling\Heating
-
Low Noise:
-
19dB
-
Control type:
-
LED Remote
Quick Details
-
Capacity (btu):
-
9000-18000btu
-
EER:
-
21
-
Type:
-
Central Air Conditioners
-
Cooling/Heating:
-
Cooling/Heating
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEGIM
-
Model Number:
-
LMVRF-01
-
COP:
-
> 21
-
Voltage (V):
-
220
-
Recommended Room Size（square feet）:
-
1000
-
Refrigerant:
-
R32
-
Power supply:
-
220-240V/1Ph/50Hz/60Hz
-
Compressor:
-
Rotary Compressor
-
Compressor name:
-
GMCC
-
Applicable temperature range:
-
-20~52
-
High Temp Resistance PCB:
-
Fireproof
-
Function:
-
Cooling\Heating
-
Low Noise:
-
19dB
-
Control type:
-
LED Remote
Product Description

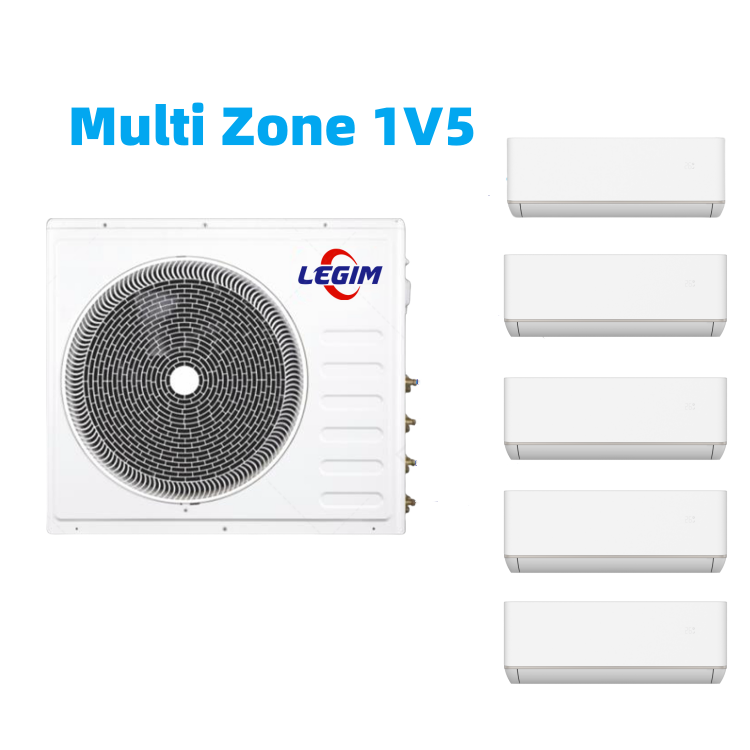

Multi Split Air Conditioner
Multi Zone Air Conditioner VRF
Air Conditioner,
Specification
|
Indoor unit specifications
|
|
|
|
|
|
|
||||||
|
Type
|
|
|
Heat Pump
|
|
|
|
||||||
|
Control type
|
|
|
Remote Controller / Smart App controller as optional feature
|
|
|
|
||||||
|
Cooling capacity
|
|
Btu/h
|
9000
|
12000
|
17500
|
|
||||||
|
Heating capacity
|
|
17800
|
|
|
|
|
||||||
|
Power supply
|
|
|
220-240V~/50HZ
|
|
|
|
||||||
|
Voltage Range
|
|
V
|
165~265
|
|
198~264
|
|
||||||
|
Outdoor unit specifications
|
|
|
|
|
|
|
||||||
|
Capacity
|
|
|
18000BTU
|
27000BTU
|
32000BTU
|
|
||||||
|
Cooling capacity
|
Btu/h
|
|
18000(4200~ 19100)
|
27000(9500~30000)
|
32000( 10600~35000)
|
|
||||||
|
|
W
|
|
5200( 1230~5600)
|
7900(2800~8800)
|
9400(3100~ 10200)
|
|
||||||
|
Heating capacity
|
Btu/h
|
|
18050(4400~ 19600)
|
27000(8350~30000)
|
32000(8700~35000)
|
|
||||||
|
|
W
|
|
5290( 1290~5750)
|
7960(2450~8800)
|
9450(2550~ 10200)
|
|
||||||
|
Phdesignc
|
Btu/h
|
|
18000
|
27000
|
32000
|
|
||||||
|
|
W
|
|
5200
|
7900
|
9300
|
|
||||||
|
Phdesignh
|
Btu/h
|
|
15000
|
19800
|
25000
|
|
||||||
|
|
W
|
|
4400
|
5800
|
7300
|
|
||||||
|
SEER (Class)
|
W/W
|
|
6.2 (A++)
|
6. 1 (A++)
|
|
|
||||||
|
SCOP (Class)
|
|
|
4.0 (A+)
|
|
|
|
||||||
|
EER
|
|
|
3.24
|
3.00
|
3.4
|
|
||||||
|
COP
|
|
|
3.73
|
3.75
|
3.71
|
|
||||||
