Quick Details
-
Brand Name:
-
ONESTO
-
Model Number:
-
ACS C2-CM80
-
Max. Current:
-
80A
-
No. of Pole:
-
1P+N
-
Rated voltage:
-
230V AC
-
Rated current:
-
10-80A
-
Power consumption:
-
4.5VA, 230V AC
-
Ambient temperature:
-
-5 to 55°C
-
Rated impulse voltage:
-
1.5kV
-
Dielectric strength:
-
2.0kV
-
LED indication:
-
Mains: Blue, Generator: Blue, Load: Green, Fault: Red
-
Dimension:
-
162*89*70mm
-
Comply with:
-
IEC60947-3/6
-
Certification:
-
CE, CB, TUV
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
230V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONESTO
-
Model Number:
-
ACS C2-CM80
-
Max. Current:
-
80A
-
No. of Pole:
-
1P+N
-
Rated voltage:
-
230V AC
-
Rated current:
-
10-80A
-
Power consumption:
-
4.5VA, 230V AC
-
Ambient temperature:
-
-5 to 55°C
-
Rated impulse voltage:
-
1.5kV
-
Dielectric strength:
-
2.0kV
-
LED indication:
-
Mains: Blue, Generator: Blue, Load: Green, Fault: Red
-
Dimension:
-
162*89*70mm
-
Comply with:
-
IEC60947-3/6
-
Certification:
-
CE, CB, TUV
Banner
Product Description

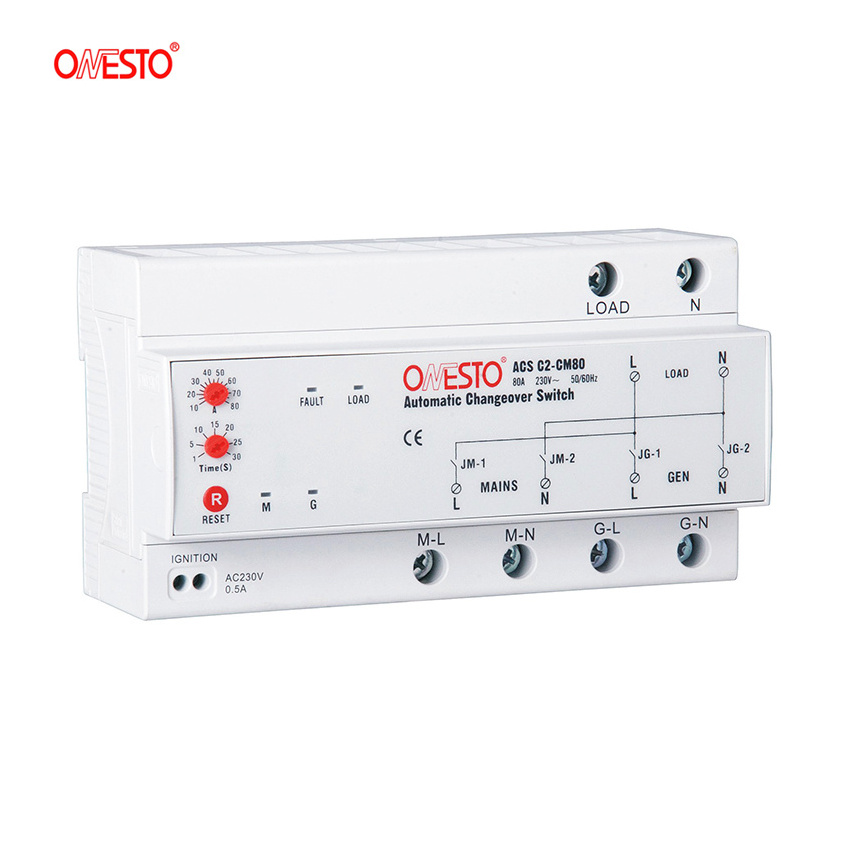

ACS is automatic changeover switch between Mains supply and backup Generators. When Mains supply fails, ACS will shift the supply on the Generator after 3 seconds to provide temporary power for essential circuits. When the Mains supply resumes, ACS will shift the supply back to Mains after the perset time delay.
Specification
| No. of Pole | 1P+N |
| Rated Voltage |
230V AC
|
| Rated current | 10-80A |
| Power consumption | 4.5VA, 230V AC |
| Ambient temperature | -5 to 55°C |
| Rated impulse voltage | 1.5kV |
| Dielectric strength | 2.0kV |
| LED indication | Mains: Blue, Generator: Blue, Load: Green, Fault: Red |
| Dimension | 162*89*70mm |
| Comply with | IEC60947-3/6 |
