Quick Details
-
Item:
-

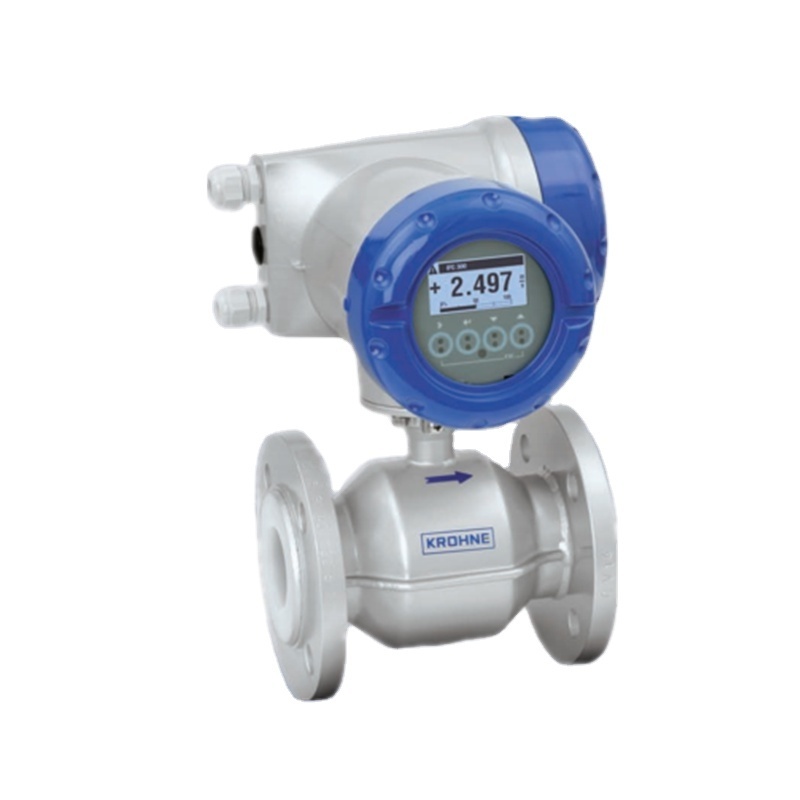

Krohne Optiflux2300c Optiflux4300f Electromagnetic Flowmeter
-
Measuring principle:
-
Faraday's law of induction
-
Application range:
-
Electrically conductive fluids
-
Primary measured value:
-
Flow velocity
-
Secondary measured value:
-
Volume flow
-
Accuracy:
-
0.3%
-
Diameter OPTIFLUX4100C:
-
DN2.5 to DN1200
-
Diameter OPTIFLUX4300C:
-
DN2.5 to DN3000
-
Remote version with IFC040 converter:
-
OPTIFLUX4040C
-
Remote version with IFC100 converter:
-
OPTIFLUX4100C
Quick Details
-
Place of Origin:
-
Germany
-
Brand Name:
-
KROHNE
-
Model Number:
-
OPTIFLUX4000
-
Item:
-
Krohne Optiflux2300c Optiflux4300f Electromagnetic Flowmeter
-
Measuring principle:
-
Faraday's law of induction
-
Application range:
-
Electrically conductive fluids
-
Primary measured value:
-
Flow velocity
-
Secondary measured value:
-
Volume flow
-
Accuracy:
-
0.3%
-
Diameter OPTIFLUX4100C:
-
DN2.5 to DN1200
-
Diameter OPTIFLUX4300C:
-
DN2.5 to DN3000
-
Remote version with IFC040 converter:
-
OPTIFLUX4040C
-
Remote version with IFC100 converter:
-
OPTIFLUX4100C
Krohne Optiflux2100c Optiflux4100f Optiflux2300c Optiflux4300f Electromagnetic Flowmeter
1.The measuring principle
As early as 1832, Michael Faraday tried to determine the speed of the current in the Thames by measuring the
voltage induced in flowing water by the earth’s magnetic field.
Electromagnetic
flow measurement is based on Faraday’s law of induction.
According to this law, a voltage is induced when an electric
conductive fluid flows through the magnetic field of
an electromagnetic flowmeter.
This voltage is proportional to the flow velocity of the medium.
2.Technical data for Krohne Electromagnetic Flow Meter
| Measuring principle | Faraday's law of induction |
| Application range | Electrically conductive fluids |
| Measured value | |
| Primary measured value | Flow velocity |
|
Secondary measured value |
Volume flow |
| Design | |
| Features | Fully welded maintenance-free senso |
| Large diameter range DN10...3000 | |
| Rugged liners approvedfor drinking water. | |
|
Large standard range but also available in customer specific diameter,
|
|
| Modular construction |
The measurement system consists of a flow sensor and a signal converter. It
|
| Compact version | With IFC 050 converter: OPTIFLUX 2050 C ,OPTIFLUX4050 C |
| With IFC 100 converter: OPTIFLUX 2100 C ,OPTIFLUX4100 C | |
| With IFC 300 converter: OPTIFLUX 2300 C ,OPTIFLUX4300 C | |
| Remote version | In wall (W) mount version with IFC 050 converter: OPTIFLUX 2050 W ,OPTIFLUX4050W |
| In wall (W) mount version with IFC 100 converter: OPTIFLUX 2100 W , OPTIFLUX4100W | |
|
In field (F), wall (W) or rack (R) mount version with IFC 300 converter:
|
|
| Measuring accuracy | |
| Reference conditions | Medium: water |
| Temperature: +10...+30°C / +50...+86° | |
|
Operating pressure: 1 bar / 14.5 psi |
|
| Inlet section ≥5 DN | |
| Electrical conductivity: ≥300 μS/cm | |
|
Maximum measuring error |
IFC 050: 0.5% of the measured value above 0.5 m/s; below 0.5 m/s, deviation
|
| IFC 100: down to 0.3% of the measured value ±1 mm/s | |
| IFC 300: down to 0.2% of the measured value ±1 mm/s | |
| The maximum measuring error depends on the installation conditions | |
| Repeatability | ±0.1% of the measured value, minimum 1 mm/s |
Q1:How long is your warranty?
A1:Normally our warranty is 18 months
Q2:How do you support the aftersale service?
A2:By phone call,by video chat,by sending our engineer to your work field
Q3:How do you pack and ship your products?
A3:We pack our product with protective filler inside(such as foam),and packed with stable paper or wood carton outside.
Normally we ship by express (DHL,FEDEX,UPS) and air,for big quantity we ship by sea.
Q4:Do you provide the free sample?
A4:Normally we do not provide free sample,but we can deduct the sample charge when you put final order.
Q5:Could we buy through Trade assurance of Alibaba?
A5:Absolutely,we highly recommend you to trade through the trade assurance service of Alibaba,if you could trade through it, we can give some discount according to the Amount.
Q6:How is the payment term?
A6:T/T, 100% inadvance.Krohne Instrument need 30% inadvane,the balance should be paid before shipment,check the goods is real Krohne.
