Save Costs Multipurpose Advanced Brick Making Machinery Mold For Concrete Post Manufacturer In China

Save Costs Multipurpose Advanced Brick Making Machinery Mold For Concrete Post Manufacturer In China

FOB Reference Price: Get Latest Price

≥1 Sets

US $966

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brick size:: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other

Place of Origin:: Henan, China

Brand Name:: KH

Voltage:: 220v/380v

Dimension(L*W*H):: 185*130*130cm

Weight (KG):: 380 kg

Product Name:: Brick Macking Machine

Raw material:: Cement,clay,etc.

Block Type:: Solid,Hollow,etc

Power:: According to the model

Forming time:: According to the model

Machine weight:: According to the model

Brick machine size:: According to the model

After Warranty Service:: Online

Pcs/mould:: According to the model

Quick Details

Type:: Hollow Block Making Machine, Paving Block Making Machine, Curbstone Block Machine, Other

Brick Raw Material:: Cement

Production Capacity (Pieces/8 hours):: 4480 pcs/8hours

Brick size:: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other

Place of Origin:: Henan, China

Brand Name:: KH

Voltage:: 220v/380v

Dimension(L*W*H):: 185*130*130cm

Weight (KG):: 380 kg

Product Name:: Brick Macking Machine

Raw material:: Cement,clay,etc.

Block Type:: Solid,Hollow,etc

Power:: According to the model

Forming time:: According to the model

Machine weight:: According to the model

Brick machine size:: According to the model

After Warranty Service:: Online

Pcs/mould:: According to the model

Product Description

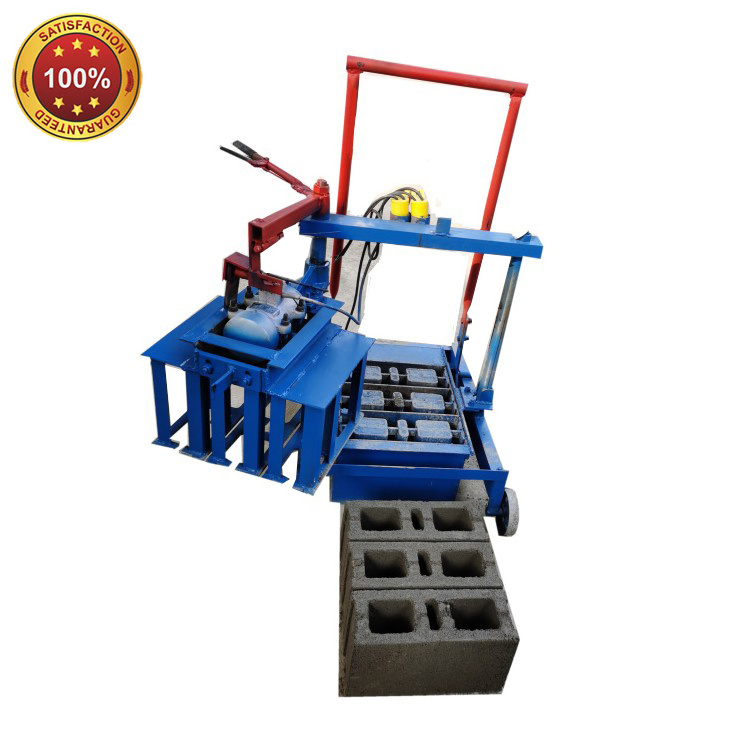

Brick making machine

Manual hollow block making machine is a miniature block machine of high quality, its main characteristic is saving electricity and saving work force , and can produce hollow blocks on cement floor without any pallet, especially suitable for small factories.

Features: 1. The body is all made of square steel welding, which is extremely strong and resistant to vibration and stable in operation. 2. The mold box adopts column sliding, compact coordination, synchronous and stable lifting, and the block forming rate is greatly improved. 3. The press head can be slid and displaced, greatly improving efficiency. 4. The lifting part of the mold box is installed to prevent the pressing head from damaging the machine during operation. 5. The four walls of the mold box are equally stressed to ensure high brick density and neat and beautiful edges and corners.

Application and Usage Effects

Applicable raw materials:

Employing sand, gravel, and cement, many industrial wastes such as fly ash, slag, steel slag, coal gangue, ceramsite, and perlite can be added in large quantities.

Appliaction:

Widely used in the construction of buildings, roads, squares, waterworks, gardens and other construction.

At present, many markets are still in the state of using hand-made bricks in large quantities for a long time, which not only takes time and labor, but also has low productivity and low efficiency. This small hand-made brick machine is a new type of machine developed according to the backward market demand. It is characterized by its simple equipment, easy operation and low investment. It is very suitable for the small-scale production and operation mode of family workshop in economically underdeveloped areas.

Specification

Model	KLZ-1
Power	1.1KW
Voltage	220V/380V
Weight	200KG
Size	900x700x1100mm
Operator	One person
Molding cycle	45s
Can be brick type	400X200X200(mm) 2 bricks at a time 390X190X190(mm) 2 bricks at a time 390X150X190(mm) 3 bricks at a time 390X120X190(mm) 4 bricks at a time 240X115X53(mm) 12 bricks at a time Different brick types have different output
Molds of different shapes of bricks can be customized for you!
