Quick Details
-
Model Number:
-
QJ-1024U4CB
Quick Details
-
Application:
-
Electric Folklifts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QUCC
-
Model Number:
-
QJ-1024U4CB
Product category
|
Type
|
Functional differences
|
|
6S~8S BMS
|
·Hall Current Sensor
·3-way relay control (charging, discharging and precharging). ·UART-BT、RS485、CAN. ·Other functions (12V output, switch). ·4-way temperature control |
|

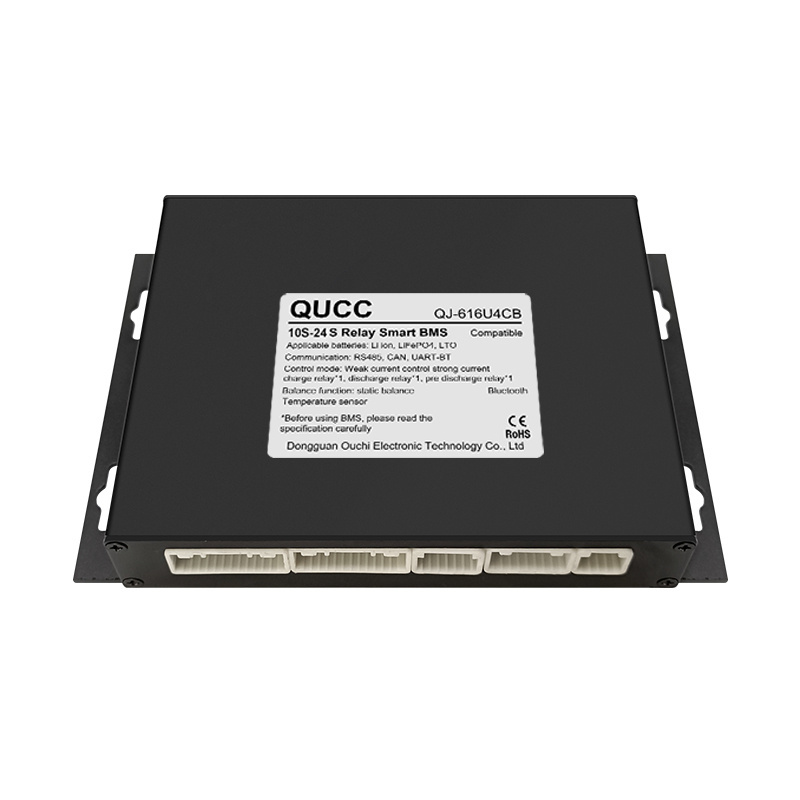

10S~24S BMS
|
·Hall Current Sensor
·3-way relay control (charging, discharging and precharging). ·UART-BT、RS485、CAN. ·Other functions (12V output, switch). ·4-way temperature control |
|
25S~32S BMS
|
·Hall Current Sensor
·3-way relay control (charging, discharging and precharging). ·UART-BT、RS485、CAN*2. ·Other functions (12V output, switch). ·4-way temperature control |
Product Paramenters
|
Parameters
|
|
Indicators
|
|
|
Current switch conductor
|
|
DC relay contactor
|
|
|
Support battery
|
|
Li-ion NMC、Lifepo4 LFP、LTO
|
|
|
Discharge current
|
|
According to relay selection
|
|
|
peak current
|
|
|
|
|
Charging current
|
|
|
|
|
Internal resistance
|
|
10mΩ
|
|
|
Input / output mode
|
|
Different ports
|
|
|
BMS switch
|
|
Passive switch
|
|
|
Working power consumption
|
|
50mA
|
|
|
Sleep power consumption
|
|
30μA
|
|
|
Balance current
|
|
80mA
|
|
|
Communication function
|
|
1 UART serial port, Bluetooth.
1 isolated RS485 interface, support Modbus protocol.
1 isolated CAN2.0B interface.
|
|
|
Single cell voltage
|
Acquisition range
|
0～5V
|
|
|
|
Detection error
|
≤±0.1%
|
|
|
Total battery pressure
|
Acquisition range
|
Battery voltage range
|
|
|
|
Detection error
|
≤±0.2%
|
|
|
Charge discharge current
|
Acquisition range
|
Hall Current Sensor 600A
|
|
|
|
Detection error
|
±1 %
|
|
|
temperature
|
Acquisition range
|
-40～125℃
|
|
|
|
Detection error
|
±1℃
|
|
