Quick Details
-
Brand Name:
-
Convey
-
Model Number:
-
CVB400-30-45
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
60HP
-
Power Source:
-
Diesel Engine/Motor
-
Outlet Size:
-
DN200mm
-
Power:
-
45kw, Diesel/Electric
-
Product name:
-

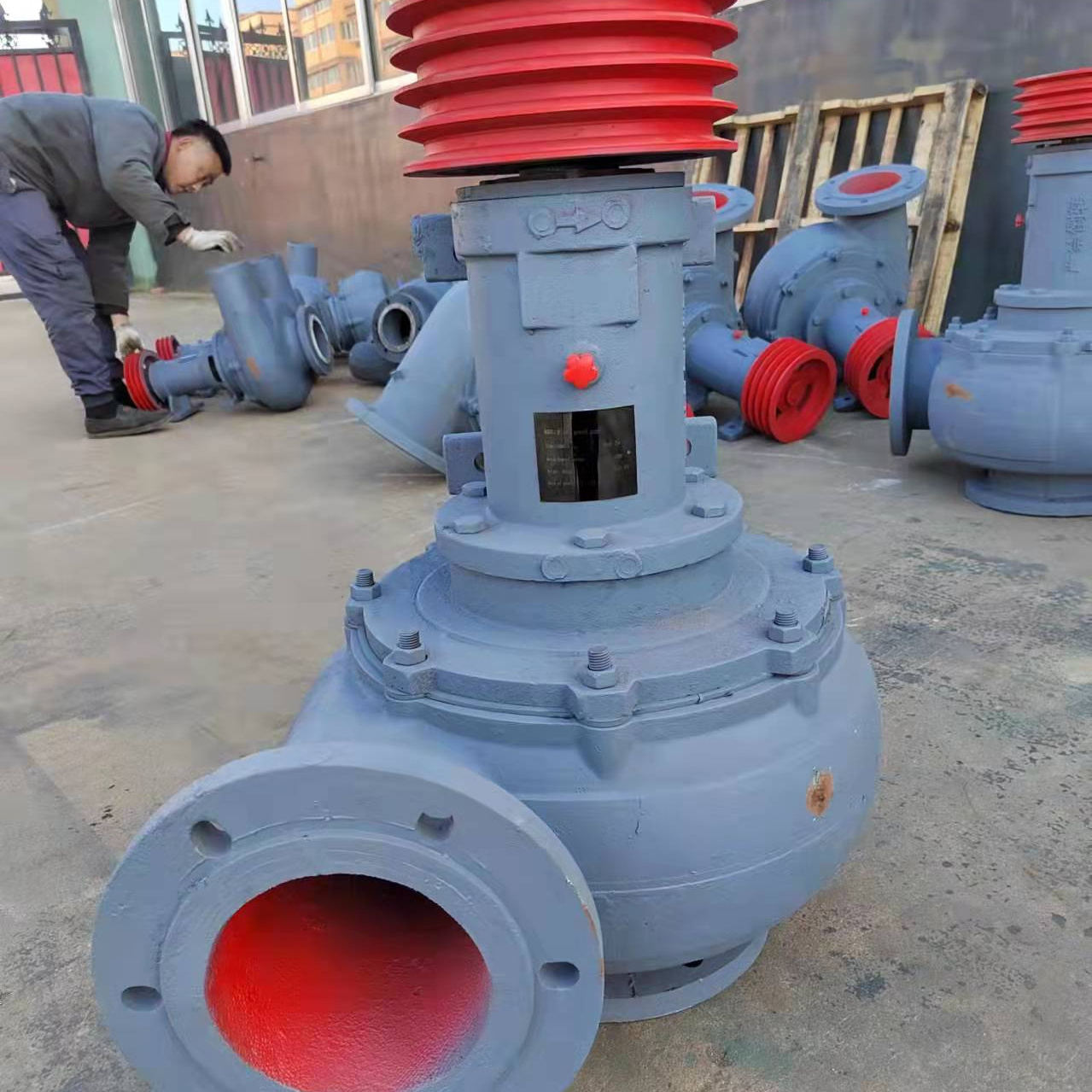

8 inch sewage pump sand dredging slurry
-
Type:
-
centrifugal
-
Flow rate:
-
400m3/h
-
Head:
-
0-30m
-
Outlet dia:
-
200mm
-
Speed:
-
1200r/min
-
Material:
-
Cast Iron
-
Seal:
-
Packing
-
Certification:
-
ISO9001
Quick Details
-
Application:
-
Commercial Buildings, Developing World Water Solutions, District Energy, Industrial Utilities, Marine, Mining industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment
-
Voltage:
-
user requirement
-
Warranty:
-
1 Year
-
Brand Name:
-
Convey
-
Model Number:
-
CVB400-30-45
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
60HP
-
Power Source:
-
Diesel Engine/Motor
-
Outlet Size:
-
DN200mm
-
Power:
-
45kw, Diesel/Electric
-
Product name:
-
8 inch sewage pump sand dredging slurry
-
Type:
-
centrifugal
-
Flow rate:
-
400m3/h
-
Head:
-
0-30m
-
Outlet dia:
-
200mm
-
Speed:
-
1200r/min
-
Material:
-
Cast Iron
-
Seal:
-
Packing
-
Certification:
-
ISO9001
Product Description
The overflow parts of this series of slurry pump are made of high hard alloy cast iron, which has high abrasion resistance, corrosion resistance and impact resistance, so as to improve the service life of the pump.The pump of each specification and diameter has different impeller diameter according to different head. The transmission mode can adopt direct connection, belt, hydraulic, frequency conversion speed regulation and other forms, and can also operate in series or parallel according to the needs of customer.
1. Large flow, wear-resistant pump case;
2. Non-clogging structure, half-open impeller;
3. Diesel engine&motor drive, direct connection or pulley;
4. Provide operation guidance and technical support, all-weather after-sales service.
2. Non-clogging structure, half-open impeller;
3. Diesel engine&motor drive, direct connection or pulley;
4. Provide operation guidance and technical support, all-weather after-sales service.
Specification
|
Model
|
Capacity
(m³/h)
|
Head
(m)
|
Speed
(r/min)
|
Power
(KW/HP)
|
Outlet DN
(mm)
|
|
CVB120-30-15
|
120
|
30
|
1400
|
15/20
|
100
|
|
CVB200-30-25
|
200
|
30
|
1400
|
25/35
|
150
|
|
CVB400-30-45
|
400
|
30
|
1200
|
45/60
|
200
|
|
CVB800-30-90
|
800
|
30
|
1200
|
90/125
|
250
|
|
CVB1200-30-170
|
1200
|
30
|
1000
|
17/230
|
300
|
