Quick Details
-
Product name:
-
Eye Pressure Pulse Air Puff Non Contact Tonometer
-
Display:
-
7" TFT LCD Color Touch Screen
-
Corneal power:
-
33.00m-1~67.00m-1
-
Corneal astigmatism:
-
0.00m-1~15.00m-1
-
Corneal diameter:
-
2.00~ 12.00mm
-
Corneal Measurement:
-
Axis 0°~180° (Step 1°)
-
Printer:
-
57mm Printer Included
-
Power Supply:
-
AC220V; 50HZ
-
Dimension:
-
280*530*480
-
Weight:
-
18kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MSL
-
Model Number:
-
MSLAT100
-
Product name:
-
Eye Pressure Pulse Air Puff Non Contact Tonometer
-
Display:
-
7" TFT LCD Color Touch Screen
-
Corneal power:
-
33.00m-1~67.00m-1
-
Corneal astigmatism:
-
0.00m-1~15.00m-1
-
Corneal diameter:
-
2.00~ 12.00mm
-
Corneal Measurement:
-
Axis 0°~180° (Step 1°)
-
Printer:
-
57mm Printer Included
-
Power Supply:
-
AC220V; 50HZ
-
Dimension:
-
280*530*480
-
Weight:
-
18kg
Product Description
Specification
Product features:
Auto tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable
judgment and measurement results, and easy to operate. The air non-contact approach to measure IOP can also be used for corneal thickness
Performance Features:
1. Auto 3-D positioning of xyz results in precise and reliable measurement.
2. Full-auto measurement for both right and left eye data without manual switch.
3. Easy to operate the tonometer with color touch monitor.
4. Stable data of IOP through soft air measurement .
5. To compensate corneal thickness measurement of IOP.
Auto tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable
judgment and measurement results, and easy to operate. The air non-contact approach to measure IOP can also be used for corneal thickness
Performance Features:
1. Auto 3-D positioning of xyz results in precise and reliable measurement.
2. Full-auto measurement for both right and left eye data without manual switch.
3. Easy to operate the tonometer with color touch monitor.
4. Stable data of IOP through soft air measurement .
5. To compensate corneal thickness measurement of IOP.

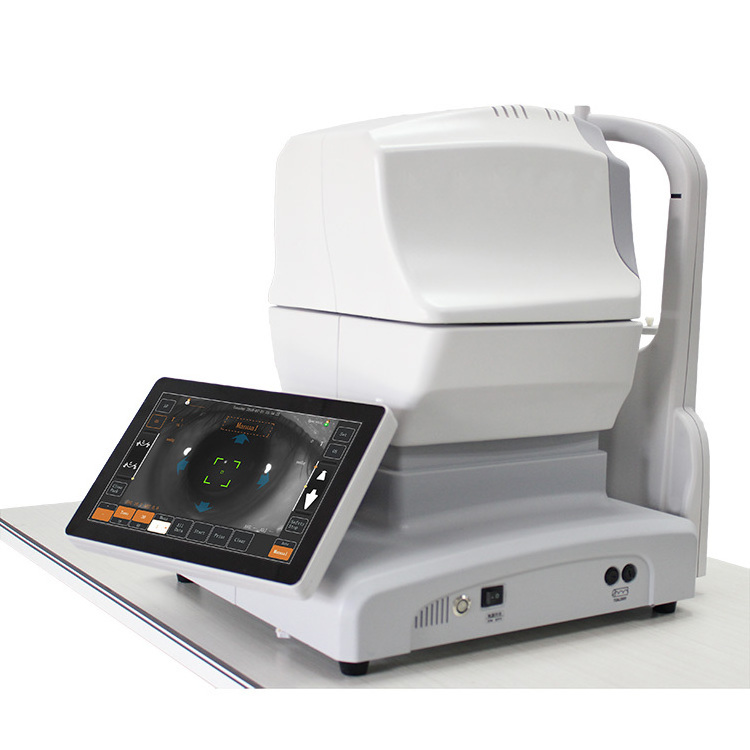

MSLAT100p is a non-contact tonometer with automatic alignment. The test of intraocular pressure is an important index for clinical diagnosis of ophthalmology. Our MSLAT100p non-contact tonometer adopts non-contact measurement with no risk of infection, simple operation and easy acceptance by patients. MSLAT100p adopts Imber-Fick principle and USES controllable air pulse with linear increasing characteristics to squeeze the central position of the cornea and deform the cornea to form a circular plane with a diameter of about 3.6mm2. It is considered that the air pressure at this time is equal to the pressure inside the eyeball, and the measured air pressure at this time is the value of the intraocular pressure directly.
|
Intraocular pressure (IOP) measuring range
|
1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg)
|
|
Measuring system
|
dual sensor system of light and pressure
|
|
Working distance
|
≥11mm
|
|
R/L
|
automatic detection and display
|
|
Measuring result
|
10 times per eye; 3 times result printing per eye
|
|
Recording
|
build-in printer
|
|
Measuring mode
|
auto/manual
|
|
Focus
|
when luminous spot is in the focus frame, 2 modes can be chosen.
auto mode: auto intraocular pressure measurement manual mode: when it's good focus, the frame will turn yellow into green, and click to start the measurement |
|
Error indication
|
if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR ”
|
|
Safety limit button
|
install measurement for minimum distance between head and patient
|
|
Safety functions
|
the distance between air nozzle and cornea
is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head. |
|
Movement range
|
≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical)
|
|
Jaw layer vertical movement
|
0~65mm with under jaw layer
|
|
Display mode
|
10.1-inch HDMI color LED touch monitor
|
|
Output port
|
USB2.0
|
|
Working platform
|
electric elevating platform
|
|
Weight
|
19.7kg
|
|
size
|
380 mm (L) x 460mm (W) x 505mm (H)
|
|
Power supply
|
220V/50HZ
|
