Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
penghui
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
1206*860*1660mm
-
Weight:
-
210 KG
-
Application:
-
Peanut Shell Machine
-
Function:
-
Peanut Shell
-
Usage:
-
Hard Shell Remove
-
Suit for:
-
Peanut(groudnut) shell
-
Capacity:
-
500-800kg/h
-
Material:
-
Stainless Steel
-
Color:
-
Customer Inquirments
-
Operator:
-
Easily
-
MOQ:
-
1 Set
-
Packing:
-
Wooder Box
Quick Details
-
Type:
-
Shelling Machine
-
Use:
-
Peanut Shell
-
Production Capacity:
-
500-800kg
-
Place of Origin:
-
China
-
Brand Name:
-
penghui
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
1206*860*1660mm
-
Weight:
-
210 KG
-
Application:
-
Peanut Shell Machine
-
Function:
-
Peanut Shell
-
Usage:
-
Hard Shell Remove
-
Suit for:
-
Peanut(groudnut) shell
-
Capacity:
-
500-800kg/h
-
Material:
-
Stainless Steel
-
Color:
-
Customer Inquirments
-
Operator:
-
Easily
-
MOQ:
-
1 Set
-
Packing:
-
Wooder Box

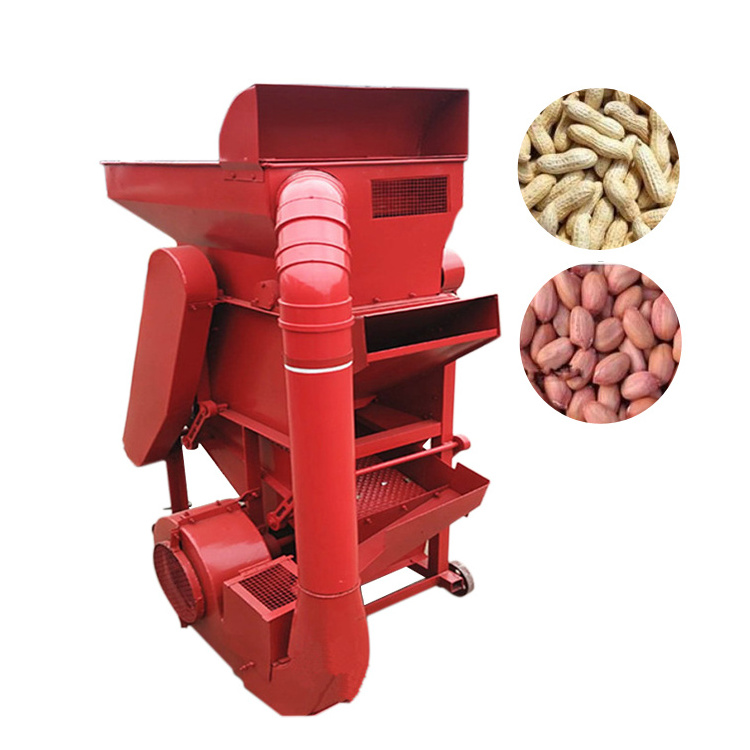

Commercial Electric Peanuts Hulling Groundnut Peeling Machine Peanut Shell Machine
Description:
The unique design of sheller makes peanut shelling, air supply and separation integrated. The machine can be used as a supporting equipment of oil processing machinery, and also widely used in peanut food processing industry. Peanut sheller is composed of frame, fan, rotor, single-phase motor, screen (both large and small), feeding hopper, vibrating screen, V-belt pulley and its driving V-belt. After the normal operation of the machine, the peanut is put into the hopper quantitatively, evenly and continuously. Under the repeated impact, friction and collision of the rotor, the peanut shell is broken. Under the rotating wind pressure and impact of the rotor, the peanut seeds and broken peanut shells pass through the screen with a certain aperture (the first threshing of peanuts is carried out with a large mesh screen, and the small peeled fruits after cleaning are replaced by a small hole screen for the second shelling). At this time, the peanut shells and seeds are blown out of the machine by the blowing force of the rotary fan, and the peanut shells with light weight are blown out of the machine The purpose of the election.
Feature:
- Shelling and rolling adopts the principle of dry peeling with wooden roller and grading seed selection by electric screen.
- High quality imported wood is used for shelling and rolling, and the rate of seed damage is very low. The shell adopts iron plate powder spraying technology, which is beautiful and durable.
- The motor voltage is 220 V/380v and the power is 1.5 kW. New copper wire motor, longer life.
- After careful design of the special blower, the wind degree is moderate, the wind distribution is uniform, can effectively separate the seed and the shell, optimize the seed recovery rate.
- The sheller is equipped with high-quality universal wheel, with unique side mounted design, easy to move.
- Small size, efficient and convenient. The shelling rate is more than 99%.
- Each machine is equipped with three grates, which can be used for shelling peanuts of different sizes.
Parameter:
| Model | PH-700 |
| Power | 1.5kw |
| Voltage | 380v/220v |
| Capacity | 500-800kg/h |
| Sheller rate | >99% |
| Breaking rate | < 2% |
| Total weight | 210kg |
| Size(mm) | 1206*860*1660 |
Package:
Standard export Wooden box packing.
Delivery time:
3-20 days after confirming order, detail delivery date should be decided according to shipping.
Pre-sales Service:
1. Inquiry and consulting support
2. Offerring more machine information as clients requested
3. View our factory
4. 24Hours on line to solve any questions
After sale service:
1. One year warrantee
2. Training how to operate the machine and how to use the machine
