Quick Details
-
Processor Core:
-
10 Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JWIPC
-
Model Number:
-
K105F
-
Power:
-
28W
-
Operating System:
-
Windows11/Window10
-
Chipset Type:
-
Integrated
-
Processor Series:
-
Intel Core I3/I5/I7
-
Video Memory:
-
Graphics Base Frequency
-
Video Card:
-
Intel Iris Xe Graphics
-
Product Name:
-
portable computer dual lan display fanless mini pc
-
Multi displays:
-
Support 3 displays
-
Display Port:
-
2x HDMI2.0 ,4K/60Hz ; 1x DP1.4 , 8K30Hz
-
LAN:
-
2 x Realtek 8111H 1000M
-
RAM:
-
2 x SO-DIMM DDR4 ,3200MHz Max. 32GB
-
Audio:
-
Realtek ALC662 HD Audio IC
-
Storage:
-
1 x 2280 M.2, NVMe PCIe x2 SSD Signal, Co-Lay M.2 SATA SSD
-
4G/5G Module:
-
1 x M.2 3042/3052 4G/5G Module
-
Processor:
-
Intel ALDER Lake-P,TDP 15W
-
Keywords:
-
2 Ethernet Mini Pc
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
SSD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
10 Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JWIPC
-
Model Number:
-
K105F
-
Power:
-
28W
-
Operating System:
-
Windows11/Window10
-
Chipset Type:
-
Integrated
-
Processor Series:
-
Intel Core I3/I5/I7
-
Video Memory:
-
Graphics Base Frequency
-
Video Card:
-
Intel Iris Xe Graphics
-
Product Name:
-
portable computer dual lan display fanless mini pc
-
Multi displays:
-
Support 3 displays
-
Display Port:
-
2x HDMI2.0 ,4K/60Hz ; 1x DP1.4 , 8K30Hz
-
LAN:
-
2 x Realtek 8111H 1000M
-
RAM:
-
2 x SO-DIMM DDR4 ,3200MHz Max. 32GB
-
Audio:
-
Realtek ALC662 HD Audio IC
-
Storage:
-
1 x 2280 M.2, NVMe PCIe x2 SSD Signal, Co-Lay M.2 SATA SSD
-
4G/5G Module:
-
1 x M.2 3042/3052 4G/5G Module
-
Processor:
-
Intel ALDER Lake-P,TDP 15W
-
Keywords:
-
2 Ethernet Mini Pc
ODM/OEM
We can support OEM/ODM service, and Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
We also have Thick Client, J1900 Mini PC,
mini computer,
digital signage player,
portable computer dual lan display fanless mini pc
and so on. If you have inquiry of different Mini PC,
freely click here
or below picture to contact us.

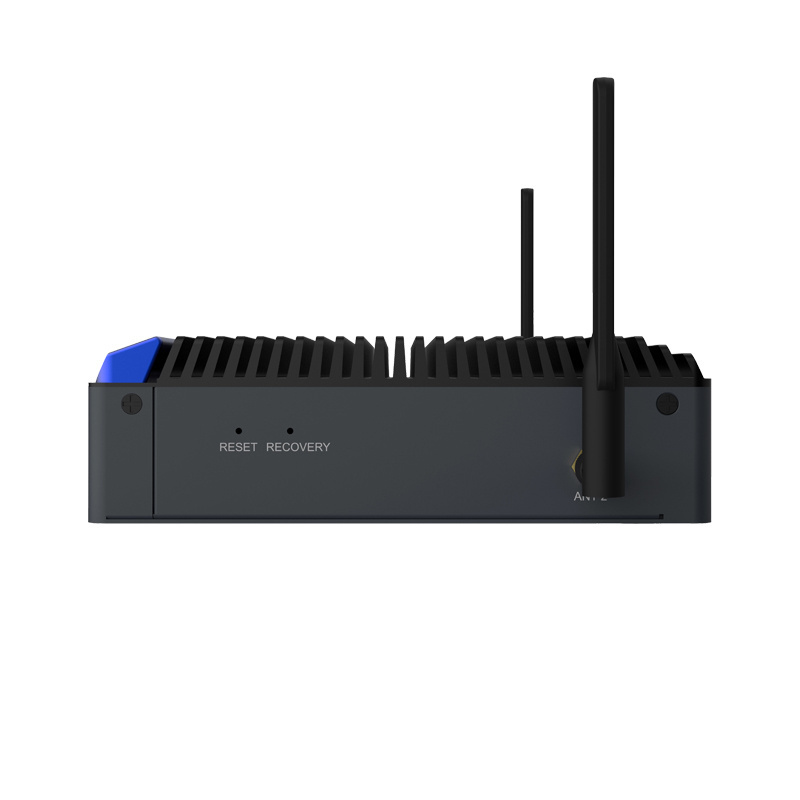

Products Description
Intel® Alder Lake-P platform
Main Stream Digital Signage Player
Mini PC Fanless Barebone System for Digital Signage
Features
Intel® Alder Lake-P platform
Dual So DIMM DDR4 Memory
2 x USB3.1, 1 x Type-C, 4 x USB2.0
Dual Ethernet Port
Support M.2 WIFI Moduel
Three displays：2* HDMI+DP Display
The K105 main chip adopts Intel's new 12th-generation Alder Lake-P platform, a subversive architecture, capable of multi-tasking and parallelism, and a built-in AI acceleration engine, bringing a smooth and incomparable experience. All these allow K105 to bring you a brand new digital signage experience.
K105 mainstream digital signage player, dual-channel DDR4 memory brings double the data transmission bandwidth. Abundant expansion interfaces include 3-way USB3.0, 3-way USB2.0. Dual Gigabit network to ensure data transmission security, M.2 WIFI module can be expanded according to demand, also as a mainstream digital signage player, K105 supports 2* HDMI+DP, three-way high-definition 4K display output, three-screen synchronous and different display, With the JWIPC information release system solution, it can perfectly solve the information display and advertisement display in any place.
|
Processor
|
Intel® ALDER Lake-P,TDP 15W
|
|
|
|
Memory
|
2 x So DIMM DDR4 ,3200MHz Max. 32GB
|
|
|
|
Storage
|
1 x 2280 M.2, NVMe PCIe x2 SSD Signal, Co-Lay M.2 SATA SSD
1 x 2.5’’ SATA Interface |
|
|
|
Graphics
|
Intel Iris Plus Graphics
|
|
|
|
Wireless/BT
|
1 x M.2 2230
Support 802.11 b/g/n/ac/ax/BT |
|
|
|
4G/5G Slot
|
1 x M.2 3042/3052 4G/5G Module
|
|
|
|
TPM
|
Physical TPM2.0 Chip (Optional）
|
|
|
|
Network
|
2 x RTL 8111H Gigabit Ethernet card
|
|
|
|
Audio
|
Realtek ALC897 HD Audio IC
|
|
|
|
Rear I/O interface
|
HDMI_1
|
HDMI2.0 ，4K/60Hz
|
|
|
|
HDMI_2
|
HDMI2.0 , 4K60Hz
|
|
|
|
DP
|
DP1.4 ，8K/30Hz
|
|
|
|
RJ45
|
2 , With Ethernet Link/Active Led
|
|
|
|
USB2.0
|
4
|
|
|
|
DC IN
|
12-19V DC IN, 2.5/5.5 DC Jack
|
|
|
Front I/O interface
|
Type-C
|
1 (USB Data Only)
|
|
|
|
USB3.1
|
2
|
|
|
|
Line out
|
1 , 3.5mm
|
|
|
|
Mic in
|
1 , 3.5mm
|
|
|
|
Power button
|
1，With Green Led
|
|
|
|
HDD-Led
|
1, Red Led
|
|
|
Other I/O
|
COM
|
2, DB-9 (RS232)
|
|
|
|
Reset Button
|
1
|
|
|
|
Recovery Button
|
1
|
|
|
Watchdog
|
Support
|
|
|
|
Dimension
|
190(L)*148(W)*40(H) mm
|
|
|
|
Mounting
|
Support
|
|
|
|
Working enviroment
|
Working temperture : -5℃~45℃
Storage temperture: -20℃~70℃ |
|
|
|
Relative humidity
|
10%~90% （non-condensing）
|
|
|
K105 mainstream digital signage player, dual-channel DDR4 memory brings double the data transmission bandwidth. Abundant expansion interfaces include 3-way USB3.0, 3-way USB2.0. Dual Gigabit network to ensure data transmission security, M.2 WIFI module can be expanded according to demand, also as a mainstream digital signage player,
mini computer fanless
K105 supports 2* HDMI+DP, three-way high-definition 4K display output, three-screen synchronous and different display, With the JWIPC information release system solution, it can perfectly solve the information display and advertisement display in any place.
