Quick Details
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
610mm*400mm*680mm
-
Weight (KG):
-
200
-
Power (kW):
-
4/5.5
-
Name:
-
FY400
-
Application:
-
tool grinder
-
Keywords:
-
lathe tool post grinder
-
Spindle speed:
-
1672rpm
-
Grinding wheel linear speed:
-
35m/s
-
Advantage:
-
High Productivity
-
Grinding wheel size:
-
400*127(203)*40(50)mm
-
Spindle taper jumping:
-
below 0.005mm
-
Spindle direction jumping:
-
below 0.005mm
-
Weight:
-
200kg
-
After-sales Service Provided:
-
Online support, Free spare parts, Field maintenance and repair service, Video technical support, Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Tajikistan, UAE, Mexico, Chile, Morocco, Romania, Colombia, Canada, Saudi Arabia, Egypt, Peru, Kyrgyzstan
-
Certification:
-
CE ISO
Quick Details
-
Year:
-
2021
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMTCNC
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
610mm*400mm*680mm
-
Weight (KG):
-
200
-
Power (kW):
-
4/5.5
-
Name:
-
FY400
-
Application:
-
tool grinder
-
Keywords:
-
lathe tool post grinder
-
Spindle speed:
-
1672rpm
-
Grinding wheel linear speed:
-
35m/s
-
Advantage:
-
High Productivity
-
Grinding wheel size:
-
400*127(203)*40(50)mm
-
Spindle taper jumping:
-
below 0.005mm
-
Spindle direction jumping:
-
below 0.005mm
-
Weight:
-
200kg
-
After-sales Service Provided:
-
Online support, Free spare parts, Field maintenance and repair service, Video technical support, Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Tajikistan, UAE, Mexico, Chile, Morocco, Romania, Colombia, Canada, Saudi Arabia, Egypt, Peru, Kyrgyzstan
-
Certification:
-
CE ISO
Product Description
Specification
|
Specification
|
FY400
|
|
Spindle taper jumping
|
below 0.005mm
|
|
Spindle direction jumping
|
below 0.005mm
|
|
Spindle speed
|
1672rpm
|
|
Grinding wheel linear speed
|
35m/s
|
|
Spindle diameter
|
φ65mm
|
|
Motor Power
|
4/5.5kw
|
|
Grinding wheel size
|
φ400*φ127（203）*φ40（50）mm
|
|
Distance from spindle center to the bottom of the grinding head
|
200mm
|
|
Distance from spindle center to grinding head surface
|
85mm
|
|
Weight
|
200kg
|
|
Dimensions(L*W*H)
|
610mm*400mm*680mm
|
Overview

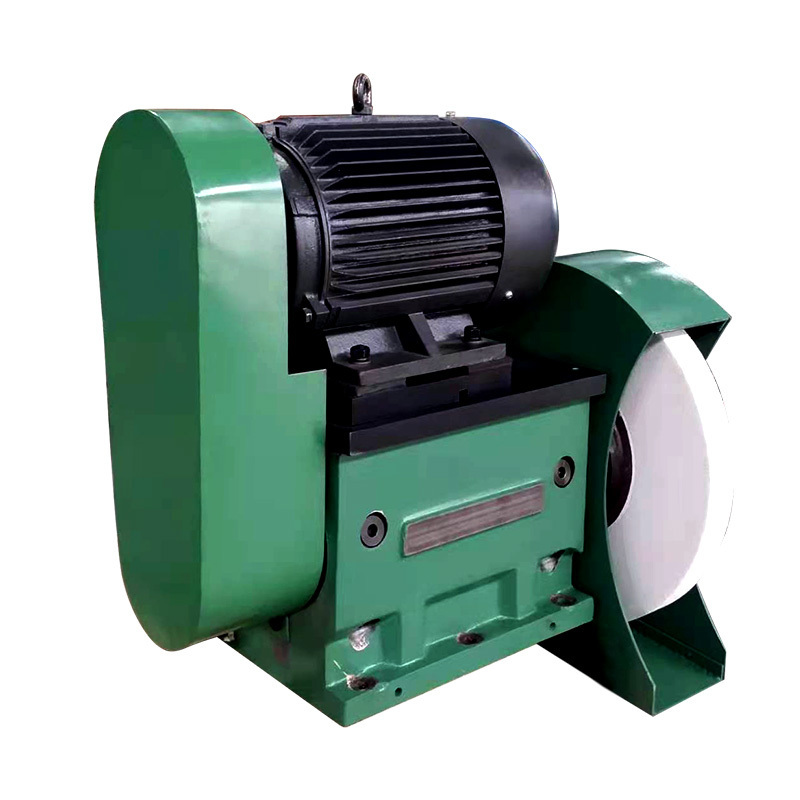

The spindle of this grinding head has been carefully designed and is made of alloy steel after heat treatment and a reasonable process, with high rigidity and wear resistance. The machine base is made of high-quality materials, two aging treatments, andhigh-precision coordinate boring; the front and rear bearings of the spindle adopt sliding bearings. High precision, low oil temperature rise. The motor spindle and the grinding head spindle are balanced, and the multi-ribbed belt drives, the transmission is quiet and noiseless, and the whole machine moves smoothly.
The spindle of this grinding head has been carefully designed and is made of alloy steel after heat treatment and a reasonable process, with high rigidity and wear resistance. The machine base is made of high-quality materials, two aging treatments, andhigh-precision coordinate boring; the front and rear bearings of the spindle adopt sliding bearings. High precision, low oil temperature rise. The motor spindle and the grinding head spindle are balanced, and the multi-ribbed belt drives, the transmission is quiet and noiseless, and the whole machine moves smoothly.
Features
The structure is simple and novel, and the installation is convenient. The base can be configured according to the lathe model specifications. Suitable for CW6180, CW61100, CW61125, CW61140, CW61160, CW61180, CW61200 and other lathes.
The structure is simple and novel, and the installation is convenient. The base can be configured according to the lathe model specifications. Suitable for CW6180, CW61100, CW61125, CW61140, CW61160, CW61180, CW61200 and other lathes.
Packing & Delivery
Our Hot Sale FY400 Precision Lathe Tool Post Grinder
Is Well Packed Into Plywood Case.
