3/4 inch 2 Way Hose Tap Connector Two Way Garden Water Hose Y Splitter Brass Manifold with Ball Valve

3/4 inch 2 Way Hose Tap Connector Two Way Garden Water Hose Y Splitter Brass Manifold with Ball Valve

FOB Reference Price: Get Latest Price

≥3000 Pieces

US $2.5

≥5000 Pieces

US $2.4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: Y hose adapter-1

Outlet:: external thread 26mm outer diameter (3/4 inch)

Inlet:: internal thread inside diameter 25mm (3/4 inch)

Body Material:: Solid Brass Body

Quick Details

Material:: Metal

Place of Origin:: Zhejiang, China

Brand Name:: V&G

Model Number:: Y hose adapter-1

Outlet:: external thread 26mm outer diameter (3/4 inch)

Inlet:: internal thread inside diameter 25mm (3/4 inch)

Body Material:: Solid Brass Body

Product Overview

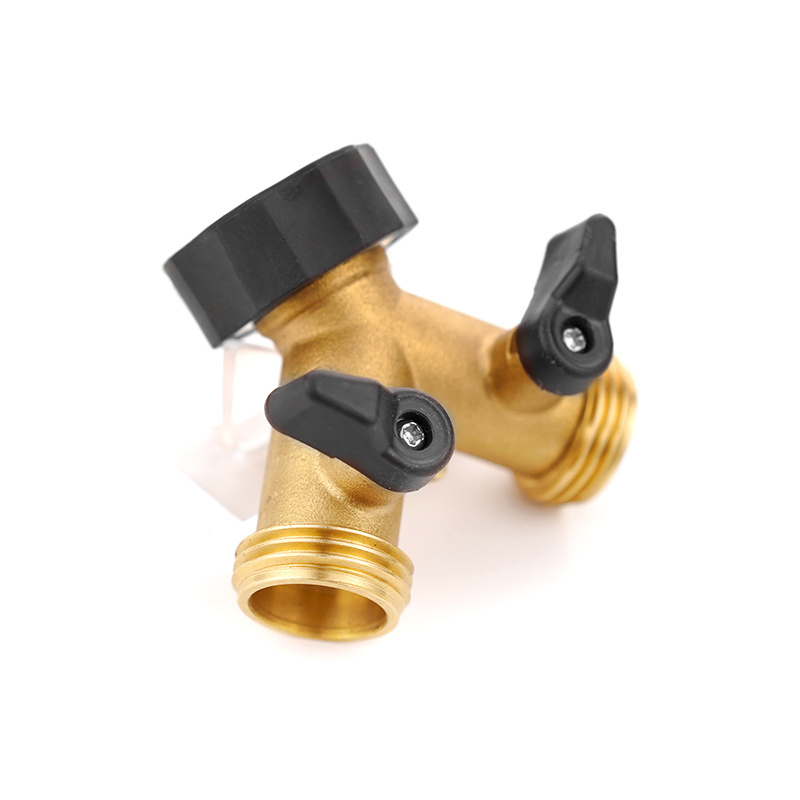

Garden 2 way y shaped shutoff brass hose splitter

Converts a single water outlet into 2ways, very convenient for you to control the work in different places at the same time. Made of high quality heavy duty brass materials, solid and durable, corrosion proof and has a long service time.Both hose connector can be turned on and off individually, so you can use one or others according to your need.

FEATURES AT A GLANCE

* Maximum pressure: up to 80psi(551.58kpa)
* Package include:
* 1 x 2 way hose splitter
* 2 x O-rings

Notes:

1. Please choose the correct hose size.
2. To prevent leakage, make sure the connector has rubber ring.
3. When the weather gets cold, be sure to remove the hose splitter from the faucet.
4. If water leaks after a long period of use, please replace with a new washer.
5. Always disconnect the accessory when finished using it.
6. Do not leave the fitting unattended or under pressure when not in use.

No	Item	Data
1	Material	Brass HPb58-2.5 (corresponding to American brand C38500)
2	Supply capacity	1000000 pcs/month
3	Minimum order	500 pieces
4	Conventional packing	in the box/carton or as each customer required
5	Application	Y Hose Splitter Easily Converts 1 Spigot into 2 Water Sources,Made for Home, Garden and Backyard Use.

Drawing No.	Description	Material
1	Body	Brass(C46500)
2	Bonnet	Brass(C46500)
3	Seat	PTFE
4	Ball	Brass(C46500)
5	Stem	Brass(HPb59-3L)
6	O-Ring	EPDM
7	Handle
8	Screws	304
9	Adapter tube	Brass(C46500)
10	Hexagonal nuts
11	Rubber pad	EPDM
12	O-Ring	EPDM
