Quick Details
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
750*300
-
Year:
-
2023
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
1960*1480*1850
-
Weight (KG):
-
1530
-
Power (kW):
-
2.2
-
Table size:
-
750*300
-
Product name:
-
MY1230 Surface Grinding Machine
-
Wheel speed:
-
1450r/min
-
Hydraulic motor:
-
2.2kw
-
Working pressure:
-
4 Mpa
-
Spindle motor:
-
2.2kw
-
Oil tank capacity:
-
100L
Quick Details
-
Grinding Length(mm):
-
750
-
Table Travel (X) (mm):
-
780
-
Table Travel (Y) (mm):
-
320
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
750*300
-
Year:
-
2023
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
1960*1480*1850
-
Weight (KG):
-
1530
-
Power (kW):
-
2.2
-
Table size:
-
750*300
-
Product name:
-
MY1230 Surface Grinding Machine
-
Wheel speed:
-
1450r/min
-
Hydraulic motor:
-
2.2kw
-
Working pressure:
-
4 Mpa
-
Spindle motor:
-
2.2kw
-
Oil tank capacity:
-
100L
|

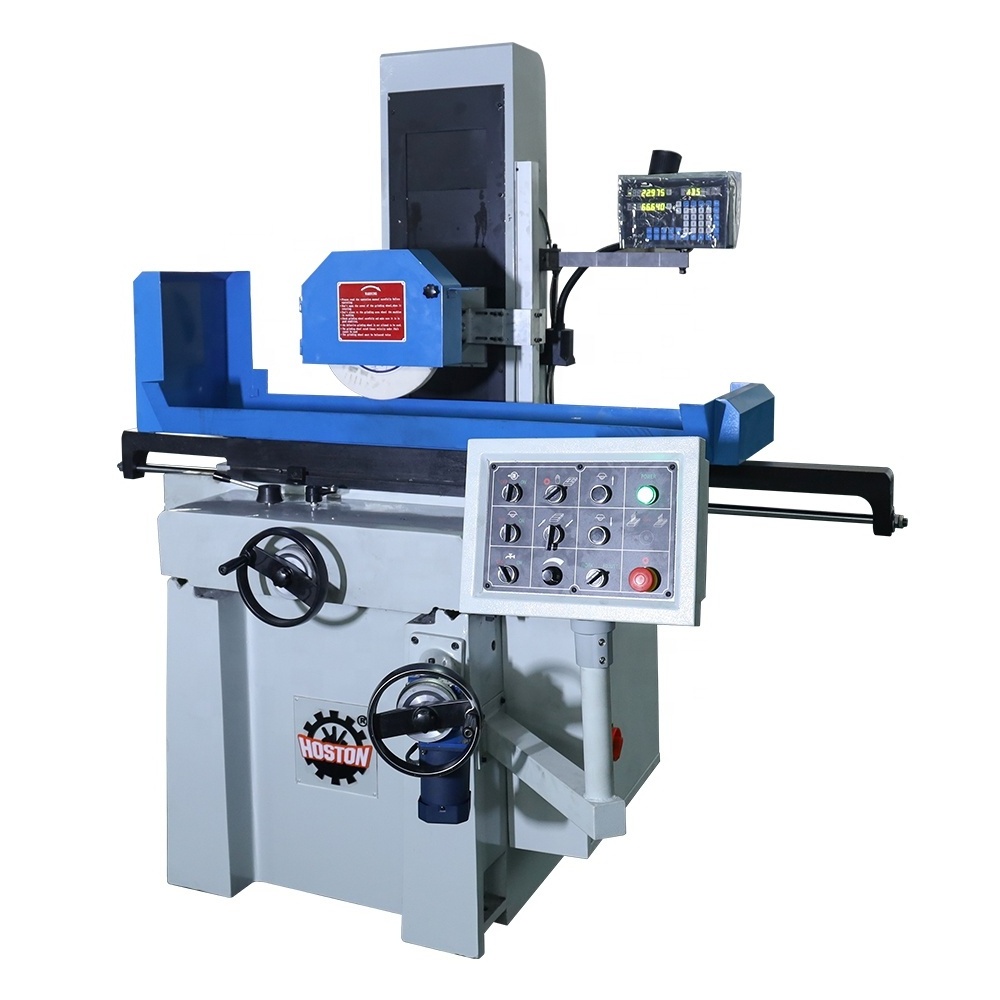

Hoston Hydraulic S urface G rinder MY1230 1. The machine tool has reasonable structure, good rigidity, beautiful appearance and convenient operation. 2. The horizontal movement of the worktable adopts hydraulic transmission, and the front and rear electric devices are optional according to customer requirements. 3. The spindle bearing adopts P4 grade precision rolling bearing. 4. The main shaft of the machine tool adopts labyrinth seal, which has good waterproof and dustproof performance. 5. It can grind various planes and complex forming surfaces, suitable for grinding processing without motorized feed, and can be equipped with permanent magnetic chuck or electromagnetic chuck according to user needs. |
||||||
|
Model |
MY1224 |
MY1230 |
||||
|
Working table |
Table Size (L× W) |
mm |
600×300 |
750×300 |
||
|
Max movement of working table(L× W) |
mm |
630×320 |
780×320 |
|||
|
T-Slot(number×width) |
mm |
1×14 |
1×14 |
|||
|
Grinding wheel |
Max distance from spindle center to table surface |
mm |
520 |
520 |
||
|
Wheel Size(Outer diameter×width×Inner diameter) |
mm |
Φ 300×30×Φ76.2(75) |
Φ 300×30×Φ76.2(75) |
|||
|
Wheel speed |
50HZ |
r/min |
1450 |
1450 |
||
|
60HZ |
1680 |
1680 |
||||
|
Feed amount |
Longitudinal speed of working table |
m/min |
3-20 |
3-20 |
||
|
Cross feed(front and rear) on handwheel |
Continuously(Variable Transmission) |
mm/min |
600 |
600 |
||
|
Intermittently(Variable Transmission) |
mm/times |
0-6 |
0-6 |
|||
|
Per revolution |
mm |
5.0 |
5.0 |
|||
|
Per graduation |
mm |
0.02 |
0.02 |
|||
|
Vertical(up and down) feed on handwheel |
Per revolution |
mm |
2.0 |
2.0 |
||
|
Per graduation |
mm |
0.01 |
0.01 |
|||
|
Speed of vertical feed |
Mm/min |
360 |
360 |
|||
|
Motor power |
Spindle motor |
kw |
2.2 |
2.2 |
||
|
Coolant pump motor |
W |
40 |
40 |
|||
|
Lifting motor |
W |
120 |
120 |
|||
|
Hydraulic system |
Hydraulic motor |
kw |
2.2 |
2.2 |
||
|
Working pressure |
Mpa |
4 |
4 |
|||
|
Oil tank capacity |
L |
100 |
100 |
|||
|
Max flow |
L/min |
20 |
20 |
|||
|
Working precision |
The parallelism of working surface to base level |
mm |
300:0.005 |
300:0.005 |
||
|
Surface roughness |
μm |
Ra0.32 |
Ra0.32 |
|||
|
Weight |
Net |
kg |
1400 |
1400 |
||
|
Gross |
kg |
1530 |
1530 |
|||
|
Overall dimension(L×W×H) |
mm |
1960x1480x1850 |
1960x1480x1850 |
|||
|
Package dimension(L×W×H) |
mm |
2000x1640x2020 |
2000x1640x2020 |
|||
