Quick Details
-
Brand Name:
-
chengliwei
-
Dimension(L*W*H):
-
10524*3244*3830
-
Capacity:
-
50-80 cbm
-
Weight:
-
5230
-
Inner Material:
-
carbon steel
-
Outer Material:
-
carbon steel
-
Design Pressure(MPa):
-
1.61Mpa
-
Design Standard:
-
china ,asme
-
Working Temperature(℃):
-
-50 - 50 ℃
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
1 year
Quick Details
-
Volume (m³):
-
5.5
-
Max Working Pressure(MPa):
-
1.61Mpa
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
chengliwei
-
Dimension(L*W*H):
-
10524*3244*3830
-
Capacity:
-
50-80 cbm
-
Weight:
-
5230
-
Inner Material:
-
carbon steel
-
Outer Material:
-
carbon steel
-
Design Pressure(MPa):
-
1.61Mpa
-
Design Standard:
-
china ,asme
-
Working Temperature(℃):
-
-50 - 50 ℃
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
1 year
lpg spherical tank lpg tank for sale lpg toroidal tank
our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3C authentication.
1. we have the biggest LPG trailer in the world, the valid volume is 58.5cbm; low transport costs, more profit.

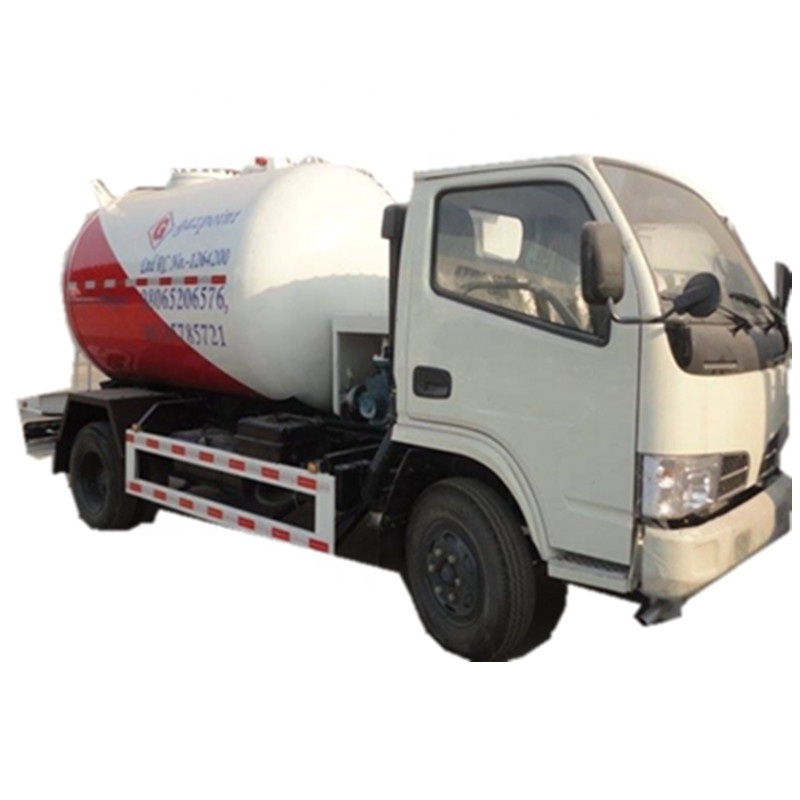

2. we have the biggest LPG truck in China, it's valid volume is 35.5cbm;
3. our LPG storage tank ranged from 5 cbm to 2 00cbm . both on the floor ones and in the ground ones.
4 It is used for storing gas, liquid, and vapour mediums, for example, propane, propene,dimethyl ether ,liquid ammonia ,
methylamine,aldehyde and other mediums.It is widely used in oil, chemical industry, machinery, electric power areas.
5 .A, B Class 100% ray weld inspection, II level qualified C, D Class welds 100% magnetic particle inspection, I level qualified
.
|
LIQUID AMMONIA |
LPG LNG STORAGE TANK SPECIFICATION |
||||||
|
|
Capacity (CBM) |
Diameter DN |
Shell thickness (mm) |
Head thickness (mm) |
Kerb weight (kg) |
Loading Weight (kg) |
Overall dimension(mm) |
|
|
20 |
2100 |
16 |
16 |
6400 |
9880 |
6162*2132*2710 |
|
|
25 |
2100 |
16 |
16 |
7760 |
12350 |
7762*2132*2710 |
|
|
32 |
2400 |
16 |
18 |
8920 |
15808 |
7516*2432*3010 |
|
|
50 |
2400 |
16 |
18 |
13100 |
24700 |
11516*2432*3010 |
|
|
50 |
2800 |
20 |
20 |
14470 |
24700 |
8620*2840*3420 |
|
|
80 |
2800 |
20 |
20 |
20980 |
39520 |
13520*2840*3420 |
|
|
80 |
3200 |
22 |
22 |
21710 |
39520 |
10524*3244*3830 |
|
|
100 |
2800 |
20 |
20 |
26010 |
49400 |
16740*2840*3420 |
|
|
100 |
3200 |
22 |
22 |
26190 |
49400 |
13024*3244*3830 |
|
Design pressure |
2.16MPa |
||||||
|
Corrosion allowance ( mm) |
2mm |
||||||
|
Medium density (kg/m3) |
520kg/m3 |
||||||
LPG LNG TANK SERIES:
LPG LNG STORAGE TANK PRODUCE PROCESS:
TANK DELIVERY TO CHINA PORT :
