Quick Details
-
Model Number:
-
CA-1530
-
Voltage:
-
220V 1PH/380V 3PH 50/60HZ
-
Rated Power:
-
5kw
-
Dimension(L*W*H):
-
3800x2250x1650mm
-
Weight (KG):
-
1700 KG
-
Year:
-
2023
-
Marketing Type:
-
New Product 2023
-
Cutting mode:
-
Plasma
-
Software:
-
Fastcam Software
-
Working area:
-
1500mm*3000mm
-
Control system:
-
Starfire
-
Cutting thickness:
-
0-30mm
-
Application:
-
Steel Cutting Construction Projects
-
Plasma power:
-
60A/100A/120A/160A/200A Power
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Motor:
-
Stepper Motor (optional Servo Motor)
-
Guide rail:
-
HWIN Linear Square Guide Rails
Quick Details
-
Dimensions:
-
1500x3000mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Model Number:
-
CA-1530
-
Voltage:
-
220V 1PH/380V 3PH 50/60HZ
-
Rated Power:
-
5kw
-
Dimension(L*W*H):
-
3800x2250x1650mm
-
Weight (KG):
-
1700 KG
-
Year:
-
2023
-
Marketing Type:
-
New Product 2023
-
Cutting mode:
-
Plasma
-
Software:
-
Fastcam Software
-
Working area:
-
1500mm*3000mm
-
Control system:
-
Starfire
-
Cutting thickness:
-
0-30mm
-
Application:
-
Steel Cutting Construction Projects
-
Plasma power:
-
60A/100A/120A/160A/200A Power
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Motor:
-
Stepper Motor (optional Servo Motor)
-
Guide rail:
-
HWIN Linear Square Guide Rails

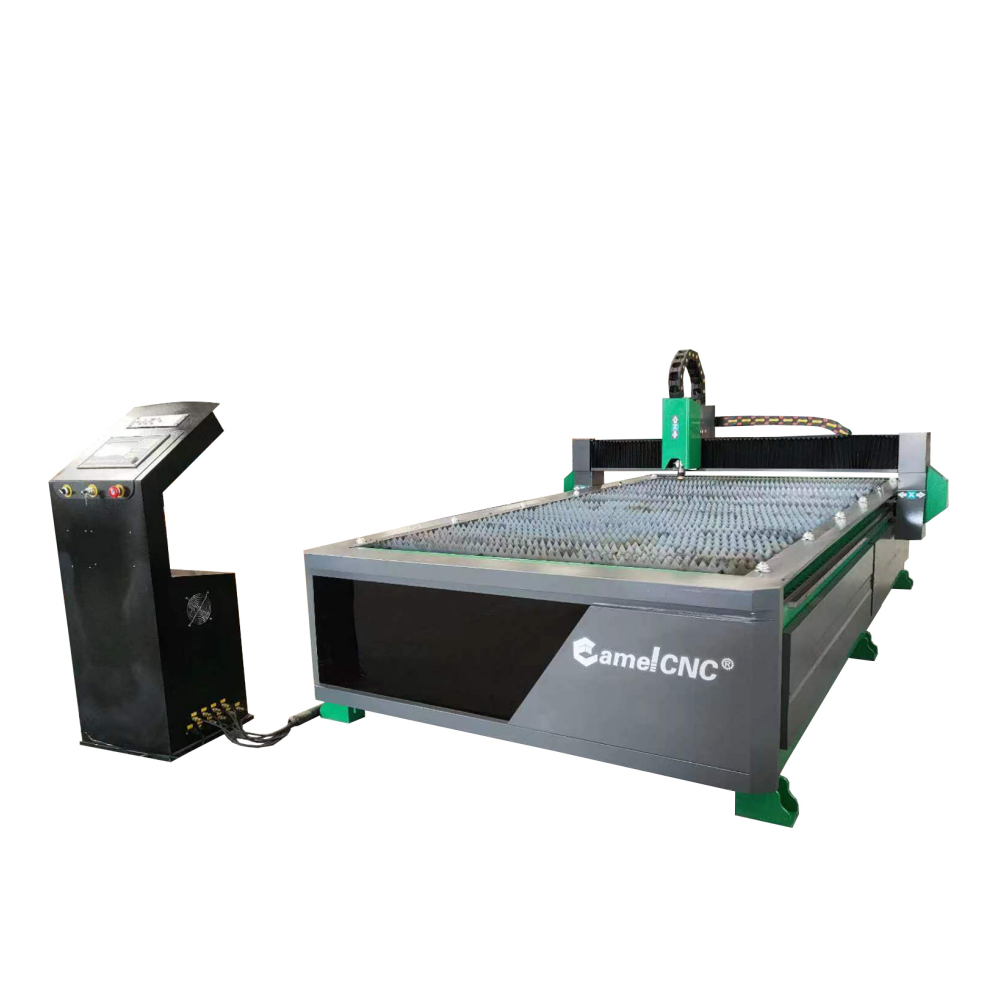

Good Price CA-1530 Cnc Plasma Cutting Machine Steel Cutting Machine Plasma Cnc Cutter Machine
1. Welded lathe bed of thick-wall profiled steel, more solid and stable.
2. Reasonable lathe table design, thick er steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame.
3. The level difference of whole double-deck platform remains in 0-1.5mm .
4. Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
5. H igh accuracy and speed rack transmission.
6. Lower noise, stable and accurate coordinates movement.
7. Fastcam software professional for metal sheet tube cutting.
8. power supply together with high sensitive Touch Height Controller . Self-adjusting to choose the b est distance between plasma head and work piece automatically in order to ensure cutting accuracy.
9. Best cho ice for all kind of different thickness material and heterotypic sheet cutting.
l Metal sheet cutting fot signs and advertising
l Automobile and ship manufacturing
l Construction machinery manufacturing
l Sheet metal processing
|
Parameters: |
CA-1325 |
CA-1530 |
CA-2030 |
|
Working material |
Stainless steel/Iron sheets, Aluminum sheets, Galvanized sheets, Titanium Plates |
||
|
Working Area |
1300x2500mm |
1500x3000mm |
2000*3000mm |
|
Cutting Thickness |
(60A)0.3-8mm |
(60A)0.3-8mm |
(60A)0.3-8mm |
|
Brand:LGK US-Cutmaster/US Hypertherm (optional)
|
(100A)0.5-12mm |
(100A)0.5-12mm |
(100A)0.5-12mm |
|
(120A)0.5-16mm |
(120A)0.5-16mm |
(120A)0.5-16mm |
|
|
(160A)0.5-20mm |
(160A)0.5-20mm |
(160A)0.5-20mm |
|
|
(200A)0.5-30mm |
(200A)0.5-30mm |
(200A)0.5-30mm |
|
|
(300A)0.5-40mm |
(300A)0.5-40mm |
(300A)0.5-40mm |
|
|
(400A)0.5-50mm |
(400A)0.5-50mm |
(400A)0.5-50mm |
|
|
Cutting Speed |
0-6000mm/min |
0-6000mm/min |
0-6000mm/min |
|
Moving Speed |
0-12000mm/min |
0-12000mm/min |
0-12000mm/min |
|
Power |
8.5KW-10.5KW |
8.5KW-10.5KW |
8.5KW-10.5KW |
|
Input Voltage |
3 phase 380V |
3 phase 380V |
3 phase 380V |
|
Power Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
|
Files Transfer |
USB Interface |
USB Interface |
USB Interface |
|
Arc |
Untouched Arc Striking |
Untouched Arc Striking |
Untouched Arc Striking |
|
|
Torch Height Controller |
Torch Height Controller |
Torch Height Controller |
Professional Starfire control system and Auto Torch Height Controller
1) It can cut complex planer shape, high efficiency, low cost
2) Support Chinese, English, Russian, Spanish, Czech, Japanese, French, Slovak
3) Dynamic and static graphic display, easy to learn. Can convert CAD file to program file in computer, through USB flash drive transmits to machine to realize cutting all kinds graphs.
Professional plasma cutting head with good cutting precision and verticality
Plasma power supply recommended according to cutting thickness
Optional Drill head with FLMC2300 system and Air compressor ( Effectively ensure that the cutting slag is peeled off the cut surface in the specified way)
Package & Delivery:
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
Questions:
Can i get some advice? or How can I get a free training?
Answer:
Click here, we will send the related details to you
.
Service& Support:
You could choose any type for your convenience details as below:
1. After receiving machine clients could install in guide of video and instructions provided.
2. lf you have any question during installation or operation,we will assist via Skype.Whatsapp.Teamviewer or other tools online until clients can operate machine skilfully.
3. If client needs,we could provide sample drawings for testing.
4. lf clients need on-site installation and training we will charge $200per day as well as round train costs for sending technician and local Accommodation or you could contact your sales manager for discussing details.
5. Our company will contact clients on machine working status feedback new requirements or good suggestions regularly and revert back to our company functional departments to improve our machines or service.
