Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700K/3000K/3500K/4000K/5000K
-
Application:
-
Indoor
-
Product Weight（kg）:
-
0.37
-
Input Voltage(V):
-
120V
-
Lamp Luminous Flux(lm):
-
1100lm
-
Model Number:
-
HT-G2YYD6-914-XXEP-ZZV
-
Place of Origin:
-
China
-
Name:
-
ETL US warehouse 6inchLED Retrofit DOWN LIGHT
-
Material:
-
die cast Aluminum
-
Colour:
-
WHITE
-
Shape:
-
Round
-
Color:
-
2700K/3000K/3500K/4000K/5000(CCT Selectable)
-
Lumen:
-
1100LM
-
Wattage:
-
14W
-
Dimmable:
-
0-10v
-
Dimension:
-
7.32"x7.32"x3.03",0.8lbs
-
IP rated:
-
Wet location
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
88
-
Lamp Body Material:
-
Spinning Aluminum
-
Install Style:
-
Downlights
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700K/3000K/3500K/4000K/5000K
-
Application:
-
Indoor
-
Product Weight（kg）:
-
0.37
-
Input Voltage(V):
-
120V
-
Lamp Luminous Flux(lm):
-
1100lm
-
Model Number:
-
HT-G2YYD6-914-XXEP-ZZV
-
Place of Origin:
-
China
-
Name:
-
ETL US warehouse 6inchLED Retrofit DOWN LIGHT
-
Material:
-
die cast Aluminum
-
Colour:
-
WHITE
-
Shape:
-
Round
-
Color:
-
2700K/3000K/3500K/4000K/5000(CCT Selectable)
-
Lumen:
-
1100LM
-
Wattage:
-
14W
-
Dimmable:
-
0-10v
-
Dimension:
-
7.32"x7.32"x3.03",0.8lbs
-
IP rated:
-
Wet location

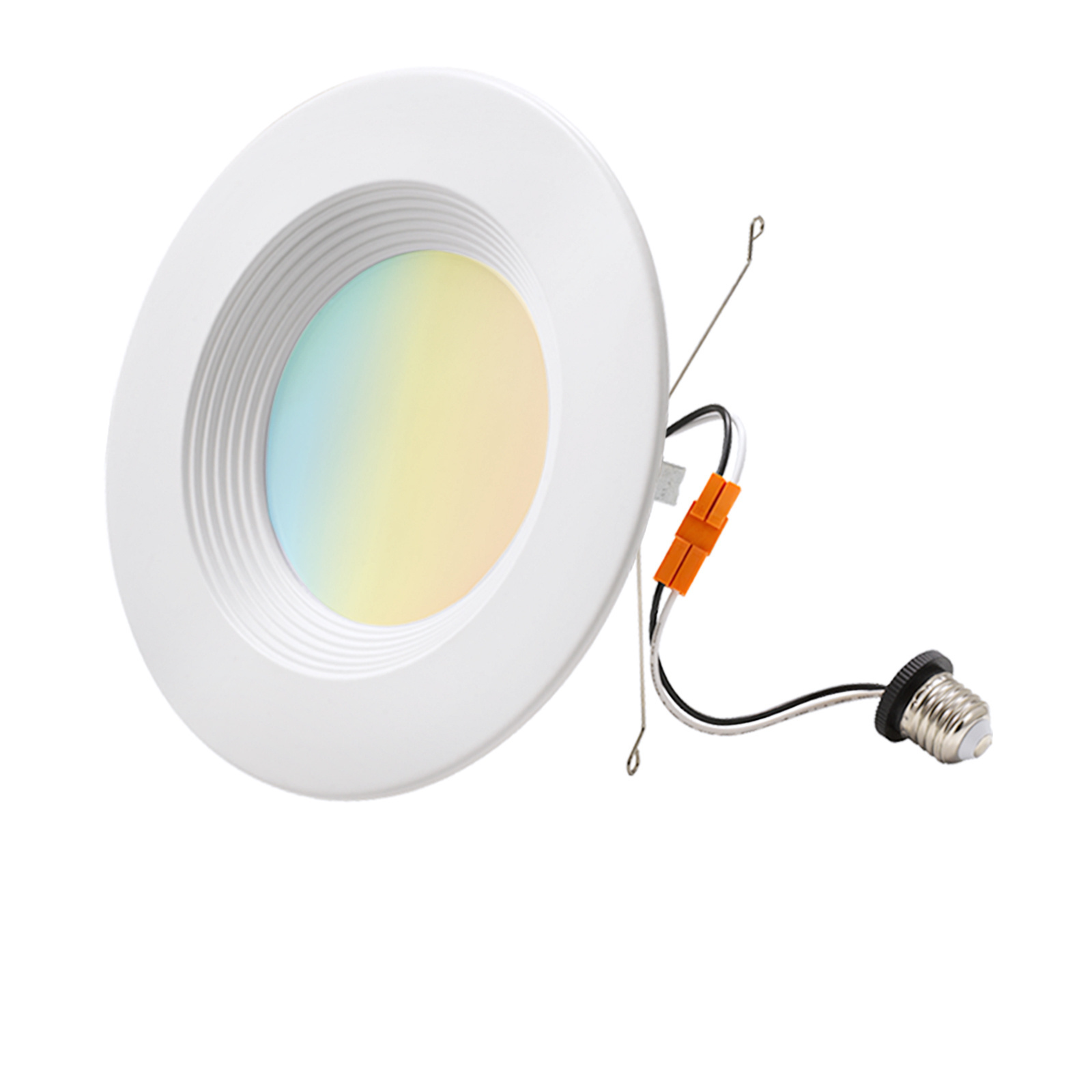

Commercial Downlight Retrofit
6" 5CCT SELECTABLE ROUND DOWNLIGHT Retrofit Kit
DESCRIPTION
The downlight retrofit kits are designed to upgrade your exising 6 inch downlight easily. It can be fited in a standard recessed can housing without any modification. With the 5 selectable
color temperature technology you can choose your most favorite environment color temperature without changing the lamp. The downlight is Energy Star® and ETL cerfitted. It can be used to comply with Title-24 and JA8 high efficacy light source requirements. With 90+ CRI, Our downlight provides perfect light perfor-mance, showing the true colors of objects and surroundings. You also get all other benefits of LED
technology, including longer life to lower maintenance cost, less heat for better energy saving in summer.
DIMENSION
|
Type
|
Length(Inch)
|
Wight(Inch)
|
Height(Inch)
|
Weight(LB)
|
|
6inch
|
5.12
|
7.48
|
10.17
|
11.22
|
SPECIFICATION FEATURES
5CCT
Select color temperature from 2700K warm white, 3000K soft white, 3500K natural white, 4000K cool white, or 5000K daylight for your environment.
MOUNTING
Fits standard or shallow 6” can housing
Pre-installed spring clips.
E26 screw base adapter included.
OPTICS
High quality PC lens.
Efficiency LED array.
Diffuse for uniform illumination.
CONSTRUCTION
Unit includes spinning metal housing, LED array, heat sink, lens,
foam gasket and baffle/smooth trim ring.
DRIVER
High efficiency integral 120V 60Hz constant current dimmable driver. Smooth flicker free deep dimming to 10%
High efficiency integral 120V 60Hz constant current dimmable driver. Smooth flicker free deep dimming to 10%
WARRANTY
5 years manufacturer warranty.
COMPLIANCE/CERTIFICATION
ENERGY STAR® listed.
ETL certified.
Air-Tite certified per ASTM-E283.
EMI/RFI emissions per FCC 47CFR Part 15B.
RoHS compliant, contains no mercury or lead.
Can be used to comply with California Title 24 part 6 High Efficacy requirements.
Certified to California Appliance Efficiency Database under JA8-2019.
Suitable for use in clothes closet when installed in accordance with the NEC 410.16 space requirements.
Suitable for wet locations.
