- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Befitter
-
Voltage:
-
220V 50/60Hz
-
Dimension(L*W*H):
-
750*580*360mm
-
Weight:
-
80 kg
-
PLC Brand:
-
befitter
-
Max cutting width:
-
300mm
Quick Details
-
Type:
-
roll to sheeting cutting
-
Production Capacity:
-
20-60pcs/min
-
Max. workable width:
-
300mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Befitter
-
Voltage:
-
220V 50/60Hz
-
Dimension(L*W*H):
-
750*580*360mm
-
Weight:
-
80 kg
-
PLC Brand:
-
befitter
-
Max cutting width:
-
300mm
Product Overview
Features
1. Controlled by microcomputer, the length, speed and quantity can be adjusted.
2. The overall structural design is reasonable and durable.
3. The operation is simple, and one machine equals to 3 to 5 works instead of manual work.
4. The application scope is wide, and all kinds of materials and other roll materials can be cut.
5. The blade with inlaid steel has higher hardness, wear resistance and long service life.
PRODUCT SPECIFICATIONS
|
Product Name
|

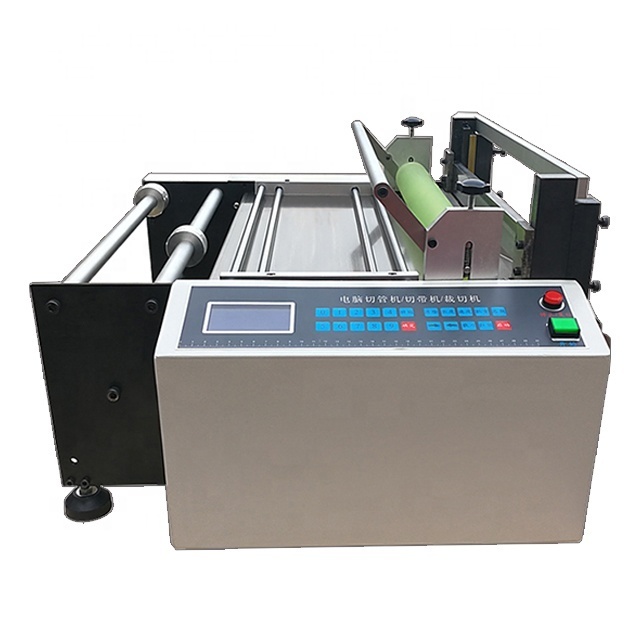

Automatic roll to sheet cutting machine
|
|
Model
|
HD-300
|
|
Power supply
|
220V /50HZ
|
|
Cutting length
|
0.1-9999mm
|
|
Cutting Speed
|
20-60pcs/min
|
|
Feeding width
|
<=300mm
|
|
Cutting precision
|
0.1mm
|
|
Weight
|
65KG
|
|
Size (L*W*H)
|
550*580*360mm
|
|
Feeding motor
|
Stepper motor
|
|
Cutting motor
|
AC motor
|
|
Cutting material
|
High Speed Steel
|
Recommend Products
PRODUCT CONFIGURATION
Applicable to cut different material
Suitable for cutting various PET/PVC/PE/OPP/BOPP/ITO/OCA films, protective films,
Plastic film, electrostatic film, heat shrinkable film, hot melt adhesive film, thermoplastic film, heat transfer film, Reflective film, non-woven fabric, meltblown fabric, flocking fabric, non-woven fabric, knitted fabric, kraft paper, Clean cloth, spunlace cloth, fiber cloth, conductive cloth, self-adhesive, roll paper, insulating paper, Release paper, kraft paper, express paper, wrapping paper, heat transfer paper, filter paper, silicone oil Paper, glitter paper, reflective paper, tin foil, aluminum foil, copper foil, stainless steel foil, copper tape, Nickel tape, double-sided tape, plastic film, EVA foam, sponge, zipper, Velcro, Reel materials such as elastic band, webbing, cloth strip, PU leather, pearl cotton, etc.
Applicable to various industries
