Quick Details
-
Power (kW):
-
2.5
-
Applicable Industries:
-
Lab Research
-
Temperature controller:
-
Shimaden FP93
-
Cover opening protection system:
-
overtravel-limit switch is installed to protect user
-
Leakage protection function:
-
the furnace is installed with leakage air switch
-
Software controlling system:
-
this furnace can control every parameter directly
-
Power control:
-
Chint
-
Controlled silicon:
-
Germany Semikron 106/16E
-
Trigger:
-
Phase-shift trigger
-
Vacuum system:
-
Vacuum level can be 10-1 or 10-4 with German molecular pump
Quick Details
-
Place of Origin:
-
China
-
Core Components:
-
Furnace
-
Weight (T):
-
1 T
-
Power (kW):
-
2.5
-
Applicable Industries:
-
Lab Research
-
Temperature controller:
-
Shimaden FP93
-
Cover opening protection system:
-
overtravel-limit switch is installed to protect user
-
Leakage protection function:
-
the furnace is installed with leakage air switch
-
Software controlling system:
-
this furnace can control every parameter directly
-
Power control:
-
Chint
-
Controlled silicon:
-
Germany Semikron 106/16E
-
Trigger:
-
Phase-shift trigger
-
Vacuum system:
-
Vacuum level can be 10-1 or 10-4 with German molecular pump

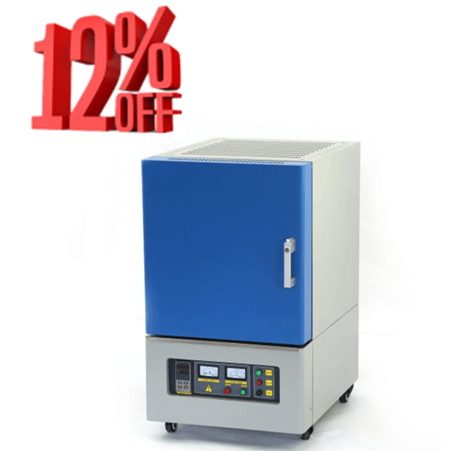

Laboratory 1200C High temperature muffle furnacesTMAX1200CAtmosphere has many advantages of uniform temperature field,low surface temperature,heating or cooling promptly and so on. it is the ideal atmosphere muffle furnace for atmosphere protection sintering,atmosphere reducing in Industry, Scientific research institutes, Universities, which offer Heating element of Kantal resistance wire and double layer housing,phase shift trigger,controlled silicon. Operation system is Shimaden 40segments digital controller imported from Japan. The chamber is made of Polycrystalline alumina fibre. There is wind cooling system between the double walled housing to help the furnace heat or cool promptly. Sealed housing,silicon gel sealed cover,sealed door with silicon gel gasket and water cooling system,gas float through flow meter,then come out from back side, there are many gas inlets and gas outlets on the furnace with burning mouth,which can pre-vacuum and pass H2,Ar,N2,O2,CO,NH3 and so on.
Parameters:
|
tem No. |
1 |
2 |
3 |
4 |
5 |
|
Chamber size ( DxWxH ) |
300X200X120mm |
300X200X200mm |
300X250X250mm |
400X300X300mm |
500X400X300mm |
|
Overall Dimensions(DxWxH ) |
500X 540X665 mm |
520X610X765 mm |
580X610X 885 mm |
700X 700X880 mm |
810X 850X1060 mm |
|
Power |
2.5KW |
4KW |
5KW |
9KW |
16KW |
|
Voltage |
220V |
380V |
|||
|
Phase |
Single |
Three |
|||
|
Max. Temperature |
1200 C |
||||
|
Constant temperature |
1100C |
||||
|
Thermocouple |
Type K |
||||
|
Heating Element |
resistance wire |
||||
|
Heating Rate |
≤30C /min |
||||
|
Recommended Heating Rate |
≤15C /min |
||||
|
Temperature Accuracy |
+/- 1C |
||||
|
Temperature Controller |
Shimaden fp93 (imported from Japan) with 4 programs and
|
||||
|
Chamber Material |
Polycrystalline 98% alumina fibre.Imported from Japan |
||||
|
Trigger |
Phase-shift trigger |
||||
Configuration
|
Part name |
Quantity |
|
GF Series atmosphere furnace |
1pc |
|
Thermocouple GF11Q-B: Type K GF11Q: Type K GF14Q: Type S GF16Q: Type B GF17Q: Type B |
1pc |
|
Alumina cushion block |
1pc |
|
Furnace door block |
1pc |
|
Stainless steel clamp |
1pc |
|
Thermal gloves |
1pair |
|
Alumina crucible |
5pcs |
|
Heating element GF11Q-B: resistance wire GF11Q: resistance wire GF14Q: Sic GF16Q: MoSi2 GF17Q: MoSi2 |
2pcs |
|
Spare fuse |
2pcs |
|
485 computer interface port |
1set |
|
Water pump |
1pc |
|
Owner manual |
1pc |
|
Shimaden fp93 temperature controller software and manual |
1pc |
