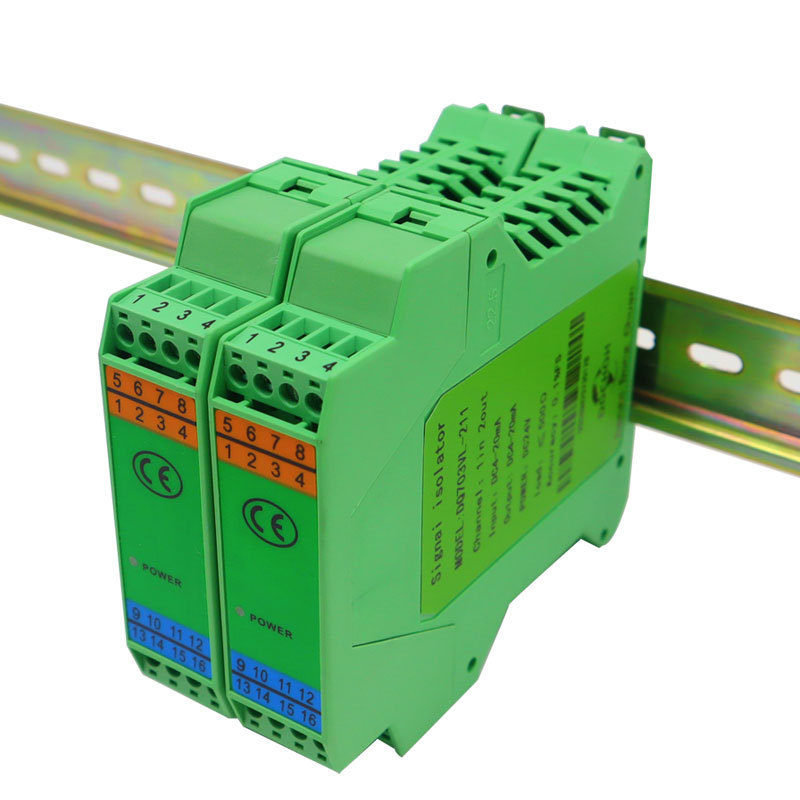

DQ703VK，DC24V power, provide quarantine distribution power supply for the transmitter on site, and transmit the current signal generated by the transmitter from the field quarantine to the control room, PLC, DCS, etc
The input terminal interface current source, the second-wire system, the three-wire transmitter, and the internal use of high-efficiency electromagnet isolation technology, input, output, and power supply are isolated from each other, high-precision, high linearity, low temperature drift.
- Product Details
- {{item.text}}
Quick Details
-
input:
-
DC0-10V 20V 30V 50V 100V 300V 500V 300V
-
output:
-
4-20mA 0-20mA 0-10V 0-5V
-
accuracy:
-
0.1%FS
-
Power Supply:
-
DC24V
-
power:
-
2W
-
size:
-
114.5*99*22.5mm
-
Product performance:
-
Fast response, anti-interference and lightning protection
-
Installation mode:
-
35mm guide rail
-
load:
-
≤500Ω
-
response time:
-
≤10ms
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
henandongchuan
-
Model Number:
-
DQ703VK
-
input:
-
DC0-10V 20V 30V 50V 100V 300V 500V 300V
-
output:
-
4-20mA 0-20mA 0-10V 0-5V
-
accuracy:
-
0.1%FS
-
Power Supply:
-
DC24V
-
power:
-
2W
-
size:
-
114.5*99*22.5mm
-
Product performance:
-
Fast response, anti-interference and lightning protection
-
Installation mode:
-
35mm guide rail
-
load:
-
≤500Ω
-
response time:
-
≤10ms
Products Description
Back
Front
Flank
Details Images
|
model
|
DQ703VK
|
|
input/output
|
1in，1out
|
|
input
|
DC0-10V20V 30V40V50V60V100V200V300V400V500V1000V
|
|
output
|
4-20mA,0-20mA,0-10V,0-5V
|
|
Accuracy
|
0.1% FS
|
|
Load
|
≤ 500 Ω
|
|
Power frequency withstand voltage
|
ac2.5kv/min.1ma
|
|
Size
|
114.5 * 99 * 22.5MM
|
|
Operating frequency
|
50Hz / 60Hz
|
|
Service temperature
|
- 20 ~ 55 ℃
|
|
Power
|
2W
|
|
Power supply
|
DC24V、
|
|
Response time
|
≤ 10ms
|
|
Temperature drift
|
1500rpm / ℃
|
|
Applicable field equipment
|
current source, two-wire system and three wire system
|
Product Paramenters
|
model
|
Input signal
|
output
|
Power Supply
|
accuracy
|
|
DQ703VK-121
|
1 input 0-100V
|
1 input 4-20mA
|
DC24V
|
0.1%FS
|
|
DQ703VK-121
|
1 input 0-300V
|
1 input 4-20mA
|
DC24V
|
0.1%FS
|
|
DQ703VK-126
|
1 input 0-500V
|
1 output 0-10V
|
DC24V
|
0.1%FS
|
|
DQ703VK-146
|
1 input 0-10V
|
1 output 0-10V
|
DC24V
|
0.1%FS
|
|
DQ703VK-134
|
1 input 0-5V
|
1 output 0-5V
|
DC24V
|
0.1%FS
|
|
DQ703VK-131
|
1 input 0-5V
|
1 output 4-20mA
|
DC24V
|
0.1%FS
|
|
DQ703VK-116
|
1 input 0-30V
|
1 output 0-10V
|
DC24V
|
0.1%FS
|
|
DQ703VL-141
|
1 input 0-10V
|
1 output 4-20mA
|
DC24V
|
0.1%FS
|
|
DQ703VK-114
|
1 input 0-20V
|
1 output 0-5V
|
DC24V
|
0.1%FS
|
Product packaging carton
