Quick Details
Quick Details
-
Brand Name:
-
eborm
-
Model Number:
-
hdmi matrix 8x8 1080p
-
Place of Origin:
-
Guangdong, China
Product Description

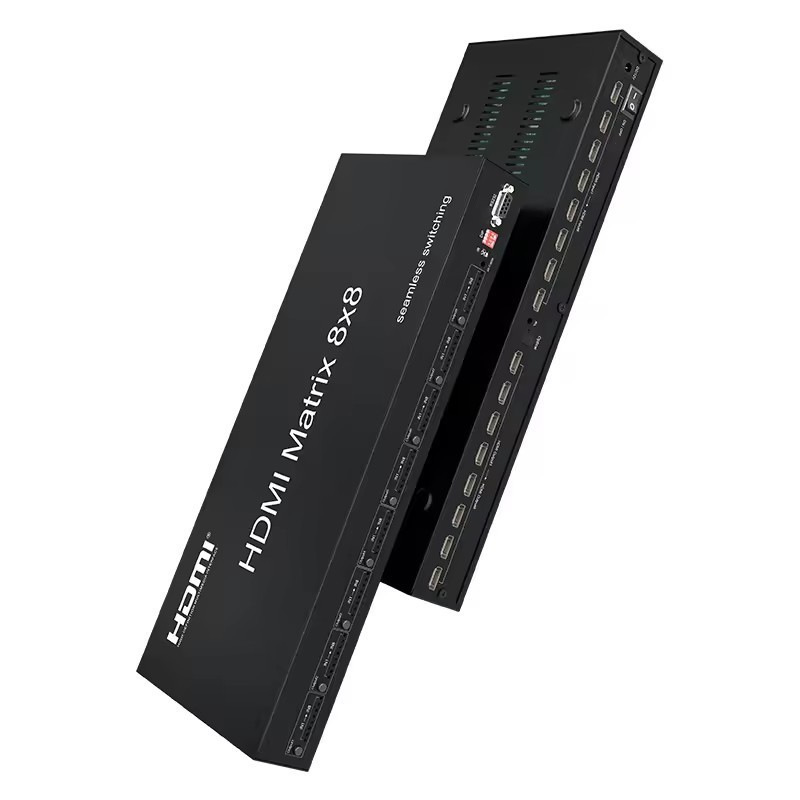

The HDMI matrix 8x8 can connect 8 HD signal sources to 8 HD display terminals with optical fiber and stereo headphone output at the same time via HDMI out 1 port. The matrix allows eight HDMI devices to be switched or split easily to eight HDMI compatible monitors or projectors.
This HDMI matrix support lossless transmitting and are widely used in space and
security concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.
Features :
* Support HDCP1.4;
* Support 8 channels HDMI signal seamless switching
;
* Very compact structure;
* Stable and reliable;
* Via HDMI out1, support 3.5mm earphone jack and optical output at same time;
* Support 3D
;
* Support RS232 Control;
* Support native IR extension;
* The eight outputs could show the same or different source simultaneously
;
SPECIFICATIONS:
| HDMI resolution | up to 1080p/60Hz |
| Support video format | 8/10/12 bit deep color |
| Support audio format |
DTS-HD/Dolby-trueHD/LPCM5.1/DTS/Dolby-AC3/DSD
|
| Input cable distance | ≤15m HDMI AWG26 |
| Output cable distance | ≤15m HDMI AWG26 |
| HDMI Input | 8 |
| HDMI Output | 8 |
| Max working current | 1.6A |
| Power adapter format | Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A |
| Operating Temperature range | (-15 to +45℃) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 411x180x45(mm) |
| Weight | 1.9kg |
