Quick Details
-
delivery date:
-
in stock
-
fit mahine:
-
D2,D4 D5 D20--D155etc
-
weight:
-
100kgs
-
function 1:
-
remove the main sprocket of the final drive
-
fit link pitch:
-
135,171,175,190,203,216
-
advantage:
-
portable easy handle good assistant
-
volume:
-
0.3cbm
-
function 2:
-
track repair
-
Packaging Details:
-
In strong fumigate wooden pallet standard packing
Quick Details
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GM
-
delivery date:
-
in stock
-
fit mahine:
-
D2,D4 D5 D20--D155etc
-
weight:
-
100kgs
-
function 1:
-
remove the main sprocket of the final drive
-
fit link pitch:
-
135,171,175,190,203,216
-
advantage:
-
portable easy handle good assistant
-
volume:
-
0.3cbm
-
function 2:
-
track repair
-
Packaging Details:
-
In strong fumigate wooden pallet standard packing
Product Description
|
Item
|
200T
|
|
Nominal pressure（KN)
|
2000
|
|
Stroke（mm）
|
400
|
Specification
|
item
|
value
|
|
Applicable Industries
|
Machinery Repair Shops, Construction works
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Place of Origin
|
China
|
|
Brand Name
|
GT
|
|
Warranty
|
6 Months
|
|
Part name
|

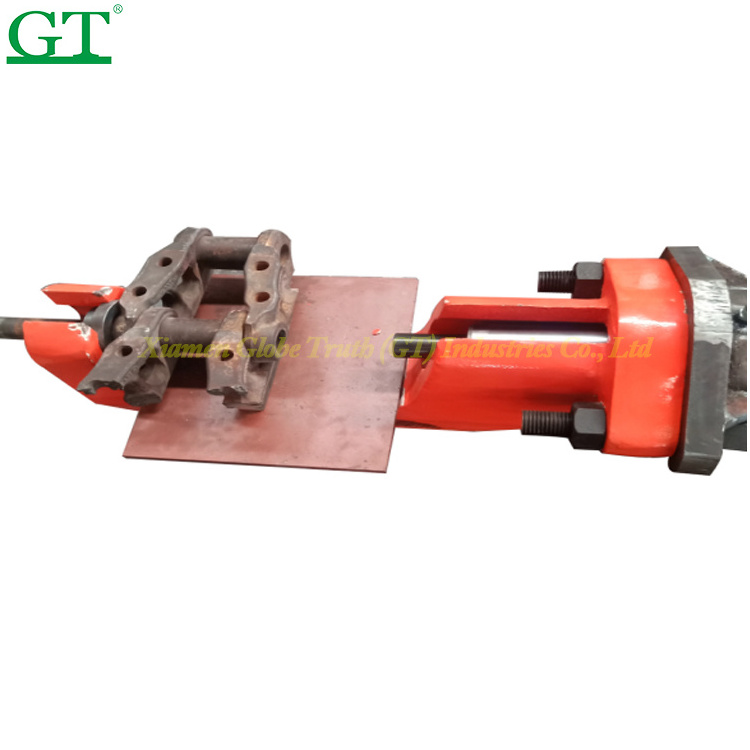

Track Pin Press
|
|
Application
|
Press Link
|
|
Type
|
100/150/200 ton
|
Product List
|
Manual
portable track pin press machine
|
|
|
|
|||
|
model
|
80T
|
100T
|
200T
|
|||
|
Cylinder stroke
|
400mm
|
400mm
|
400mm
|
|||
|
Maximum opening size
|
400mm
|
400mm
|
400mm
|
|||
|
Center height
|
80mm
|
100mm
|
130mm
|
|||
|
Tubing
|
2m*2
|
2m*2
|
2m*2
|
|||
|
tank
|
7L
|
7L
|
7L
|
|||
|
Tooling
|
11 pieces (2 lengthened indenters, 6 disassembly and assembly tools, 1 pad, 1 track piece, 1 U shaped seat
|
|
|
|||
|
weight
|
360kg
|
500kg
|
500kg
|
|||
|
Electric
portable track pin press machine
|
|
|
|
|||
|
model
|
80T
|
150T
|
200T
|
|||
|
Cylinder stroke
|
400mm
|
400mm
|
400mm
|
|||
|
Maximum opening size
|
400mm
|
400mm
|
400mm
|
|||
|
Center height
|
80mm
|
120mm
|
130mm
|
|||
|
Motor
|
2.2kw/380v
|
2.2kw/380v
|
2.2kw/380v
|
|||
|
tank
|
7L
|
36L
|
36L
|
|||
|
Tooling
|
11 pieces (2 lengthened indenters, 6 disassembly and assembly tools, 1 pad, 1 track piece, 1 U-shaped seat
|
|
|
|||
|
weight
|
420kg
|
560kg
|
560kg
|
|||
|
Master pin pusher spare parts list
|
|
|
||
|
No.
|
Name
|
Qty.
|
||
|
1
|
Master pin pusher
|
1
|
||
|
2
|
High pressure cylinder
|
1
|
||
|
3
|
Flashlight pump station/hand pump
|
1
|
||
|
4
|
Remove pin shaft backseat
|
1
|
||
|
5
|
Length plate
|
2
|
||
|
6
|
Remove pin plate
|
1
|
||
|
7
|
Tool U-iron
|
1
|
||
|
8
|
Remove pin set
|
6
|
||
|
9
|
Position plate
|
1
|
||
|
10
|
Long pin
|
2
|
||
|
11
|
Screw pin
|
2
|
||
|
12
|
Screw pin nut
|
6
|
||
|
13
|
Oil pipe
|
2
|
||
|
14
|
O-ring ,hydraulic seal
|
few
|
||
|
15
|
The instructions
|
1
|
||
|
16
|
Certificate of approval
|
1
|
||
|
Pin/Adapter for Master Pin Pusher Removing/Installing Pin
|
|
|
|
|
|
|
|||||
|
Pcs
|
Components
|
Marks
|
P125
|
P140
|
P160
|
P190
|
|||||
|
1
|
Axle pin press/拆销顶杆
|
A
|
**
|
**
|
**
|
**
|
|||||
|
2
|
Track link pin press/链片顶杆
|
B
|
**
|
**
|
**
|
**
|
|||||
|
3
|
Press-pin seat cover/压销座套
|
C
|
**
|
**
|
**
|
**
|
|||||
|
4
|
Dowel Pin/销套顶杆
|
D
|
**
|
**
|
**
|
**
|
|||||
|
5
|
Plate/垫板
|
E
|
**
|
**
|
**
|
**
|
|||||
|
6
|
U-shaped seat/U型座
|
F
|
*
|
*
|
*
|
*
|
|||||
|
7
|
Fixing Plate/固定板
|
G
|
*
|
*
|
*
|
*
|
|||||
|
8
|
Dowel Pin/拆销主压杆
|
H
|
*
|
*
|
*
|
*
|
|||||
|
9
|
Traction shaft/引销
|
I
|
*
|
*
|
*
|
*
|
|||||
|
10
|
Oil Seal/备用密封件
|
J
|
|
|
|
|
|||||
|
|
Note：
1. * must be used during working * 工作过程中必须使用 2. **depend on current working condition **根据具体工作条件决定 |
|
|
|
|
|
|||||
