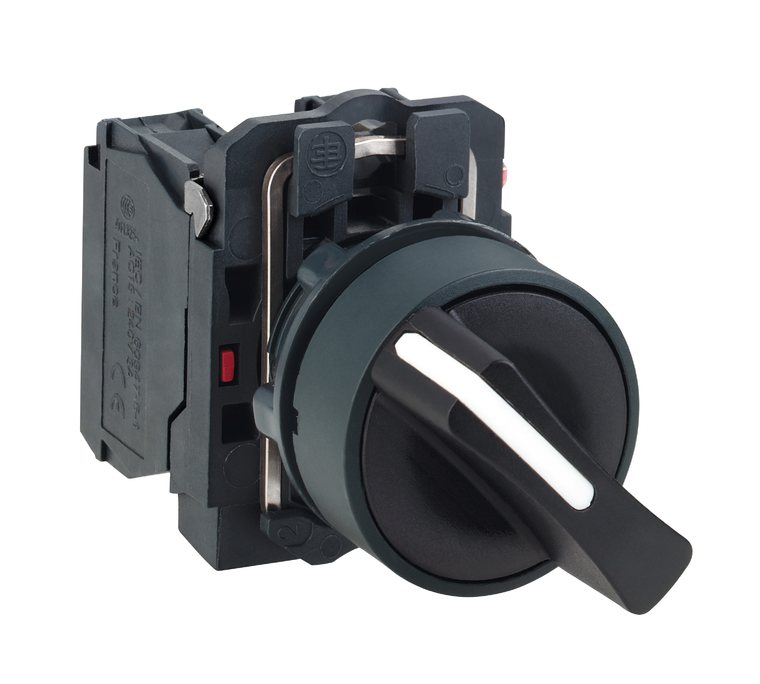

High Quality Schneider 22mm 1NO 1NC XB7ND25 Rotary Selector Switch

range of product

Harmony XB7

product or component type

Monolithic selector switch

device short name

XB7

mounting diameter

0.87 in (22 mm)

sale per indivisible quantity

10

product weight

0.06 lb(US) (0.026 kg)

IP degree of protection

IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529

shape of signaling unit head

Round

type of operator

Stay put

operator profile

Black standard handle

operator position information

2 positions 90°

contacts type and composition

1 NO + 1 NC

positive opening

With conforming to EN/IEC 60947-5-1 appendix K

CAD overall width

1.14 in (29 mm)

CAD overall height

1.14 in (29 mm)

CAD overall depth

2.7 in (68.5 mm)

terminals description ISO n°1

(13-14)NO

device mounting

Fixing hole: Ø 0.89 in (22.5 mm) (22.3 +0.4/0) conforming to EN/IEC 60947-1

fixing center

>= 30 x 40 mm on support panel, metal, thickness: 0.04...0.24 in (1...6 mm)
>= 30 x 40 mm on support panel, plastic, thickness: 0.08...0.24 in (2...6 mm)

fixing mode

Fixing nut recommended torque: 19.47 lbf.in (2.2 N.m) (+/- 0.2 N.m)

contacts operation

Slow-break

mechanical durability

300000 cycles

connections - terminals

Screw clamp terminals: <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals: 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

tightening torque

0.8…1.2 N.m conforming to EN 60947-1

shape of screw head

Cross head compatible with JIS No 1 screwdriver
Cross head compatible with Philips no 1 screwdriver
Cross head compatible with pozidriv No 1 screwdriver
Slotted head compatible with flat Ø 4 mm screwdriver
Slotted head compatible with flat Ø 5.5 mm screwdriver

short circuit protection

4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

[Ui] rated insulation voltage

250 V (degree of pollution: 3) conforming to EN/IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-1

[Ie] rated operational current

0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1
0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1

electrical durability

1000000 cycles, DC-13, 0.3 A at 24 V, operating rate: 216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.03 A at 230 V, operating rate: 216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.09 A at 240 V, operating rate: 108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

electrical reliability IEC 60947-5-4

Λ < 10exp(-6) at 17 V, 5 mA conforming to IEC 60947-5-4

protective treatment

TH

ambient air temperature for storage

-40...158 °F (-40...70 °C)

ambient air temperature for operation

-13...158 °F (-25...70 °C)

class of protection against electric shock

Class II conforming to IEC 61140

NEMA degree of protection

NEMA 12 conforming to UL 50 E
NEMA 3 conforming to UL 50 E

standards

EN/IEC 60947-1
EN/IEC 60947-5-1
JIS C 4520
UL 508
CSA C22.2 No 14

vibration resistance

5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6

shock resistance

30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
