- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RB-WL226-60W
-
Freqency Range:
-
50Hz~60Hz
-
Power Factor:
-
>0.98
-
LED Power:
-
60W petrol station canopy led
-
LED Luminous Flux:
-
110-120LM/W
-
Viewing Angle:
-
120 Degree
-
Color Rendering Index:
-
Ra>80
-
Working Life-span:
-
50000 H
-
IP Grade:
-
IP65 Wall Light Lamp
-
Body Size:
-
365*190*235 mm
Quick Details
-
Warranty(Year):
-
3-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-WL226-60W
-
Freqency Range:
-
50Hz~60Hz
-
Power Factor:
-
>0.98
-
LED Power:
-
60W petrol station canopy led
-
LED Luminous Flux:
-
110-120LM/W
-
Viewing Angle:
-
120 Degree
-
Color Rendering Index:
-
Ra>80
-
Working Life-span:
-
50000 H
-
IP Grade:
-
IP65 Wall Light Lamp
-
Body Size:
-
365*190*235 mm

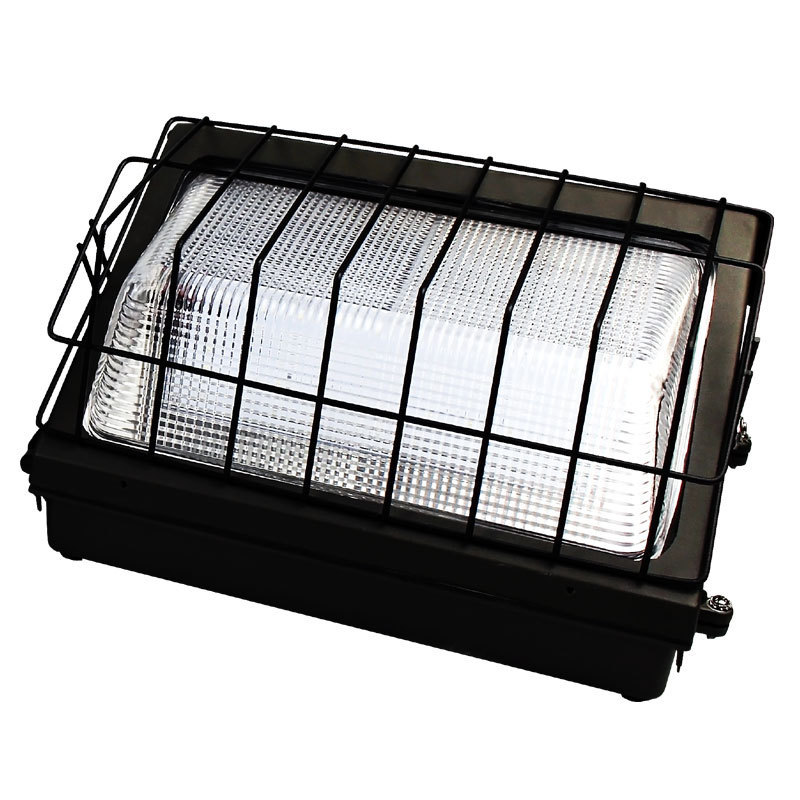

120lm/w 60W 80W 100W 120W 150W Traditional LED Wall Pack Light
Specifications of LED Canopy Light 100W :
| 60W LED Wall Pack Light Main Technical Parameters | |||
| Item No.: | RB-WL226-60W | ||
| Input Voltage: | AC100-277V, AC277-480V | ||
| Freqency Range: | 50Hz~60Hz | ||
| LED Chip | SMD3030 | ||
| Power Driver: | Meanwell | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >92% | ||
| LED Power | 60W | ||
| LED Working Voltage: | DC 42~48V | ||
| System Consumption: | 61W | ||
| LED Luminous Flux | Warm White | 7100LM | |
| Pure White | 7200LM | ||
| Cool White | 7300LM | ||
| Viewing Angle: | 120 Degree | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 4000K~4500K | ||
| Cool White | 5000K~5500K | ||
| Color Rendering Index | Ra>80 | ||
| LED Junction Temperature: | ≤115℃ | ||
| Working Temperature: | –40℃~50℃ | ||
| Working Life-span: | 50000 H | ||
| IP Grade: | IP65 | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| Certificate | CE/ROHS | ||
| Net Weight: | 2.5KG | ||
| Body Size: | 365*190*235 mm | ||
Product Features of our LED Wall Pack Lights :
1, Sealed die-casting profile for outdoor applications;
2, Replacing 175W MH;
3, Lumen output is 7200lm;
4, Multitude of voltage configurations: AC100-277V, AC277-480V
;
5, Polycarbonate optical lens with UV stabilizers;
6, Built-in class 2 driver, optional for photocell;
7, Easy installation, contractor-friendly design;
Installation information of Wall Pack LED Light :
1. Check all the parts and accessories of LED Wall Pack lights;
2. Must cut off the power supply before installation;
3. Make sure the LED Wall Pack light is fixed tightly to the surface of place for installation ;
4. Connect the power line of the LED Wall Pack light with power supply, then switch on the power ;
5. When the LED Wall Pack lamp is working, it must be kept vertical downward.
Applications of IP65 Wall Pack Light LED :
1. Security, pathway and perimeter lighting;
2. Building entryways and walkways lighting;
3. Residential, street, school, courtyard lighting;
4. Gas station , petrol station, playground and stadium lighting.
5. Parking lot and airport lighting.
6. Highway and Railway tunnel lighting.
7. Bridge and culvert lighting.
8. Square, garden, and hotel lighting.
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
Strict Tests of industrial SMD Waterproof IP65 Wall Pack LED Lights :
Before shipping, all our LED Wall Pack lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, d efective rate is controlled less than 0.1% . Quality is ensured, you can be assured.
Packaging of LED Wall Pack Light :
1. Label on backside of each Wall Pack LED lights and your required label is available.
2. One piece LED Wall Pack Light per carton.
3. This is our regular packing of the LED Wall Pack lamps, if you need, we can also custom color packing and put your logo on it.
Shipping of Wall Pack LED lights : By sea, air, express (DHL, FedEX, UPS, TNT
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Small quantity advised to be shipped by air.
We have CE,RoHS,SAA certifications and so on.So you can rest assured to use our products.
