Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS500M-96
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1956x1310x45mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO, CE TUV
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP67 Waterproof
-
Solar cell:
-
Mono 156mm*156mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
MC4 Compatible Connector
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
20%
-
Warranty:
-
25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS500M-96
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1956x1310x45mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO, CE TUV
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP67 Waterproof
-
Solar cell:
-
Mono 156mm*156mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
MC4 Compatible Connector
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
Product Description

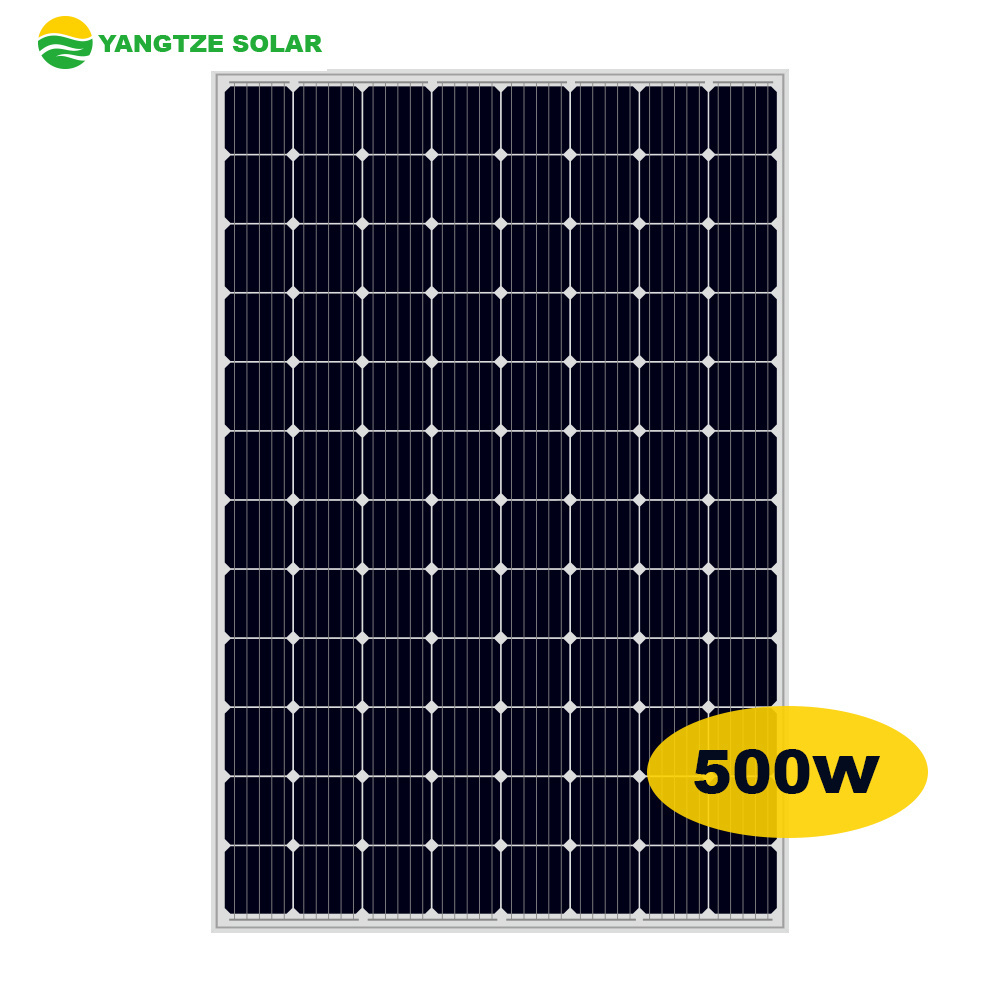

Cheap 1kw 1000 watt solar panels price
| Model | YS450M-96 | YS460M-96 | YS470M-96 | YS480M-96 | YS490M-96 | YS500M-96 | YS510M-96 |
| Rated Maximum Power at STC | 450W | 460W | 470W | 480W | 490W | 500W | 510W |
| Maximum Power Voltage (Vmp) | 47.9V | 48V | 48.1V | 48.2V | 48.3V | 48.4V | 48.5V |
| Maximum Power Current (Imp) | 9.4A | 9.56A | 9.77A | 9.96A | 10.15A | 10.33A | 10.51A |
| Open Circuit Voltage ( Voc) | 58.3V | 58.5V | 58.7V | 58.9V | 59.1V | 59.3V | 59.5V |
| Short Circuit Current (Isc) | 9.60A | 9.79A | 9.98A | 10.17A | 10.36A | 10.54A | 10.72A |
| Module Efficiency | 17.56% | 17.95% | 18.34% | 18.73% | 19.12% | 19.51% | 19.90% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||||
| Mechanical Parameters | |||||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | ||||||
| No. of Cells | 96 (8x12) | ||||||
| Dimension | 1956x1310x45mm | ||||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | ||||||
| Junction Box | IP65&IP67 Rated | ||||||
| Output Cable | Section Size: 4mm² , Length: 900mm | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| No. of Bypass Diodes | 6 | ||||||
| Connector | MC4 Compatible | ||||||
| Working Conditions | |||||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) | ||||||
| Operating Temperature | -40°c~+85°c | ||||||
| Maximum Series Fuse | 15A | ||||||
| NOCT | 45±2°c | ||||||
| Application Class | Class A | ||||||
| Temperature Coefficient | |||||||
| Temperature Coefficient of Pmax | -0.40%/°c | ||||||
| Temperature Coefficient of Voc | -0.30%/°c | ||||||
| Temperature Coefficient of Isc | +0.05%/°c | ||||||
