Quick Details
-
Brand Name:
-
Zetron
-
Model Number:
-
MS104K-M
-
Power:
-
7.4VDC
-
Material:
-
IP66
-
Product name:
-
Data logger Rechargeable Portable Gas Detector O2 CO H2S LEL
-
Detecting Gas:
-
Can be customized upto 500 gases 16 at a same time
-
Alarm Type:
-
Vibration+Sound+Light Alarm
-
Sensor:
-
Imported High-precision Sensor
-
Sampling method:
-
pump and diffusion sampling
-
Battery:
-
Lithium Rechargeable Battery
-
Feature:
-
Industrial Toxic/Combustible and Natural Gas Monitor
-
Response time:
-
T90<20s
-
Certificate:
-
ISO9001 CNEx CE ATEX
-
Resolution:
-
customized
Quick Details
-
Type:
-
Portable Gas Detector, COMBUSTIBLE GAS DETECTOR, Oxygen detector, Multi-Gas Detector, Toxic Gas Detector, portable multi gas detector
-
Warranty:
-
1 years
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Zetron
-
Model Number:
-
MS104K-M
-
Power:
-
7.4VDC
-
Material:
-
IP66
-
Product name:
-
Data logger Rechargeable Portable Gas Detector O2 CO H2S LEL
-
Detecting Gas:
-
Can be customized upto 500 gases 16 at a same time
-
Alarm Type:
-
Vibration+Sound+Light Alarm
-
Sensor:
-
Imported High-precision Sensor
-
Sampling method:
-
pump and diffusion sampling
-
Battery:
-
Lithium Rechargeable Battery
-
Feature:
-
Industrial Toxic/Combustible and Natural Gas Monitor
-
Response time:
-
T90<20s
-
Certificate:
-
ISO9001 CNEx CE ATEX
-
Resolution:
-
customized
Product Description

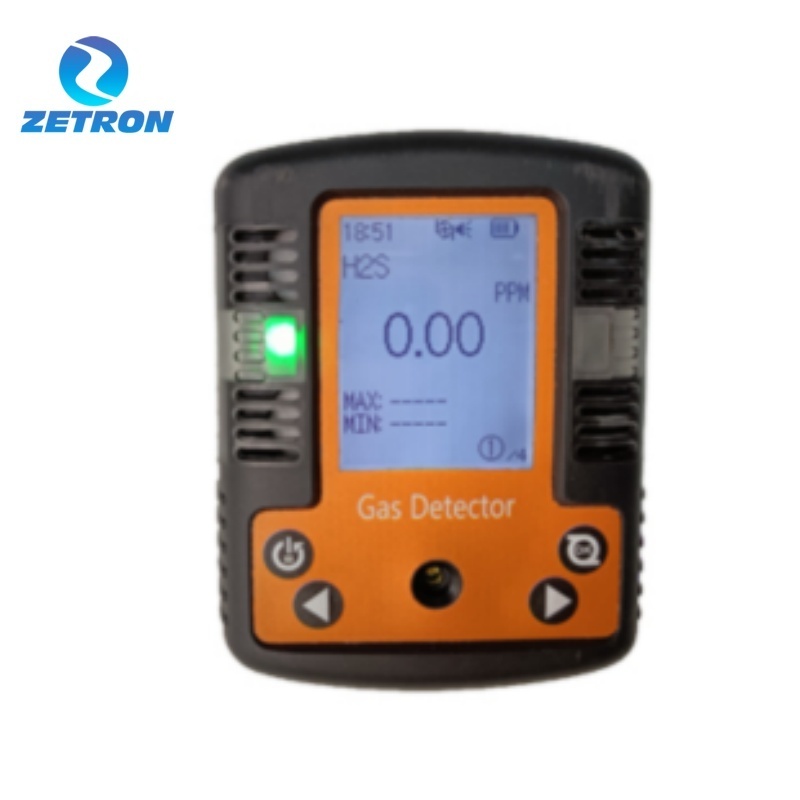

MS104K-M Four in One Gas Detector
Data logger Rechargeable Portable Gas Detector O2 CO H2S LEL for Confined Space
is mainly used to quickly and accurately detect gas leaks or alarm when gas concentration exceeds the standard. The main detection principles of gas detection are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoionization, etc. MS104K-M is widely used in fire protection, emergency rescue, confined space, petroleum,chemical industry, coal mine,metallurgy refining, gas, warehousing, medicine,environmental
protection, and other occasions.
protection, and other occasions.
Specification
|
Delection Gases
|
1-4 gases（Carbon monoxide CO,hydrogen sufide H2S,oxygen O2,flammable gas Ex,carton dioxide CO2 VOC,etc)
Depends on site environment and user needs |
|
Gas Ranges
|
0-1000,5000,10000ppm.100%Vol,100%LEL.Depends on site environment and user needs
|
|
Resolution
|
0.001ppm (0-10ppm high precision)
0.01ppm (0-10 ppm) 0.01ppm (0-100 ppm) 0.1ppm (0-1000 ppm) 1ppm (0~5000 ppm and above) 0.1%LEL:0.01%Vol |
|
Unit Display
|
Optional units:umol/mol ppm,mg/m3,%Vol,%LEL
|
|
Gas Sensor Principle
|
Electrochemistry,catalytic combustion,infrared,thermal conductivity,semiconductor,PID photoionization,etc.Depending on the
range,application and user needs |
|
Sensor Life
|
Electrochemistry 2-3 years,catalytic combustion 2-3 years,infrared 5-10 years,thermal conductivity 2-5 years,
PID 2-3 years |
|
Detection
|
Diffusion/pumping type,standard configuration: external pump
|
|
Display
|
2 inch LCD
|
|
Display Content
|
Real-time concentration,unit,gas name,alarm status,time,storage,communication status,power,charging
status,etc |
|
Detection Accuracy
|
Typical accuracy≤±3%FS
|
|
Response Time
|
T90≤ 20seconds(general)
|
|
Working Power Supply
|
DC7.4V
|
|
Battery Capacity
|
7.4V,1400mAh Rachargeable polymer battery,without overcharge,overdischarge,overvoltage,short circuit and
oveheating protection funchions |
|
Operating Hours
|
More than 100 hours (Diffusion type,non-catalytic sensor)
|
|
Alarm Volume
|
More than 90dB
|
|
Usage Environment
|
Temperatune:-20℃-+50℃,can be customized-40℃+70℃,relative humidity:10-95%RH
|
|
Communicalion Interfaoe
|
Standard Type-C port for communicafion,standard cradle charging base (Fully charged in 2 hours)
|
|
Data Storage
|
Standard capacity 200,000 data recording, supports local viewing,detection or data export,and the storage time interval can be set
arbitrarily |
|
Language
|
Chinese or English optional,defaut Chinese interface
|
|
Explosion-proof Type
|
Intrinsically safe Exia II CT4 Ga,Atex certificate
|
|
Protection level
|
IP68
|
|
Dimension
|
90*70*38mm(L*WxH)
|
|
Weight
|
About 380g
|
|
Standard Accessories
|
Instructions,certficate,USB Charger (including data cable),charging dock,instrument case,external pump caltbration cover),fiter
individual |
Application
