Quick Details
-
Dimension(L*W*H):
-
all size of
-
Weight:
-
15000
-
rubber machine:
-
tire tread machine
-
plate vulcanizing press:
-
tyre tread curing press
-
working layers:
-
multilayers
-
application:
-
tire tread vulcanizing
-
specifications:
-
all kinds of
-
colour:
-
many kinds of
-
Certification:
-
ISO9001:2008/BV
-
Power:
-
7.5-22KW
-
Material:
-
Carbon Steel Q-235
-
Delivery:
-
30 Working Days
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EENOR
-
Voltage:
-
as customers request
-
Dimension(L*W*H):
-
all size of
-
Weight:
-
15000
-
rubber machine:
-
tire tread machine
-
plate vulcanizing press:
-
tyre tread curing press
-
working layers:
-
multilayers
-
application:
-
tire tread vulcanizing
-
specifications:
-
all kinds of
-
colour:
-
many kinds of
-
Certification:
-
ISO9001:2008/BV
-
Power:
-
7.5-22KW
-
Material:
-
Carbon Steel Q-235
-
Delivery:
-
30 Working Days
Precure Flat tyre Tread Vulcanizing Machine/Automatic Rubber Tread Vulcanizing Machine
features:
1.
Two
dual-action cylinders for fast mold open / close;
2. Provided with mass flow prefill valve
3. Automatic mold forward / backward;
4. PLC controlled;
5
.
Unit area pressure no less than 45kg/cm ² to ensure the density of the tyre-surface
6
.
Multiple options of layer number and tables;
7
.
Hydraulic pressure components and electrical equipment imported or of local famous brand, to ensure reliable performance.
tyre tread vulcaniizng press machine mainly used in tire surface forming machine, automatic sulfide has forced open mold, automatic mode, introduced in PLC control can be done automatically mould, vulcanization timing, exhaust time and frequency setting, mould, etc, and is equipped with working cycle is manual control rubber vulcanization products advanced and reliable automation equipment.
Technical details of the machine:
|
Item |
XLB-Q3600*410*4 tyre tread vulcanizing machine |
|
|
Total pressure |
MN |
6.00 (600T) |
|
Hot plate size |
MM |
3600*410*60 |
|
Plate clearance |
MM |
200 |
|
Piston stroke |
MM |
600 |
|
Workig layer |
layer |
4 |
|
Piston number |
set |
6 |
|
Piston diameter |
MM |
300 |
|
Structure form |
Jaw type (As picture) |
|
|
Heating mode |
Oil or steam heating |
|
|
Operation mode |
Automatic PLC system. |
|
|
Motor power |
kw |
7.5kw + 5.5kw |
|
Open speed |
MM/S |
12-15 |
|
Close speed |
MM/S |
12-20 |
|
Worktable pressure |
Mpa |
4.06 (40.6kg/m 2 ) |
|
Item |
XLB-Q5000*670*4 tyre tread vulcanizing machine |
|
|
Total pressure |
MN |
8.00 (800T) |
|
Hot plate size |
MM |
5000*670*60 |
|
Plate clearance |
MM |
200 |
|
Piston stroke |
MM |
600 |
|
Workig layer |
layer |
4 |
|
Piston number |
set |
8 |
|
Piston diameter |
MM |
300 |
|
Structure form |
Jaw type (As picture) |
|
|
Heating mode |
Oil or steam heating |
|
|
Operation mode |
Automatic PLC system. |
|
|
Motor power |
kw |
11kw + 5.5kw |
|
Open speed |
MM/S |
12-15 |
|
Close speed |
MM/S |
12-20 |
|
Worktable pressure |
Mpa |
4.06 (40.6kg/m 2 ) |

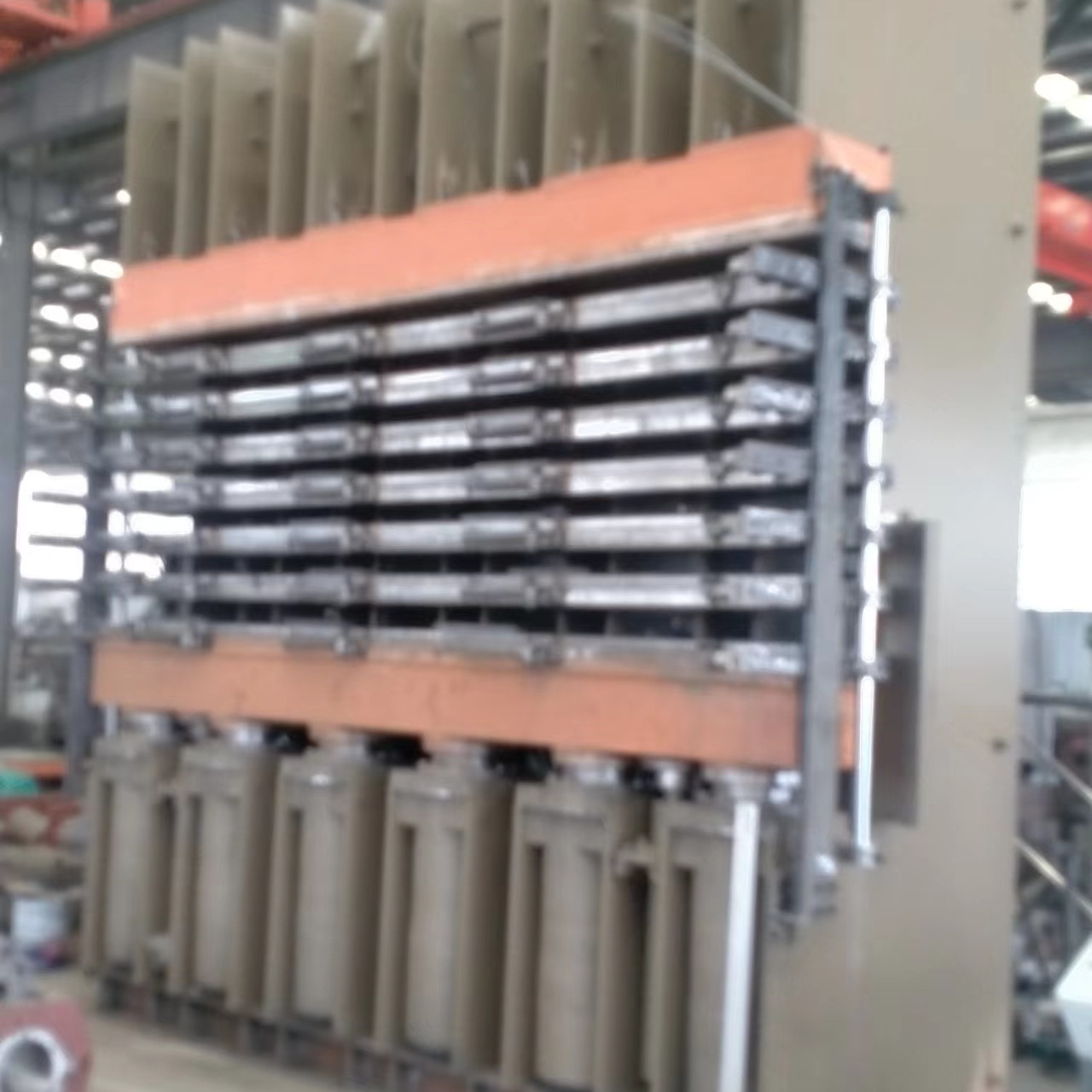

the photos of machine:
loading container:
customers visit:
workshop show:
FAQ:
1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
