Quick Details
-
Brand Name:
-
SOV
-
Model Number:
-
SOV-P-84
-
Place of Origin:
-
Shanghai, China
-
Name:
-
Steel Hydraulic Hand Oil Pump
-
Model:
-
SOV-P-84
-
1st Stage Working Pressure:
-
2.5 Mpa
-
2nd Stage Working Pressure:
-
70 Mpa
-
1st Stage Oil Displacement Per Stroke:
-
16.22 ml
-
2nd Stage Oil Displacement Per Stroke:
-
2.46 ml
-
Outlet Size:
-
NPT 3/8
-
Oil Tank Capacity:
-
2.2 L
-
Cylinder Type:
-
Double Acting
Quick Details
-
Application:
-
Industrial Utilities, Machining, Metal and Equipment Manufacturers, Mining industry
-
Pressure:
-
700 Bar
-
Warranty:
-
1 years
-
Brand Name:
-
SOV
-
Model Number:
-
SOV-P-84
-
Place of Origin:
-
Shanghai, China
-
Name:
-
Steel Hydraulic Hand Oil Pump
-
Model:
-
SOV-P-84
-
1st Stage Working Pressure:
-
2.5 Mpa
-
2nd Stage Working Pressure:
-
70 Mpa
-
1st Stage Oil Displacement Per Stroke:
-
16.22 ml
-
2nd Stage Oil Displacement Per Stroke:
-
2.46 ml
-
Outlet Size:
-
NPT 3/8
-
Oil Tank Capacity:
-
2.2 L
-
Cylinder Type:
-
Double Acting
Products Description

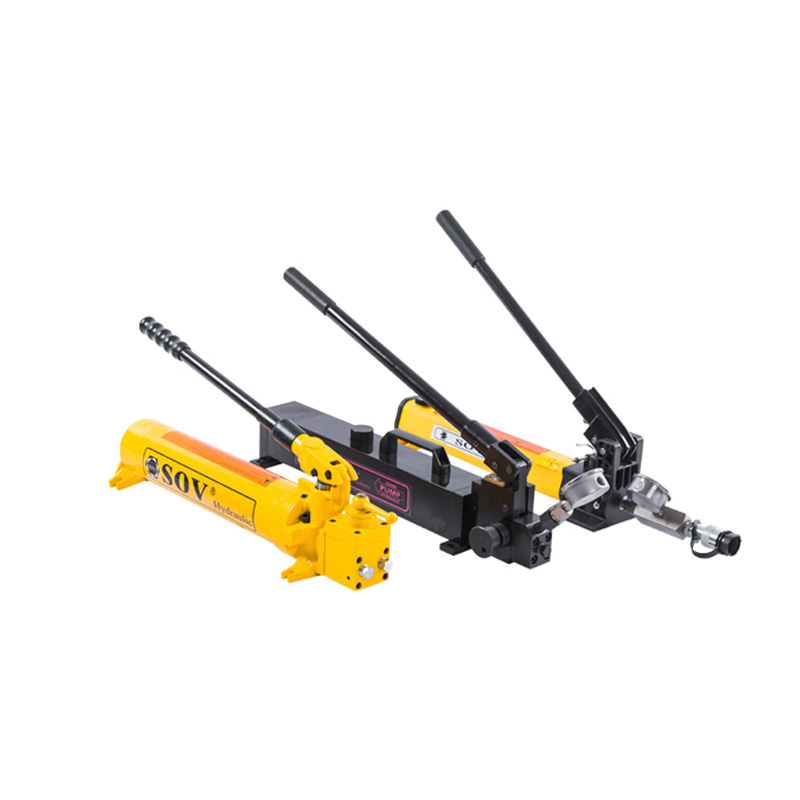

Hydraulic Hand Pump
Hydraulic hand pump is a kind of small high pressure hydraulic pump that can transfer the mechanical power to the hydraulic power, matched with the hydraulic cylinder for lifting the heavy equipment, and also can be matched with the other hydraulic tools for bending, cutting, assembling, dismantling etc.
Details Images
PRODUCT SPECIFICATIONS
|
Working Pressure
(MPa)
|
|
Oil Disp. per Stroke
(ml)
|
|
Output Coupling
|
Oil Tank Capacity
(L)
|
|||
|
|
1st Stage
|
2nd Stage
|
1st Stage
|
2nd Stage
|
|
|
||
|
SOV-P-80
|
2.5
|
70
|
16.22
|
2.46
|
NPT3/8''
|
2.2
|
||
