1.Tilting vertical arm with pedal control
2.Pneumatic system for locking the operating arm
3.28" turntable
4.Bead-breaker with double effect pneumatic cylinder
5.Oversize body
6.Extractable pedal unit
7.Double turntable speed for 3PH
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP- 304B
-
Warranty:
-
18 Months
-

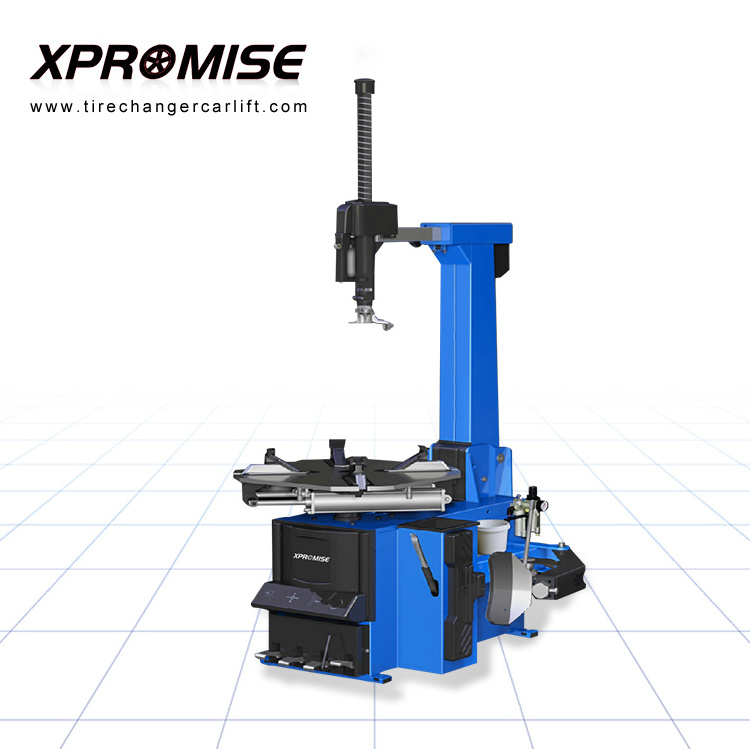

Product name:
-
Tire Changer Machine
-
Rim clamping:
-
12" - 30"
-
Max. wheel diameter:
-
1200 mm (47")
-
Power supply:
-
220V/380V
-
Max. spindle torque:
-
1200Nm
-
Max. inflating pressure:
-
3.5 bar (50 psi)
-
Gross weight:
-
310kg
-
Color:
-
Customer Request
Quick Details
-
Motor Power:
-
0.8kw/1.1kw
-
Operating Pressure:
-
3.5bar
-
Power Supply:
-
220V/380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP- 304B
-
Warranty:
-
18 Months
-
Product name:
-
Tire Changer Machine
-
Rim clamping:
-
12" - 30"
-
Max. wheel diameter:
-
1200 mm (47")
-
Power supply:
-
220V/380V
-
Max. spindle torque:
-
1200Nm
-
Max. inflating pressure:
-
3.5 bar (50 psi)
-
Gross weight:
-
310kg
-
Color:
-
Customer Request
Product Description
Specification
|
item
|
value
|
|
Motor Power
|
0.8kw/1.1kw
|
|
Operating Pressure
|
10bar
|
|
Power Supply
|
220V/380V
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
XPROMISE
|
|
Model Number
|
XP-304B
|
|
Warranty
|
18Months
|
|
Product name
|
Tire Changer Machine
|
|
Rim clamping
|
12" - 30"
|
|
Max. wheel diameter
|
1200 mm (47")
|
|
Max. wheel width
|
450 mm (17")
|
|
Bead-breaker cylinder force at 10 bar
|
3000 kg
|
|
Max. spindle torque
|
1200Nm
|
|
Packing dimension
|
1160L x 960W x 1050H
|
|
Gross weight
|
310kg
|
Details Images
2.New self-locking shaft structure
3.International new integrated auxiliary arm
4.Add large alloy gear turbine box5.SMC oil water separator is adopted
6.The jaw position of the working plate is adjustable in three stages, with self-centering function
7.pull foot control assembly, easy maintenance imported material gas valve
8.High strength alloy steel working head and jaw
9.3000kg aluminum alloy material large cylinder
10.Drawer type foot valve structure is adopted
11.Imported material gas valve
12.Wanda S2 industrial grade aluminum shelll copper core motor
13.Imported gas pipe, high pressure resistance aging resistance, long service life
14.Box structure design is reasonable, solid and stable easy maintenance
