Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ruili Stone
-
Dimension(L*W*H):
-
680*580*1100MM
-
Drum diameter:
-
426mm
-
Product name:
-
Road Roller
-
Brand:
-
Ruili Stone
-
Oil pump:
-
304 left-handed
-
Compacted asphalt:
-
10cm
-
Vibration mode:
-
Clutch vibration
-
Driving method:
-
Hydraulic drive
-
Number of cylinders:
-
3 cylinders
-
Walking speed:
-
0-8KM/H
-
Climbing ability:
-
30°/35°/40°
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Type:
-
Tire Roller
-
Power:
-
4kw, 3.68kw, 5.7kw, 8.6kw, 12kw, 29kw, 28.5kw
-
Weight:
-
3 Ton
-
Engine Brand:
-
CHANGCHAI
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ruili Stone
-
Dimension(L*W*H):
-
680*580*1100MM
-
Drum diameter:
-
426mm
-
Product name:
-
Road Roller
-
Brand:
-
Ruili Stone
-
Oil pump:
-
304 left-handed
-
Compacted asphalt:
-
10cm
-
Vibration mode:
-
Clutch vibration
-
Driving method:
-
Hydraulic drive
-
Number of cylinders:
-
3 cylinders
-
Walking speed:
-
0-8KM/H
-
Climbing ability:
-
30°/35°/40°
-
After-sales Service Provided:
-
Online Support
Product Introduction
Roller is a type of road construction equipment, belonging to the category of road equipment in engineering machinery. It is widely used for filling and compaction operations in large-scale engineering projects such as high-grade highways, railways, airport runways, dams, sports fields, etc. It can compact sandy, semi viscous, and cohesive soils, roadbed stabilized soil, and asphalt concrete pavement layers. The roller is suitable for various compaction operations due to the gravity of the machinery itself, causing permanent deformation and compaction of the compacted layer.
Product Parameters
|
Model
|
Engine
|
Deadweight
|
Excitation Force
|
|
450Single wheel
|
Bailitong/Honda 160
|
280KG
|
5KN
|
|
450Double wheel
|
Chang Fa 178 (Electric Start)
|
400KG
|
18KN
|
|
600Handheld single wheel
|
Honda 160/Chang Fa 173 (Electric Start)
|
330KG
|
16KN
|
|
600Double wheel (air-cooled)
|
Chang Fa 178 air-cooled (electrically started)
|
550KG
|
20KN
|
|
600Twin wheels(water-cooled)
|
Chang Chai 180
|
580KG
|
20KN
|
|
600 Seats
|
Chang Fa 178 (electrically started)
|
600KG
|
20KN
|
|
Handheld 700 single wheel
|
Chang Fa 178
|
500KG
|
25KN
|
|
700 Seats
|
Chang Fa 178
|
700KG
|
25KN
|
|
700Seats(water-cooled)
|
Chang Fa 180
|
700KG
|
25KN
|
|
800 Seats
|
Chang Fa 186
|
700KG
|
25KN
|
|
900 Seats
|
Chang Fa 186
|
800KG
|
25KN
|
|
1.5T
|
Chang Fa 188
|
1200KG
|
30KN
|
|
1.6T Fully hydraulic
|
Chang Chai 192
|
1300KG
|
30KN
|
|
2T Horizontal bar fully hydraulic
|
Chang Chai 390
|
1850KG
|
35KN
|
|
2T Full Hydraulic Chang Chai (National III)
|
Chang Chai 390 (National III)
|
2000KG
|
35KN
|
|
2.5T Chang Chai (National III)
|
Chang Chai 390
|
2200KG
|
30KN
|
|
2.5T three cylinder (upgraded version)
|
Chang Chai 390
|
2100KG
|
43KN
|
|
3T（1.2m）
|
Chang Chai 390
|
2500KG
|
45KN
|
|
3.5T rear rubber wheel
|
Chang Chai 390
|
3500KG
|
50KN
|

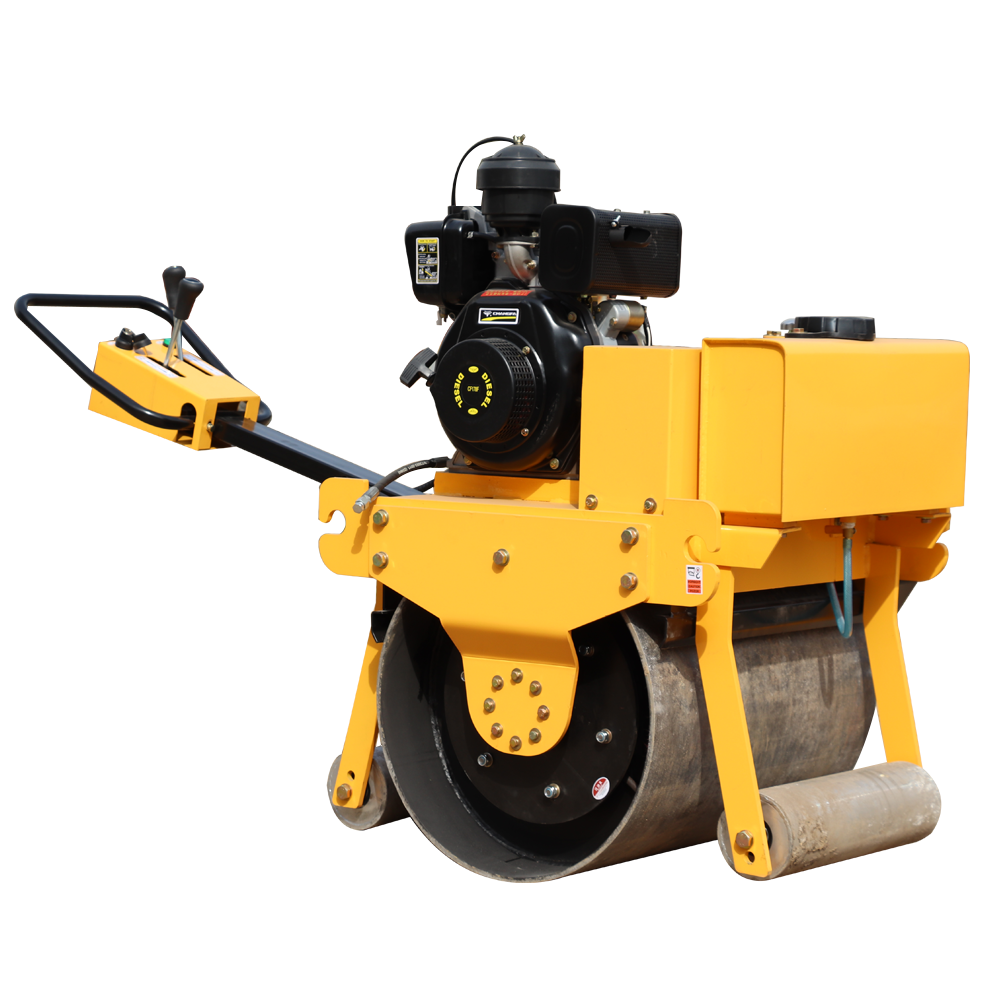

Product Show
Product Features
E
xcellent Performance
The Chang Chai ZN390B diesel engine meets the national third emission standard. Brand quality assurance, superior performance, and strong power. Optional imported Kubota engine from Japan.
Articulated Frame
The front and rear frames are hinged, with a large swing angle and less prone to overturning. Hydraulic power steering, lightweight steering.
·
Brand cycloidal hydraulic motor, front and rear dual wheel drive for walking, with strong climbing ability.
·
Electric control pressure atomization water spraying system, atomization water outlet, one click switch, more uniform spraying of alcohol.
Articulated Frame
Front wheel hydraulic vibration, stable performance, strong compaction ability. Support customized front and rear wheel dual vibration, which can be controlled separately.
Product Details
01.
Dual LED front and rear for efficient lighting, making night construction more convenient.
02.
A roller equipped with a scraper device can keep the wheels clean during compaction.
03.
Articulated links, flexible steering easy and fast transitions.
04.
Rear flat rubber wheel, kneading the ground for higher compaction density.
