Quick Details
-
Voltage:
-
220v
-
Rated Power:
-
7.5KW
-
Dimension(L*W*H):
-
1500mm*1500mm
-
Weight (KG):
-
350 KG
-
Year:
-
2020
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Product name:
-
CNC Plasma Metal Cutting Machine
-
Control system:
-
CNC Controller
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Cutting speed:
-
0-6000mm/min
-
Plasma power:
-
60A/100A/120A/160A/200A Power
-
Software:
-
Star Cam (optional Fastcam Software)
-
Working area:
-
1.2m*1.2m
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
Gaochuang
-
Model Number:
-
GCT1212
-
Voltage:
-
220v
-
Rated Power:
-
7.5KW
-
Dimension(L*W*H):
-
1500mm*1500mm
-
Weight (KG):
-
350 KG
-
Year:
-
2020
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Product name:
-
CNC Plasma Metal Cutting Machine
-
Control system:
-
CNC Controller
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Cutting speed:
-
0-6000mm/min
-
Plasma power:
-
60A/100A/120A/160A/200A Power
-
Software:
-
Star Cam (optional Fastcam Software)
-
Working area:
-
1.2m*1.2m
-
Certification:
-
CE ISO

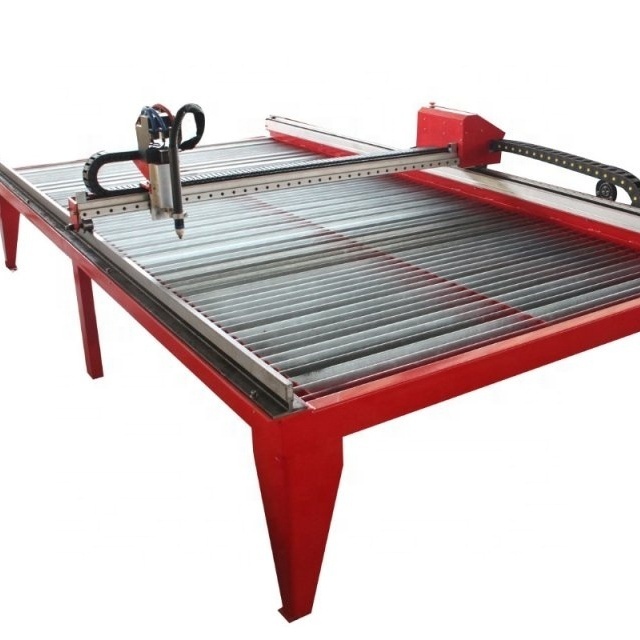

Small table cnc plasma cutting machine
Products Description
Small table cnc plasma cutting machine is high-speed, precision, compact integrated into the CNC cutting machine, It is specialized for carbon steel plate, aluminum plate, copper plate, stainless steel plate and other metal plates in any graphics fast plasma cutting. Usually, there is no need to undertake the surface processing after cutting, effectively, without dross and
burrs. It can instead of the punching processing, This product with a high degree of automation, high reliability, high precision, low price, easy operation and maintenance, etc. This product is especially suitable for automatic cutting of medium and thin non-ferrous metal plates , it widely used in machinery manufacturing, auto parts, hardware products, sports equipment, advertising and other industries with a highly cost-effective.
burrs. It can instead of the punching processing, This product with a high degree of automation, high reliability, high precision, low price, easy operation and maintenance, etc. This product is especially suitable for automatic cutting of medium and thin non-ferrous metal plates , it widely used in machinery manufacturing, auto parts, hardware products, sports equipment, advertising and other industries with a highly cost-effective.
Specification
optional part
Automatic ignition device
. Mechanical type Capacitance type,arc pressure type automatic lifting device
. 3-line perforation device
. Weak-strong flame conversion device
. Powder spraying line device
. Linear cutting torch
. Edge anti-falling straight -line three cutting torch
. Plasma power source
. Plasma cutting device underwater
. Track and cutting torch can be customized
. Mechanical type Capacitance type,arc pressure type automatic lifting device
. 3-line perforation device
. Weak-strong flame conversion device
. Powder spraying line device
. Linear cutting torch
. Edge anti-falling straight -line three cutting torch
. Plasma power source
. Plasma cutting device underwater
. Track and cutting torch can be customized
|
Model
|
GCT-1212
|
|
Power source
|
AC 220±10%VAC 50/60Hz
|
|
Cutting mode
|
Plasma
|
|
Effective cutting range(mm)
|
1200mm*1200mm or customized
|
|
Cross beam width*guide rail length (mm)
|
1500*1500mm
|
|
Cutting speed mm/min
|
2000-6000mm/min
|
|
Plasma Cutting thickness (mm)
|
2-30mm
|
|
Move precision
|
±0.2mm/m
|
|
Torch
|
electric height adjustment(±60mm)
|
|
Cutting system
|
Start control system
|
|
Host weight(kg)
|
50
|
|
Total weight(kg)
|
350
|
|
Emergency stop
|
Yes
|
|
Working temperature
|
-5~45℃
|
|
Power
|
7.5kw
|
|
Plasma power
|
63/100/120/160/200/300/400A
|
|
ARC
|
Untouched arc striking
|
|
Processing Materials
|
Iron, steel aluminum sheets, galvanized sheets, Titanium plates
|
Our Advantages
.
1) Simple structure ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Compact design, can cut by complex 2D shapes and supports oxy-fuel and plasma cutting. Is an ideal equipment for the small and
medium-scale enterprises and applies to cut the industrial metallic and nonferrous metal material both indoors and outdoors.
4) The table CNC cutting machine is equiped with FastCAM or StarCAM or other programming software,which based on AutoCAD drawing.
the software is easy to learn and can automatically convert the AutoCAD drawings into G-code file, and then transfer G-gode file
into CNC cutting machine by USB key.ctive.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Compact design, can cut by complex 2D shapes and supports oxy-fuel and plasma cutting. Is an ideal equipment for the small and
medium-scale enterprises and applies to cut the industrial metallic and nonferrous metal material both indoors and outdoors.
4) The table CNC cutting machine is equiped with FastCAM or StarCAM or other programming software,which based on AutoCAD drawing.
the software is easy to learn and can automatically convert the AutoCAD drawings into G-code file, and then transfer G-gode file
into CNC cutting machine by USB key.ctive.
Cutting samples
Shandong Gaochuang CNC Equipment Co.Ltd
1. Located in shandong, china -- CONFUCIUS HOMETOWN (The famous WORLD great thinker, educator, politician.)
2: Belong to Heavy duty machine industry. (cnc cutting machine field)
3. Leading Machinery Factory/ Shandong The Largest OEM Manufacturer
4. Specilized manufacture team, installation team,testing team and professinal R&D teams
5 :Long time OEM service experiences, Factory directly supply , here you can enjoy the best price and competitive price.
Customer designes and requirments are welcome , here you can enjoy the one-stop service .
6. export to 60 countries from all the world like korea, india, canada, france, brazil , russia, Kazakhstan ,uk,usa, mexico etc
7. Main Products: portable cutting machine, table cutting machine, gantry cutting machine, various type welding machine etc
8. 24 hours hotline open for you , solving he problem immediatly against received your email, call ,or messages.
9. welcome order from domestic and overseas.
1. Located in shandong, china -- CONFUCIUS HOMETOWN (The famous WORLD great thinker, educator, politician.)
2: Belong to Heavy duty machine industry. (cnc cutting machine field)
3. Leading Machinery Factory/ Shandong The Largest OEM Manufacturer
4. Specilized manufacture team, installation team,testing team and professinal R&D teams
5 :Long time OEM service experiences, Factory directly supply , here you can enjoy the best price and competitive price.
Customer designes and requirments are welcome , here you can enjoy the one-stop service .
6. export to 60 countries from all the world like korea, india, canada, france, brazil , russia, Kazakhstan ,uk,usa, mexico etc
7. Main Products: portable cutting machine, table cutting machine, gantry cutting machine, various type welding machine etc
8. 24 hours hotline open for you , solving he problem immediatly against received your email, call ,or messages.
9. welcome order from domestic and overseas.
