Quick Details
-
temp range:
-
20--170C
-
life time:
-
100000 cycle life time
-
contact type:
-
normal closed or normal opened
-
body material:
-
bakelite or ceramic
Quick Details
-
Place of Origin:
-
china
-
voltage:
-
250V-400V
-
current:
-
20A-70A
-
temp range:
-
20--170C
-
life time:
-
100000 cycle life time
-
contact type:
-
normal closed or normal opened
-
body material:
-
bakelite or ceramic

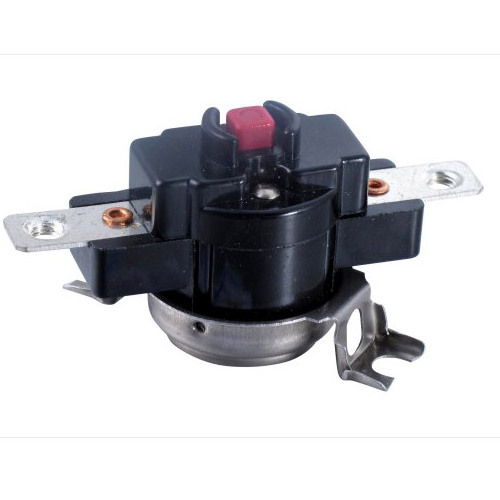

KSD302 Thermostat 250v 25a Temperature Control Switch for Electric Oven
Description:
Thermostat 3/4'' (19mm) is quality & ideal thermal sensor, and the KSD302 series of 3/4" bimetal disc thermostats as high current heater thermostat offers proven reliability in a versatile, cost-effective design. Available with thermostat of manual reset SPST or automatic SPDT switch configurations.
Snap action disc thermostat for high speed contact separation, resulting in exceptional life characteristics. These are available in Normally open (NO) or Normally Closed (NC) versions.
A wide variety of terminal and mounting configurations are available for maximum design flexibility. This unsurpassed flexibility and time proven reliability , has made thermostat 3/4'' the most popular and widely applied thermostat in the major appliance and heating/air conditioning industries such as welding machine and instant water heater machine.
Product specification
|
Use |
Temperature control/Overheat protection |
|
Appliance |
electric equipments and home appliances with higher power and electric load, such as Welder, Water Heater, Home Laundry, Clothes Dryer |
|
Reset type |
auto reset&Manual reset |
|
Base material |
Ceramic,bakelite |
|
Amperage |
5A-70A |
|
Max. Operating Temperature |
160°C |
|
Tolerance |
±3ºC;±5ºC;±8ºC;±10ºC |
|
Protection class |
IP00 |
|
Terminal type |
horizontal;vertical;135° |
| Certificate | TUV CQC UL CUL |
Supervalu service:
1. We have rich experience of OEM&ODM, factory can manufacture according to your request.
2. custom-made label is accept.
3. Warranty: 12 months from shipping date
4. Free samples is accept.
FAQs
1. Why I choose you?
A: Factory;ISO9001/UL/VDE/TUV/CE/CK/SGS;automation production line;15 year;s manufacture experience.
2. What are your main products?
A: KSD301;KSD302;BW/KSD9700;BH;TB02;17AM;17AMC;fuse;ect.
3. Warranty:
A: 12 months
4. How do you ensure good product quality?(quality control)
A: All products are thoroughly tested in-house with our vast array of calibration and special testing equipment (like Fluke PPC4 (Pneumatic Pressure controller/Calibrators)). Our testing process is conducted in accordance with a strict quality control system.
6. How fast can you deliver goods (Delivery time)?
A: Standard products are in stock. 3-10days short delivery time.
7.What's your MOQ?
A: free samples is accept.200PCS for mass order
8. What express ways can you offer, can we use our own courier?
A: DHL,FedEx;UPS;TNT.Customer account is accept.
