Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HYSIK
-
Model Number:
-
M8 Connector
-
IP rated:
-
IP67
-
Rated Volgate:
-
30v/60V
-
Rated Current:
-
1.5A/4A
-
Contact Resistance:
-
<5mΩ
-
shielded:
-
Yes
-
Connector type:
-
Straight/Right angled
-
Keywords:
-
M8 panel mount connector
-
Certificate:
-
CE/Rohs/IP67
-
Contacts:
-
3 4 5 6 8 Position
-
Screw/Nut:
-
Plastic/Brass/Stailness steel
Quick Details
-
Type:
-
M8 series
-
Application:
-
Electronic/Motor/Sensor/automation factory
-
Gender:
-
Female and Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HYSIK
-
Model Number:
-
M8 Connector
-
IP rated:
-
IP67
-
Rated Volgate:
-
30v/60V
-
Rated Current:
-
1.5A/4A
-
Contact Resistance:
-
<5mΩ
-
shielded:
-
Yes
-
Connector type:
-
Straight/Right angled
-
Keywords:
-
M8 panel mount connector
-
Certificate:
-
CE/Rohs/IP67
-
Contacts:
-
3 4 5 6 8 Position
-
Screw/Nut:
-
Plastic/Brass/Stailness steel
About Hysik Electronics
Shenzhen Hysik Electronics Co. Ltd
is an innovative corporation which is dedicated to providing high quality connectivity products to customers.
Our Product Ranges
Standard products (M5, M8, M12, 7/8",M16, M23), waterproof IP68 connectors, valve connectors, AISG cables and connectors that comply to IEC and IEEE. Our products are mainly used in the fields of industry, automation, IoT, telecommunication, automotive, energy and marine.
We are able to offer tailor-make solutions that suit the need of our customers from initial ideals to finished products to meet either standard or harsh environment signal and power transmission application. Our wide range of metric circular connectors and cable assembly fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Our Product Ranges
Standard products (M5, M8, M12, 7/8",M16, M23), waterproof IP68 connectors, valve connectors, AISG cables and connectors that comply to IEC and IEEE. Our products are mainly used in the fields of industry, automation, IoT, telecommunication, automotive, energy and marine.
We are able to offer tailor-make solutions that suit the need of our customers from initial ideals to finished products to meet either standard or harsh environment signal and power transmission application. Our wide range of metric circular connectors and cable assembly fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Product Description

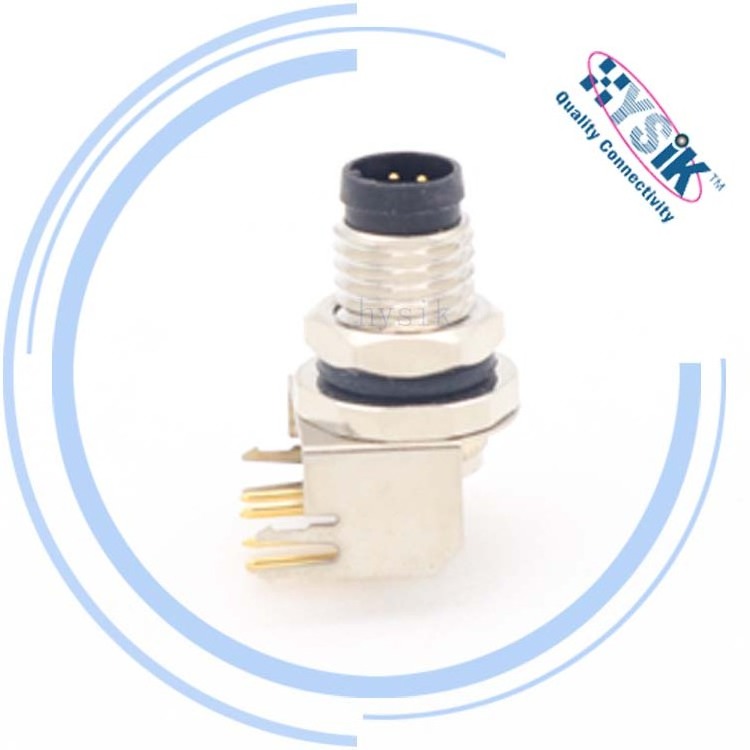

Hysik Electronics M8 Connectors & Cable Assemblies are small, industrial M8 connectors developed to meet the demand for increased signal carrying capabilities in space-saving designs. M8 Connectors & Cable Assemblies offer 1.5A-4A rated current, 30A-60V voltage, and ≥ 100 MΩ insulation resistance. M8 Connectors & Cable Assemblies provide IP65/IP67 protection and meets IEC 61076-2-104 standards with a surge voltage category II and Pollution degree of 3. The M8 series is available in M8 male and female panel mount connectors,M8 cable assemblies,M8 splitter cable,M8 adapter.it widely use in actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and in HVAC system valves.
|
Connector Type
|
M8 Connector
|
|
Poles
|
2 3 4 5 6 8 Poles
|
|
Cable materials
|
High temp PUR,UL2464 PVC,Coild cable
|
|
Cable Jacket color
|
Blakc,Bule,Yellow,orange (customized)
|
|
Cable OD
|
2.8mm-6.0mm(customized)
|
|
Termination
|
Solder/Screw/Dip PCB
|
|
Coupling
|
Quick Locking/Threaded coupling
|
Feature
M8 2 3 4 5 6 8 12 Pin A B D coded molded cables and connectors
1. Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3.Soldering connection: proven connection technology for a large selection of different conductors
4.M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5.2 3 4 5 6 8 12 poles are available .(High temperature 260 degree ,solder reflowing )
6.90 degree angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
7:Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3.Soldering connection: proven connection technology for a large selection of different conductors
4.M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5.2 3 4 5 6 8 12 poles are available .(High temperature 260 degree ,solder reflowing )
6.90 degree angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
7:Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.
