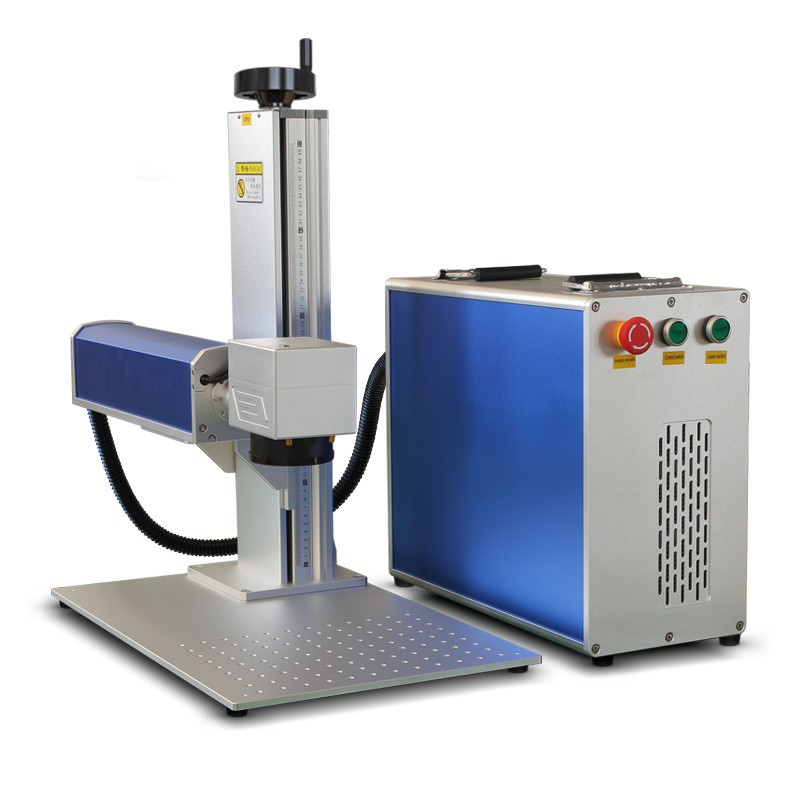

Small Fiber Laser Marking Machine 20w 30w for Lighter Keyboard Headphone Mini Laser Marker Engraving Machine

Small Fiber Laser Marking Machine 20w 30w for Lighter Keyboard Headphone Mini Laser Marker Engraving Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $786

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: Air Cooling

Control Software:: EZ CAD

Place of Origin:: Shandong, China

Weight (KG):: 35 KG

Product name:: Fiber Laser marking machine

Laser Power:: 20W,30W,50W,60W,70W,100W

Marking Speed:: 0-7000mm/s

Laser wavelength:: 1064nm

Marking Depth:: 0.01-0.2mm

Working area:: 110*110mm/ 150*150mm/ 200*200mm/ 300*300mm

Minimum line width:: 0.013mm

Power supply:: AC220V/50Hz

Laser source:: IPG Raycus Max JPT

Accuracy:: +-0.001mm

Quick Details

Working Accuracy:: 0.001mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Laser Type:: Fiber Laser

Cooling Mode:: Air Cooling

Control Software:: EZ CAD

Place of Origin:: Shandong, China

Weight (KG):: 35 KG

Product name:: Fiber Laser marking machine

Laser Power:: 20W,30W,50W,60W,70W,100W

Marking Speed:: 0-7000mm/s

Laser wavelength:: 1064nm

Marking Depth:: 0.01-0.2mm

Working area:: 110*110mm/ 150*150mm/ 200*200mm/ 300*300mm

Minimum line width:: 0.013mm

Power supply:: AC220V/50Hz

Laser source:: IPG Raycus Max JPT

Accuracy:: +-0.001mm

Product Description

Small Fiber Laser Marking Machine 20w 30w for Lighter Keyboard Headphone Mini Laser Marker Engraving Machine Product descriptions : 1. Humanized design: We taken full consideration of the user experience to improve work efficiency and simplify operations of the laser etching metal machine. 2. High-quality laser source: Raycus MAX JPT laser, stable laser beam, smooth and fine marking lines. 3. High-speed marking: shorten the time for processing the workpiece, and increase the order per unit time. 4. High-efficiency electro-optical conversion: zero-power coupling loss, no consumables, and no maintenance. 5. 10 years of operation life: this fiber laser etching machine for metal can meet the requirements of 24-hour continuous and stable processing. 6. High performance, high reliability control system: friendly interface, stable and reliable system. 7. Low power consumption: low cost, only 0.5 kW/h.

Fiber Laser Marking Machine - Main Features:
* Laser Source: Raycus / JPT / IPG / MAX brand.
* Control Card: Original EZCAD 2 / EZCAD 3 version.
* Laser Power: 20w 30w 50w 60w 70w 100w,etc.
* Marking Area: 110*110mm / 150*150mm/ 175*175mm/200*200mm/300*300mm.
* Galvo Head: Sino-galvo. Small Fiber Laser Marking Machine Mini Laser Marker Engraving Machine for Sale
* Column Stand: Manual / Electric , 50cm / 68cm / 80cm.
* Optional Rotary Fixture: 69mm, 80mm,etc.
* Cyclops Camera optional: Camera can automatic recognize the marking position.
* More optional Parts: Conveyor table / Electric XY table.

· Motorized Z-axis lifting. We updated the manual wheel, knob control the UP and DOWN.

· Genuine BJJCZ control board card

Raycus,MAX,JPT laser source for option.

High quality galvo scanner with response speed is less than 0.3ms. Double red dots easy for focusing.

High quality electrical components, Taiwan MEAN WELL power switch, Chint Electric, stable and long working life.

EZCAD Control Software

*Control laser marking parameters, such as laser power, laser speed, pulse width, engraving times, etc.
*Support import vector and bitmaps.
*Red light preview or frame preview before engraving.
*Multiple engraving filling density and filling methods.
*Support Windows computer system.
*Easy to use.

There are models for your option:

Please contact with Betty for more info and detailed quotation:

Wechat&Whatsapp +8613181068223

Specification

Machine name	Laser Marking Machine
Laser source	JPT (RAYCUS or MAX or IPG)
Laser power	20W 30W 50W 60W 80W 100W,etc. (optional)
Laser wavelength	1064nm
Marking depth	0~2.0 mm (Depends on metal material and Marking time)
Marking speed	8000mm/s
Marking minimum character	0.1x0.1mm
Repeatability accuracy	±0.02 mm
Marking content	text, logo,pattern, date, bar code,pictures etc
Control software	EZCAD 2
Software Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, DXF, DST, etc.
Machine cooling type	Air cooling
Machine power supply	AC110V 60HZ AC220V 50HZ
Machine weight	40~45KG
Machine warranty	24 months

Accessories

Optional parts:
1. 80 rotary: it is used to mark curved surfaces, such as pipes, pens, cylinders, ring objects
2. jewelry ring rotary: It is mainly used for jewelry rings and jewelry bracelets
3. XY table / XYZ table: You can manually move in the XY direction without moving the workpiece
4. Pen rotary table: It is mainly used to engrave multiple parts, such as pens
5. Smoke purifier
6. Metal holder: when cutting the metal sheet to fix the metal sheet

Sample

Application material : 20w 30w suit for metal plastic surface marking. 50w 60w 80w 100w more suitable for deep engraving and metal cutting. Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard. Apparatus And Meter: Panel signs, precision equipment ,etc., Instrument: Panel signs nameplates, precision equipment ,etc., Hardware Tools : Knives, tools, measuring tool, cutting tool, etc., Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc., Mechanical Parts : Bearings, gears, standard parts, motors, etc., Daily Necessities : Handicrafts, zipper, key holder, sanitary ware, etc., Jewelry Rings:Jewelry, gold, silver,etc. Food, drinking packing: Plastic packings,etc.

Fiber Mopa Laser Color Marking (only stainless steel )

Packing & Delivery

(1)Inner: plastic stretch film and white foam. Plastic stretch film winding equipment for Moisture Resistance. White Foam filling is used to tighten the laser. (2)Middle: small pieces of wood and screws. (3)outside: standard export wooden case. Finally, label the destination country and product number.
