Quick Details
-
Top Diameter:
-
10-600mm
-
Bottom Diameter:
-
40-1000mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
kessen
-
Model Number:
-
KS101
Quick Details
-
Type:
-
Refractory
-
Application:
-
Melting Metal
-
Height:
-
Customers' Requests
-
Top Diameter:
-
10-600mm
-
Bottom Diameter:
-
40-1000mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
kessen
-
Model Number:
-
KS101

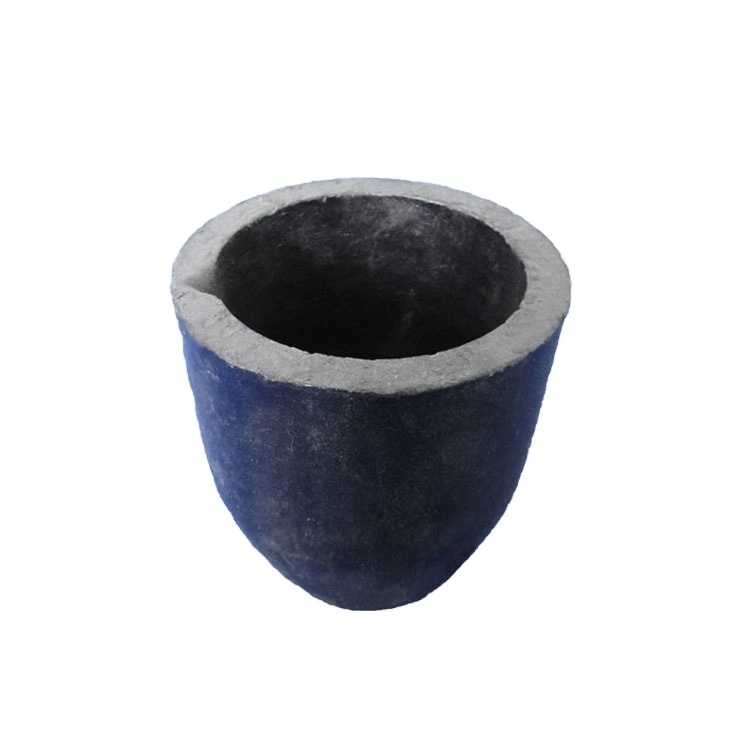

Applications The crucible is suitable for melting such metals as copper, gold ,silver, zinc, aluminium , lead .etc.
Also represents capacity of molten copper in kiln.
Characteristic Of Products
High-temperature resistance, anti-oxidation, corrosion resisting, abrasion resistance, good conductivity and thermal efficiency.
Mainly used in the various powder sintering and metal smelting in the fields of metallurgy, chemical industry and glass
and used as the dewatering and various grinding elements in paper making industry, which are broadly applied and are ideal ceramic substitutes.
Technical Index
| Graphite crucible | SiC crucible | |
| Content |
SiC:1-40% C:20-50% Al2O3:2-45% SiO2:3-38% |
Si,SiC:50- 60% C:25-35% Al2O3:3-10% |
| Density | 2.30 g/cm3 | 2.0-2.2g/cm3 |
| Apparent porosity | ≤30% | 14-19% |
|
Max service
temp |
1750°C | 1780°C |
|
Catalogue
Number |
TOP Dia (mm) |
BOTTOM Dia
(mm) |
Height (mm) |
| KS-G-1 | 70 | 50 | 80 |
| KS-G-4 | 110 | 80 | 130 |
| KS-G-6 | 120 | 83 | 150 |
| KS-G-10 | 160 | 110 | 180 |
| KS-G-20 | 215 | 160 | 260 |
| KS-G-40 | 250 | 180 | 290 |
| KS-G-50 | 265 | 185 | 300 |
| KS-G-80 | 295 | 205 | 370 |
| KS-G-100 | 330 | 220 | 400 |
| KS-G-120 | 345 | 245 | 460 |
| KS-G-150 | 385 | 270 | 520 |
| KS-G-200 | 410 | 285 | 560 |
| KS-G-250 | 440 | 285 | 590 |
| KS-G-300 | 460 | 310 | 580 |
| KS-G-350 | 470 | 310 | 650 |
| KS-G-400 | 520 | 350 | 640 |
| KS-G-500 | 525 | 350 | 700 |
| KS-G-600 | 570 | 360 | 760 |
| KS-G-800 | 560 | 360 | 800 |
Package
Carton,Plywood
Shipping
We can supply you the translation methods whatever you want.
--By express (DHL/Fedex/etc.)
--By Air to your nearest Airport
--By Sea to your nearest Seaport
--By the sellers’ shipping agent
Our products are warranted to be free from defects in materials or workmanship for 6months from the date of purchase. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
1.Your inquiry related to our products or prices will be replied within 24hours
2. Guarantee samples quality same as mass production quality
3. Offering the support to solve the problem in the application or selling period.
4. Competitive prices based on same quality.
