Quick Details
-
Center Height (mm):
-
120 mm
-
Max.Transformer Capacity(kVA):
-
2 kVA
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Crown
-
Weight (KG):
-
90
-
Wire Diameter Range (mm):
-
0.12 - 0.9 mm
-
Model Number:
-
WL-2610
-
Winding method:
-
side slip type
-
Finished outer diameter:
-
30/80
-
Minimum finished inner diameter:
-
18
-
Final completion height:
-
40
-
Suitable winding diameter range:
-
0.12-0.5
-
Storage ring diameter:
-
180
-
Storage ring width:
-
3-6
-
Maximum speed:
-
800 rpm
-
Working voltage:
-
220V/50Hz
Quick Details
-
Max. Load (KG):
-
50 KG
-
Coil Type:
-
Copper
-
Length of Axis (mm):
-
100 mm
-
Center Height (mm):
-
120 mm
-
Max.Transformer Capacity(kVA):
-
2 kVA
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Crown
-
Weight (KG):
-
90
-
Wire Diameter Range (mm):
-
0.12 - 0.9 mm
-
Model Number:
-
WL-2610
-
Winding method:
-
side slip type
-
Finished outer diameter:
-
30/80
-
Minimum finished inner diameter:
-
18
-
Final completion height:
-
40
-
Suitable winding diameter range:
-
0.12-0.5
-
Storage ring diameter:
-
180
-
Storage ring width:
-
3-6
-
Maximum speed:
-
800 rpm
-
Working voltage:
-
220V/50Hz

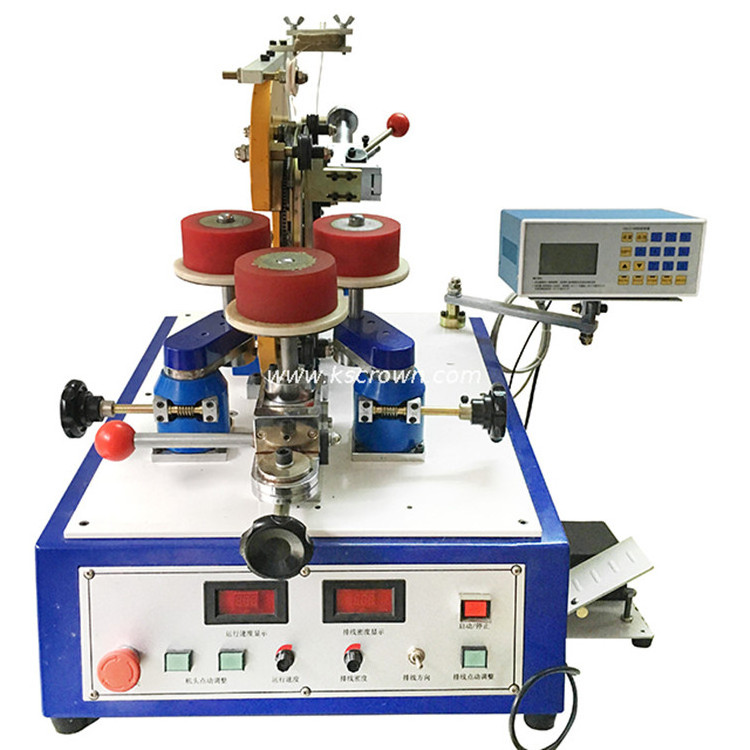

Auto Toroidal Transformer Coil Winder Machine
Introduction:
We bring forth a range of toroidal coil winding machines that are used in the winding applications of various types of coils, such as dimmer transformers, CTs, stabilizers, sound amplifiers, etc. These machines are manufactured using premium quality components using cutting edge technology. We also stringently test these machines to ensure them meet the international industrial norms.
Technical parameter:
| Model | WL-2610 | WL-2630 | WL-2631 | WL-2700 | WL-2800 |
| Winding method |
side slip type |
side slip type |
side slip type |
side slip type |
side slip type |
| Finished outer diameter | 30/80 | 60/120 | 60/120 | 60/200 | 60/200 |
| Minimum finished inner diameter | 18 | 30 | 35 | 35 | 50 |
| Final completion height | 40 | 80 | 80 | 100 | 120 |
| Suitable winding diameter range | 0.12-0.5 | 0.2-0.7 | 0.2-0.7 | 0.2-0.75 | 0.35-0.9 |
| Storage ring diameter | 180 | 195 | 195 | 230 | 260 |
| Storage ring width | 3-6 | 3-8 | 9-12 | 9-15 | 12-18 |
| Maximum speed | 800 rpm | 800 rpm | 800 rpm | 700 rpm | 600 rpm |
| Dimensions |
480×450 ×600 |
500×600 ×700 |
500×600 ×700 |
500×600 ×750 |
500×600 ×800 |
| Weight | 90 kg | 90 kg | 90 kg | 100 kg | 110 kg |
Certifications:
Product show:
Package size and weight
Finished samples for rope, cable coil or cable with firgure 8 shape sample
